High Frame Rate (60fps) for Real-time Surveillance Applications
PLANET ICA-3260 Network Camera with IR Illuminator is a high-resolution camera for the round-the-clock surveillance over IP networks. It supports H.264 and JPEG compression formats and delivers excellent picture quality in Full HD resolutions at 60 frames per second (fps). Incorporating the new Exmor RS CMOS image sensor, which is specially designed for surveillance applications, the ICA-3260 provides high-quality images under all lighting conditions. The IP66-rated housing protects the camera body against rain and dust, and ensures operation under extreme weather conditions, which makes it an ideal solution for outdoor applications, e.g. surveillance of buildings, roads, parking areas, garages, railway stations and airports.
| | | | Day & Night Functionality
To adapt to constantly changing lighting conditions, the ICA-3260 comes with a removable IR-cut filter and built-in low IR illuminators (0.01 lux), which enables the camera to provide color video when there is sufficient light, and black/white video in dark conditions. The ICA-3260 is able to maintain clear images 24 hours a day.
| | | | Exceptional Image Quality

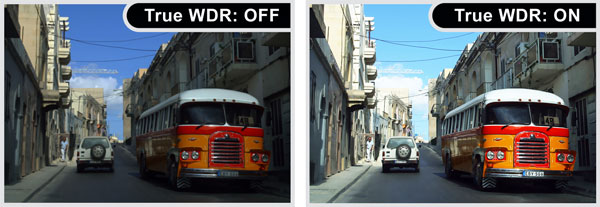

Together with powerful image processing attributes like True Wide Dynamic Range and 3D Digital Noise Reduction (3DNR) technology, the ICA-3260 is able to filter the intense backlight surrounding a subject and remove noises from video signal. It brings an extremely clear and exquisite picture quality even under any challenging lighting conditions.
| | | | | | Face Detection and Cross Line Detection
Face Detection detects face and ignores anything else, such as buildings, cars and bodies. When a suspect enters a targeted area, his face is caught in the camera, thereby triggering an alarm. Cross Line Detection is an application especially suitable for general entrance and exit detection in low traffic areas. It detects objects such as persons and vehicles that cross a defined virtual line.

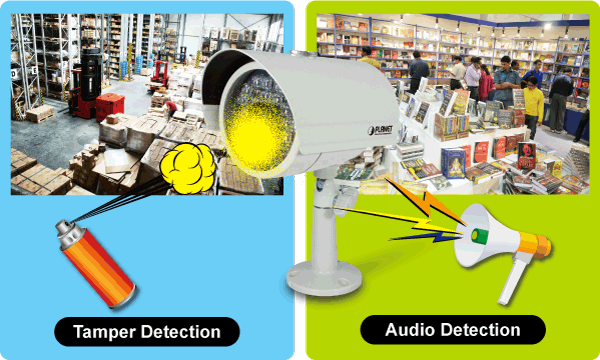

| | | | Camera Tampering and Audio Detection
Provided with three individually configurable motion detection zones, the ICA-3260 can record video or trigger alarms and alerts when motion is detected in user-specified areas of the camera image. Also, its external microphone enables the system to capture the sound that is out of reach of cameras surveillance range and to trigger the audio detection alarm when sounds like screams, glass breaking, etc are detected.
| | | | Advanced Event Management
To enhance surveillance flexibility and event management capabilities, the ICA-3260 supports a number of advanced features including auto-iris to avoid over exposure, AV out to perform the two-way audio function, RS485 to connect to an optional pan/tilt enclosure which effectively supports pan/tilt functionality, and inputs/outputs to connect with external devices such as door sensors and relays to activate light or close doors.
| | | | Flexible Installation and Power Functionality

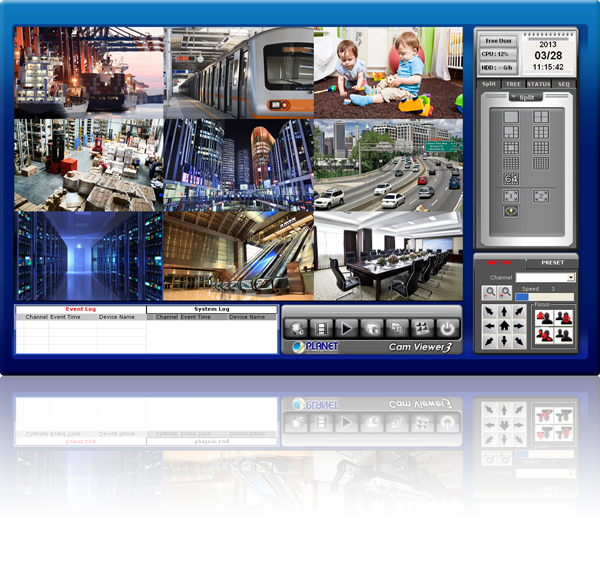

The ICA-3260, incorporating IEEE 802.3af Power over Ethernet standard, is able to be powered via the network cable from a PoE power sourcing equipment such as PoE switch and PoE injector. It thus eliminates the need for extra power cables and reduces installation costs while increases the deployment flexibility. In addition, the ICA-3260 provides advanced features such as the Gigabit Ethernet transmission, giving users the utmost in bandwidth flexibility and storage efficiency. The ICA-3260 is ONVIF compliant and therefore interoperable with other manufacturers products. It also includes 64-CH central management software for ease of maintenance and remote monitoring. The ICA-3260 is indisputably the top choice for reliable and high-performance surveillance.
| | | |

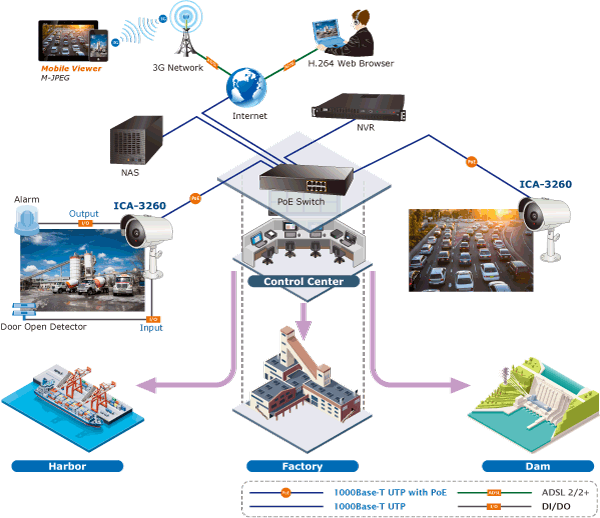

PLANET ICA-3260 can perform in various surveillance applications. With high-resolution design, it can capture clear images and is perfect for identifying objects and persons. Moreover, the ICA-3260 supports 802.3af PoE interface, and facilitates the indoor surveillance applications without worrying the electric source. | | Its Save-to-NAS makes you easy to save your data. Besides, NVR and Web UI management make you easy to do the configuration and live viewing. Moreover, viewing your baby on your smart phone would give you a peace of mind.
Of course, this nice camera supports 802.3af PoE interface and facilitates the outdoor surveillance applications without worrying the electric source. With so many features offered, the ICA-3260 no doubt is your best choice for outdoor surveillance solution.
| | | |
Camera- Sony's 1/2.8 type Exmor RS 2.4MP CMOS sensor
- 4.2mm fixed lens with fixed iris
- Super low lux at 0.01 allows the camera to provide a color live view in near darkness
- Max. resolution 1080P at 60fps
- True WDR Enhancement to enhance visibility under extremely bright or dark environments
- Alarm will be triggered and immediately alerted to user when motion, audio, tampering, and face and cross line detection are detected
- Built-in 24 IR illuminators, effective up to 20 meters
- Removable IR-cut filter for Day & Night function
Video / Audio- H.264 and M-JPEG video compression simultaneously
- H.264 high profile, main profile and baseline
- Simultaneous multi-stream support
- 3DNR to improve picture quality at low lux
- Two-way audio support with enhanced audio quality
Network and Configuration- Compliant with IEEE 802.3af PoE interface for flexible deployment
- Equipped with Gigabit Ethernet port
- Auto MDI/MDI-X supported
- Supports both IPv6 and IPv4
- Built-in Samba client for NAS
- RTSP / UPnP / 3GPP / HTTPS protocols selectable
Easy Installation & Management- ONVIF compliant for interoperability
- IP66 outdoor classifications for rigorous environment
- 3GPP for 3G mobile remote applications
- RS485 interface for P/T scanner control
- Digital Input/Output for integration with sensors and alarms
- Cam Viewer 3 central management software supported
| |
Camera |
Image Device |
1/2.8 type Sony Exmor RS progressive scan CMOS sensor |
Lens |
4.2mm, fixed lens
Mechanical IR-cut filter
Angle of view:
Horizontal: 74 degrees
Vertical: 57 degrees
|
Min Illumination |
0.1 lux (color)
0.01 lux (B/W)
|
IR Illuminations |
IR LED x 24, 850nm
Built-in IR illuminators, effective up to 20 meters
*The IR distance is based on the environment
|
Effective Pixels |
1920 x 1080 pixels (Full HD) |
Image |
Video Compression |
H.264 / M-JPEG |
Video Resolution |
1080P mode
H.264: 1080P / 640 x 480
M-JPEG: 1080P / 640 x 480
1080P mode with WDR
H.264: 1080P / 640 x 480
M-JPEG: 1080P / 640 x 480
|
Frame Rate |
Up to 60fps for all resolutions |
Image Setting |
AE, AWB
3D Noise reduction
True WDR
Color, brightness, sharpness, contrast, hue
Mirror/Flip
10 Privacy Masks
Text, time and date overlay
Overlay image on video
Digital Image Stabilization (DIS)
|
Streaming |
Simultaneous multi-profile streaming
Streaming over UDP, TCP, HTTP, or HTTPS
M-JPEG streaming over HTTP (server push)
Controllable frame rate and bandwidth
AOI
|
Audio |
Audio Streaming |
Two-way audio |
Audio Compression |
RTSP: G.711 64kbps, G.726 32kbps |
Microphone |
External microphone input |
Audio Output |
Adjustable audio output gain |
Network and Configuration |
Standard |
IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3ab 1000BASE-T
|
Protocol |
IPv4, IPv6, TCP, UDP, HTTP, HTTPS, SMTP, FTP, NTP, DNS, DDNS, DHCP, DIPS, ARP, Bonjour, UPnP, RTSP, RTP, RTCP, IGMP, PPPoE, Samba, ICMP, SNMP, QoS |
Security |
Password protection, IP address filtering, HTTPS encrypted data transmission, user access log |
Users |
20 clients on-line monitoring at the same time |
System Integration |
Application Programming Interface |
Open API for software integration
ONVIF Compliant
|
Alarm Triggers |
Intelligent Motion / Tampering / Audio / Face / Cross line detection and external input |
Alarm Events |
File upload via FTP, Samba to NAS, email
Notification via email, HTTP, and TCP
External output activation
Audio alert output
Go to PTZ preset position
|
Video Buffer |
Pre- and post-alarm buffering |
General |
Power Requirement |
12V DC, 1A
IEEE 802.3af Class 3
|
Power Consumption |
8W max. |
Operating Temperature |
-20 ~ 50 degrees C |
Operating Humidity |
5 ~ 95% (non-condensing) |
Weight |
900g |
Dimensions (W x D x H) |
86 x 81 x 97 mm |
Emission |
CE, FCC |

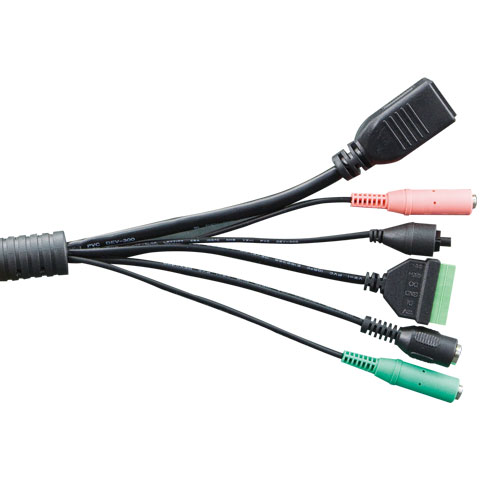

Connectors |
10/100/1000 Mbps Gigabit Ethernet, RJ-45
DC power jack
Terminal block for 1 alarm input and 1 output
RS-485 interface for scanners, pan/tilt
External mic input
Audio out
Factory default reset button
|
