| 硬件特性 |

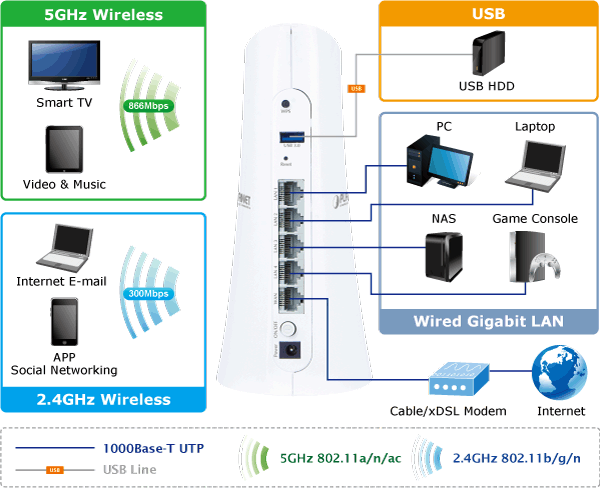

| 端口 |
WAN Port: 1 x 10/100/1000 Mbps Auto MDI/MDI-X RJ45 port
LAN Port: 4 x 10/100/1000 Mbps Auto MDI/MDI-X RJ45 ports (LAN1~4)
USB Port: 1 x USB 3.0, Type A, 5V 900mA
|
| Antennas Gain |
2.4GHz: 2 x 1.8dBi Internal Antenna
5GHz: 2 x 3.8dBi Internal Antenna
|
| 按钮 |
1 x Reset button (Press for about 10 seconds to reset the device to factory default.)
1 x WPS button (Press for 1 second to activate WPS function.) |
| LED指示灯 |
PWR x 1
WLAN (2.4GHz & 5GHz) x 2
WAN x 1
WPS x 1 |
| 材质 |
Plastic |
| 尺寸 |
192x 115 x 90 mm |
| 重量 |
308g
|
| 功率需求 |
12V DC, 2A |
| 功率消耗 |
12W |
| 无线端口特性 |
| 标准 |
IEEE 802.11ac (Draft 2.0) 5GHz
IEEE 802.11a/n 5GHz
IEEE 802.11b/g/n 2.4GHz |
| 频段 |

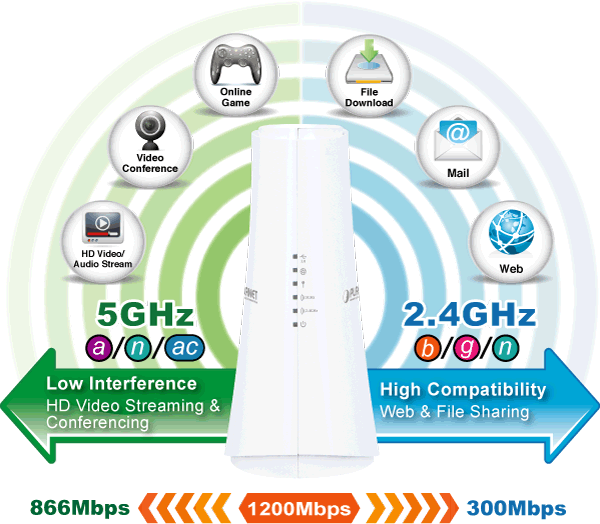

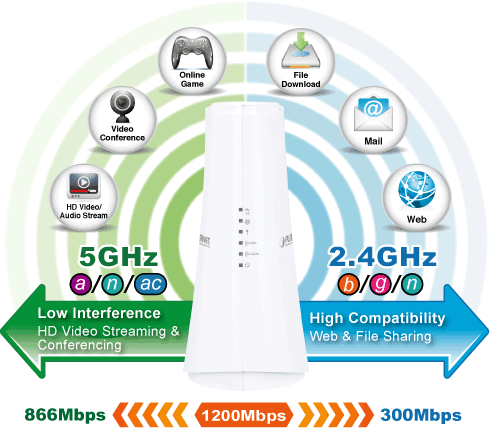

Simultaneous 2.4 GHz and 5 GHz |
| 调制类型 |
802.11ac: OFDM (BPSK / QPSK / 16QAM / 64QAM / 256QAM)
802.11a/g/n: OFDM (BPSK / QPSK / 16QAM / 64QAM)
802.11b: DSSS (DBPSK / DQPSK / CCK) |

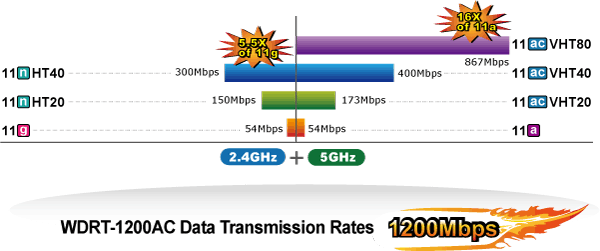

| 数据传输速率 |
2.4GHz up to 300Mbps
5GHz up to 866Mbps |
| 信道 |
2.4GHz:
??America / FCC: 2.412~2.462GHz (11 Channels)
??Europe / ETSI: 2.412~2.472GHz (13 Channels)
??Japan / TELEC: 2.412~2.484GHz (14 Channels)
5GHz:
??5.180-5.240GHz, 5.745-5.825GHz (Up to 9 channels)
??The actual channels in application will vary depending on the regulation in
??different regions and countries
|
| 信道频宽 |
802.11ac: 20/40/80MHz
802.11n: 20/ 40MHz |
| RF功率/ EIRP |
2.4GHz:
??11b: 17�1.5dBm
??11g: 14�1.5dBm
??11n: 14�1.5dBm
5GHz:
??11a: 14�1.5dBm
??11n: 14�1.5dBm
??11ac: 13�1.5dBm
|
| 接收灵敏度 |
2.4GHz:
??11b (11Mbps): -79dBm
??11g (54Mbps): -70dBm
??11n (20M)mode: -67dBm
??11n (40M)mode: -64dBm
5GHz:
??11a: -70dBm
??11n (20M)mode: -67dBm
??11n (40M)mode: -64dBm
??11ac (20M)mode: -57dBm
??11ac (40M)mode: -54dBm
??11ac (80M)mode: -51dBm
|
| 传输功率控制 |
25%, 50%, 75%, 100% |
| 无线管理特性 |

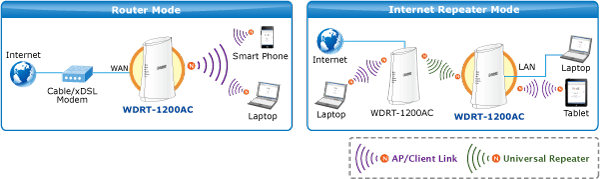

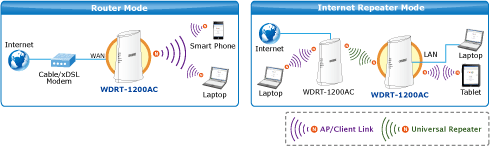

| 无线工作模式 |
? Router
? WDS Repeater |
| 加密安全 |
WEP (64/128-bit)
WPA / WPA2
WPA-PSK/ WPA2-PSK encryption |
| 无线安全 |
Provides Wireless LAN ACL (Access Control List) filtering
Wireless MAC address filtering
Supports WPS (WiFi Protected Setup)
Enable / Disable SSID Broadcast |
| 高级无线功能 |
Supports Dual-SSID (2.4GHz & 5GHz) |
| 最大用户接入数量 |
Wire: 64
Wireless: 128 |
| 路由功能 |
| WAN端口 |
Shares data and Internet access for users, supporting the following Internet accesses:
? DHCP
? Static IP
? PPPoE
? PPTP
? L2TP
|
| 防火墙 |
NAT firewall
Built-in NAT server which supports Virtual Server, and DMZ
Built-in firewall with URL filtering, and MAC address filtering |
| LAN端口 |
Built-in DHCP server supporting static IP address distribution
Supports UPnP, Dynamic DNS
Supports Packets Statistics
Session Number: Max. 7776 |

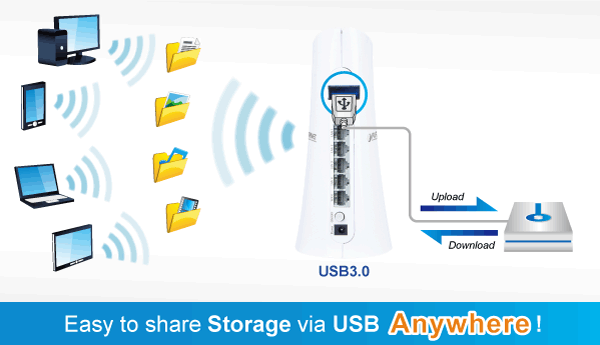

| USB 共享 |
Samba
FTP Server
DLNA Media Server |
| 系统管理 |
Web-based (HTTP) management interface
Remote management (WAN Access Control)
SNTP synchronization
Supports Scheduling Reboot
System Log and e-mail events notification |
| 系统兼容性 |
Windows 7 / Windows 8
Windows Vista
Windows XP
Mac OS X 10.4 or later |
| 标准一致性 |
| IEEE 标准 |
IEEE 802.11ac (Draft 2.0, 2T2R, up to 867Mbps)
IEEE 802.11n (2T2R, up to 300Mbps)
IEEE 802.11a
IEEE 802.11g
IEEE 802.11b
IEEE 802.11i
IEEE 802.3 10Base-T
IEEE 802.3u 100Base-TX
IEEE 802.3ab 1000Base-T |
| 其他协议与标准 |
CSMA/CA, CSMA/CD, TCP/IP, DHCP, ICMP, NAT, PPPoE, SNTP |
| 法规 |
CE, RoHS, WEEE |
| 环境 |
| 温度 |
Operating: 0 ~ 45 degrees C
Storage: -40 ~ 70 degrees C |
| 湿度 |
Operating: 10 ~ 90% (non-condensing)
Storage: 5 ~ 90% (non-condensing) |
