| Hardware |

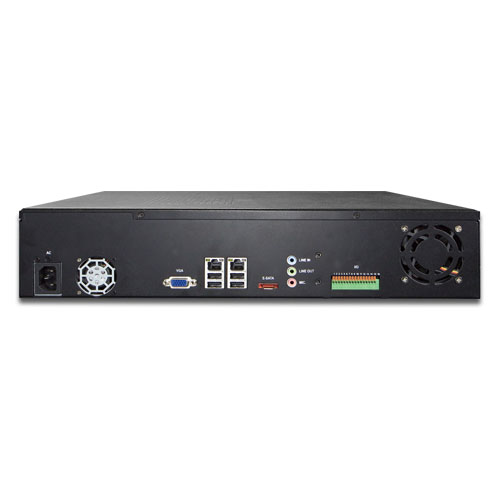

| Ethernet |
2 x RJ45, 10/100/1000Base-T (The second Ethernet port is reserved for future usage) |
| USB Interface |
6 x USB 2.0 for backup device, firmware upgrade and mouse/keyboard control |
| Video Interface |
VGA video interface (1920 x 1080) |
| Audio Interface |
Mic-in, line-in and line-out |
| Storage Device |

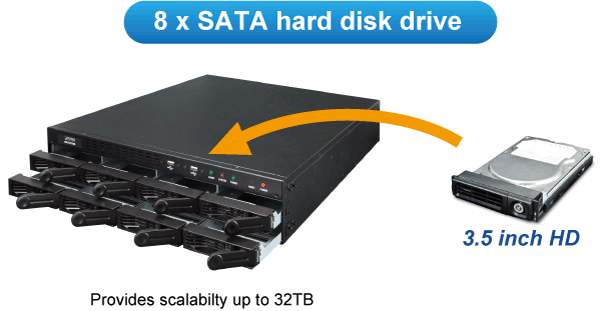

8 x 3.5" SATA II hard disk connectors |

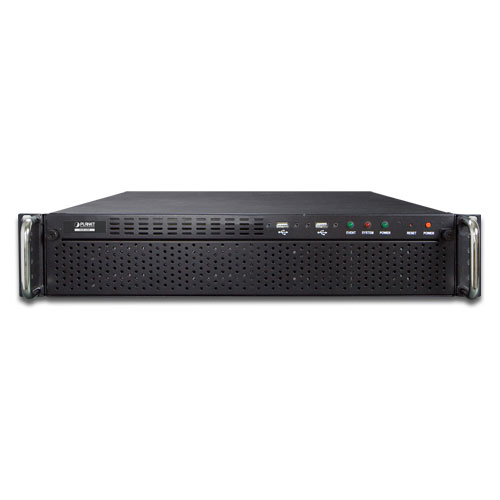

| LED |
Power, System, Event |
| Button |
Power, Reset |
| Camera |
| Max. Channels |
32-channel IP Cameras |
| Additional Camera |
Manual / Smart Camera Search / Auto setup |
| Video |
| Compression |
H.264 / MPEG-4 / M-JPEG |
| Resolution |
5MP / 3MP / 1080P / 2MP / SXGA / 720P / FD1 / VGA / CIF / QCIF |
| Video Display Frame Rate |
32CH, 320fps@1.3Mp, 3Mbps, H.264 (Intel Core i7 Processor) |
| Video Display Frame Rate (Web UI) in Recording Mode |
16CH, 320fps@1.3Mp,3Mbps, H.264 (Intel Core i7 Processor) |
| Record |
32CH, 960fps@1.3MP, 4Mbps/channel, H.264
Max. throughput: 200Mbps |
| Audio |
| Audio Type |
Two-way |
| Audio Format |
G.711, G.726 (Camera dependent) |
| Live View |
| Display Mode |
Live View / Playback / Full Screen / Sequence View |
| Split Screen |
1 / 4 / 16 / 36 (Web), 1 / 4 (Local UI) |
| Full Screen |
1 / 4 / 16 / 36 (Web), 1 / 4 (Local UI) |
| Sequence Mode |
Sequence all / manually-elected cameras in split view with configurable timer |
| Snapshot |
Video snapshot in JPEG (Web) / PNG (Local) format |
| PTZ Support |
Digital PTZ / Auto Pan / Preset Point / Preset Point Sequence View |
| Playback |
| Split Screen |
1 / 4 / 16 (Web), 1 / 4 (Local UI) |
| Play Method |
Play / Pause / Stop / Forward / Reverse / Speed Adjust / Frame by Frame
Search by Time or Event only
|
| Export |
Exports playback videos to local computer or USB in AVI Format |
| Network and Configuration |
| Network Service |
HTTP / TCP / SMTP / DHCP / ARP / NTP / DNS / UPnP / FTP / RTSP |
| Streaming Protocols |
Depending on the supported cameras |

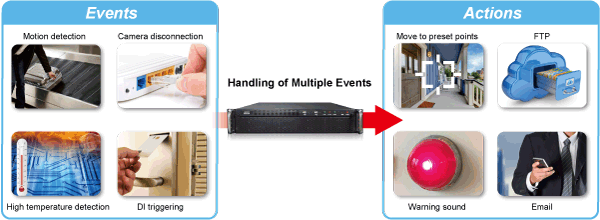

| Triggers and Event |
| Event Type |
System Events
System Start
System Settings modified
Camera Settings Modified
Start Recycling
Disk Full
Camera Events
Buzzer Alarm
|
| Event Action |
Buzzer Alarm
Disable / Enable Event Action
Duration of Event Action
Recording
Mail / FTP Notification
|
| Event Recording |
Pre/post event settings |
| Management |
| Number of Groups |
7 (Administrator / Guest / User Define * 5) |
| Privileges |
Live View / Playback / System Configurations / Camera Configurations / Recording Configuration / Event Configuration / PTZ / System Options |

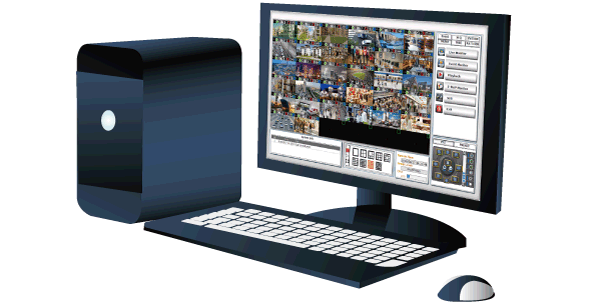

| User Interface |
Graphic local user interface (Operated by mouse, keyboard, or USB joystick)
Web browser (Internet explorer 7 or above)
CMS Utility
|
| Log Type |
System / Event |
| Software Utility |
Search utility / media player for recording export |
| Environment |
| Power |
100~240V AC |
| Consumption |
400W |
| Operating Temperature |
0~40 degrees C |
| Storage Temperature |
-20~60 degrees C |
| Humidity |
0~80% (non-condensing) |
| Weight |
9.5 kg |
| Dimensions (W x D x H) |
430 x 505 x 85mm |
