| Camera |
| Image device |
1/4" 1 mega-pixel progressive scan CMOS sensor |
| Lens |
Fixed lens 3.6mm, F1.2
Angle of view
Horizontal: 75 degrees
Vertical: 55 degrees
|
| Min Illumination |
0.1 lux (color) @ F1.2
0 lux (B/W)
|

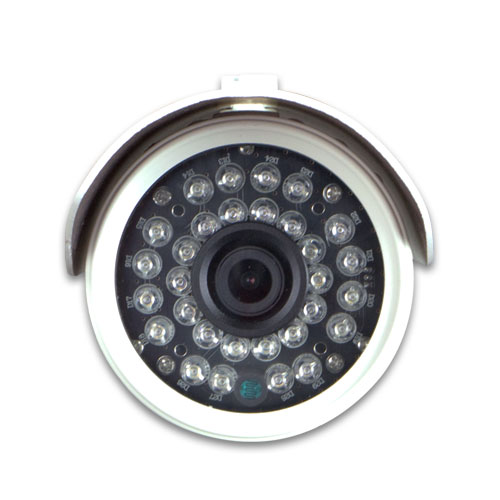

| IR Illuminations |
IR LED x 30, 850nm
Built-in IR illuminators, effective up to 25 meters
*The IR distance is based on the environment |
| Effective Pixels |
1280 x 720 pixels |
| Image |
| Video Compression |
H.264 |
| Video Resolution |
720p / 720 x 576 / 640 x 480 / 352 x 288 / 320 x 240 / 174 x 144 |
| Frame Rate |
Up to 30fps for all resolutions |
| Image Setting |

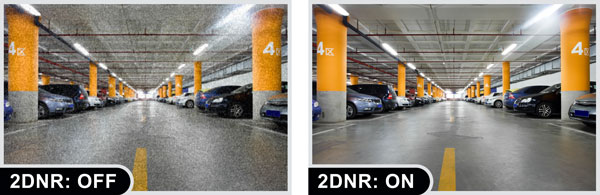

2D noise reduction

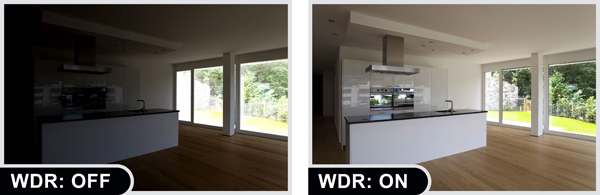

WDR
Brightness, saturation, contrast
Mirror/Rotate
Privacy mask
Text, time and date overlay
|
| Streaming |
Simultaneous multi-profile streaming
Streaming over TCP, HTTP, or HTTPS
Controllable frame rate and bandwidth
Constant and variable bit rate (H.264)
|
| Network and Configuration |
| Standard |
IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3af Power over Ethernet
|
| Protocol |
IPv4, TCP/IP, HTTP, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, SMTP |
| Security |
Password protection, HTTPS encrypted data transmission, user access log |
| Users |
3 clients on-line monitoring at the same time |
| System Integration |
| Application Programming Interface |

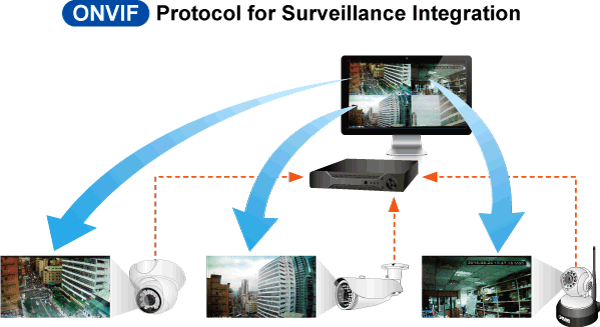

ONVIF compliant |
| Alarm Triggering |
Motion detection |
| Alarm Events |
File upload via FTP
Notification via email, HTTP, and TCP
|
| General |
| Power Requirements |
12V DC, 6W (max.)
IEEE 802.3af Class 3
|
| Power Consumption |
6.5W max. |
| Operating Temperature |
-10 ~ 50 degrees C |
| Operating Humidity |
20 ~ 80% (non-condensing) |
| Weight |
380g |
| Dimensions (? x L) |
63.5 x 136 mm |
| Emission |
CE, FCC |

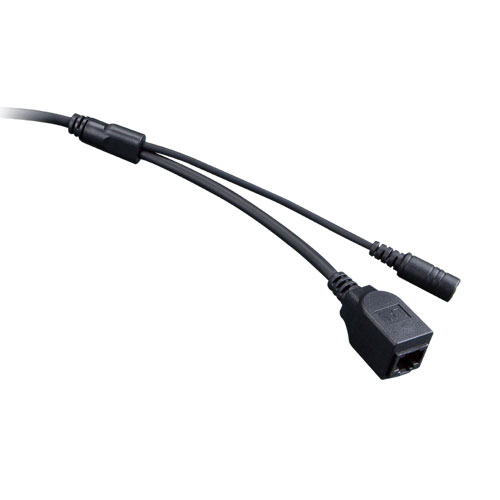

| Connectors |
10/100Mbps Ethernet, RJ45
DC power jack
|
