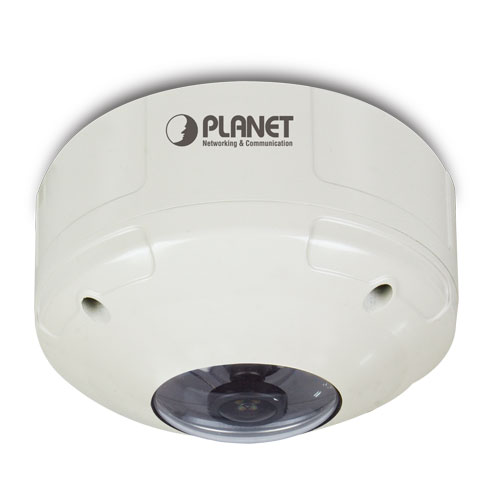

ICA-8350

3 Mega-pixel Vandalproof Fish-Eye IP Camera

概述
应用场景
功能特性
产品规格
下载
相关产品

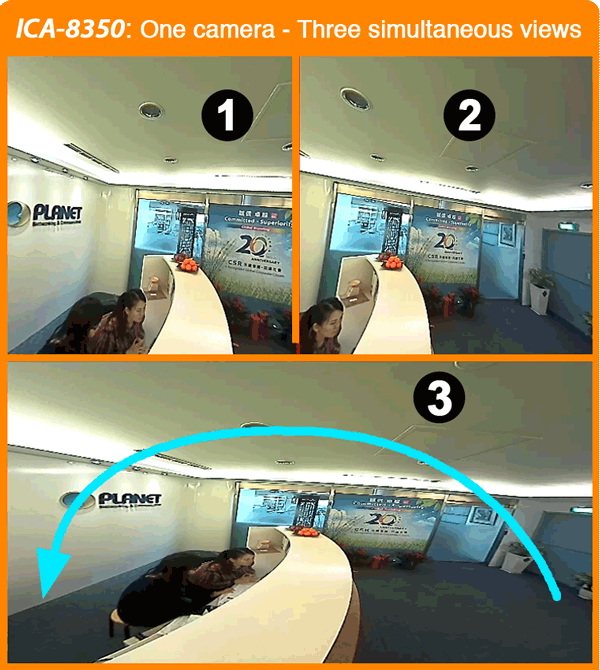

PLANET ICA-8350 3 Mega-pixel Fish-Eye IP Camera supports H.264, MPEG-4, and JPEG compression formats and delivers excellent picture quality in up to 1536 x 1536 pixels at 20 frames per second (fps). Incorporating the professional 3.4 MP-resolution sensor, the ICA-8350 provides high quality images and panorama function with quad view to enable images of monitoring and recording from four different angles to be displayed simultaneously. It offers 180� panoramic view by wall mount installation or 360� surround view in deployment of ceiling / floor / table mount. Therefore, users do not need to install multiple IP cameras and hence save tremendous installation and maintenance cost. Moreover, the IP66-rated vandalproof housing protects the ICA-8350 against rain and dust and ensures stable operation under extreme weather conditions. The ICA-8350 is an ideal solution for both indoor and outdoor surveillance applications such as buildings, hospitals, banks, hotel lobbies, garages, hallways, stores and offices, and more.

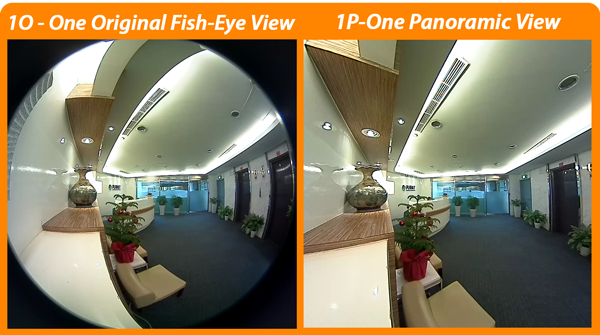

Complete Monitoring by 360� Surround View
The ICA-8350 is a fisheye camera with a 360 degree panoramic wide angle view without blind spot to allow monitoring all angles of a location using just one camera and thus save lots of traditional mechanical Pan/Tilt maintenance cost. The distorted hemispherical image of the fisheye camera will be converted into the conventional rectilinear projection. With the ICA-8350 equipped with no software, you can watch live view and utilize functions such as motion detection and camera tampering through the Web interface via an IE browser. It also provides distortion correction function to fix the camera video so users can zoom in and zoom out the image, and pan across the camera�s video to survey a large area easily.

Day & Night Functionality
The ICA-8350 features an automatic, removable infrared-cut filter, which enables the camera to provide color video when there is sufficient light, and black/white video in dark conditions. The camera is able to maintain clear images 24 hours a day.

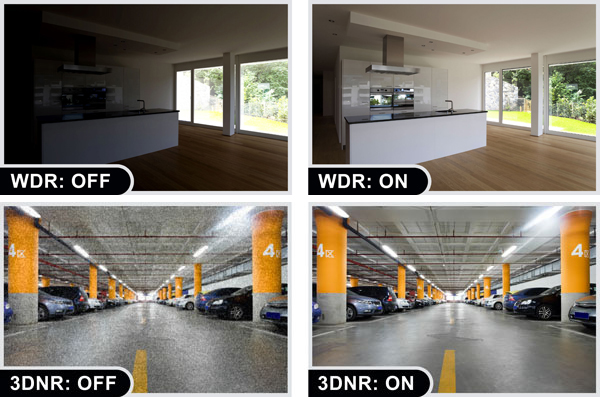

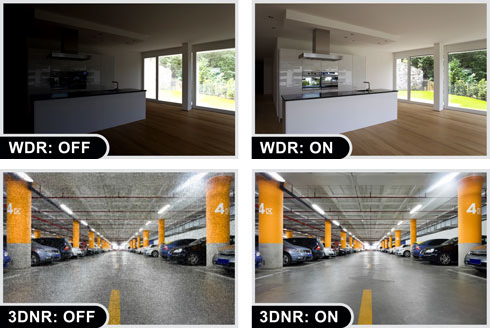

Exceptional Image Quality
Together with powerful image processing attributes like Wide Dynamic Range and 3D Digital Noise Reduction (3DNR) technology, the ICA-8350 is able to filter the intense backlight surrounding a subject and remove noises from video signal. The result is that an extremely clear and exquisite picture quality can be produced even under any challenging lighting conditions.

Camera Tampering and Audio Detection
Provided with three individually configurable motion detection zones, the ICA-8350 can record video, trigger alarms or alerts when motion is detected in specified areas. Moreover, the camera's built-in microphone enables you to hear voice from where out of the video surveillance range and to trigger the audio detection alarm when sounds like screams or glass breaking are detected.

Advanced Event Management
The ICA-8350 supports a number of advanced features to enhance surveillance flexibility and event management capabilities. The advanced features include AV out for two-way audio function, RS485 for connection of an optional pan/tilt enclosure which effectively adds pan/tilt functionality, and inputs/outputs interface for connecting to external devices such as door sensors and relays to activate light or close doors.

Flexible Installation and Power Functionality
The ICA-8350 incorporates IEEE 802.3af Power over Ethernet technology and can be powered from a PoE Switch via the network, which eliminates the need for power cables and reduces installation costs. With advanced features of the Gigabit Ethernet transmission, the ICA-8350 gives users the utmost in bandwidth flexibility and storage efficiency. Furthermore, the ICA-8350 is ONVIF-compliant and therefore interoperable with other brands in the market, greatly supporting users to integrate with their existing surveillance network. In addition, the ICA-8350 seamlessly integrates with the 64-CH central management software, providing advanced monitoring and video management features. The ICA-8350 is indisputably the top choice for reliable and high performance panoramic surveillance.

Camera
Image Device	1/2.8" 3.4 mega-pixel progressive scan CMOS sensor
Lens	FOV=180 +/- 5�(D/H/V), F=2.0, f=1.25mm Mechanical IR-cut Filter Angle of view : 360 degrees view angle
Min Illumination	0.5 lux @ F2.0
Effective Pixels	1536 x 1536 pixels
Video
Video Encoder	H.264 / M-JPEG
Video Resolution	H.264 1536 x 1536 / 1280 x 1280 / 768 x 768 / 384 x 384 M-JPEG 1536 x 1536 / 1280 x 1280 / 768 x 768 / 384 x 384
Frame Rate	Up to 22fps for all resolutions
Image Setting	AE, AWB 3D noise reduction Color, brightness, sharpness, contrast Mirror/Flip 7 Privacy Masks Text, time and date overlay
Streaming	Simultaneously multi-profile streaming Streaming over UDP, TCP, or HTTP M-JPEG streaming over HTTP (server push) Controllable frame rate and bandwidth Constant and variable bit rate (H.264) ROI AOI
Region of Interest	2 windows with selectable resolution and codec max region size 640x352
Rate Control	CBR (Constant Bit Rate) VBR (Variable Bit Rate) EVBR (Enhanced Variable Bit Rate)
UI Layout	� 1O - One Original fish-eye view � 1P - One Panoramic view � 1R - One Regional view � 2P - Two Panoramic views � 1P2R - One Panoramic and two Regional views � 4R - Four Regional views � 1O3R - One Original and three Regional views � 1P3R - One Panoramic and three Regional views � 4R PRO - Four Regional views interactively displayed when the field of view changes in any of the views
Audio
Audio Streaming	2-way audio
Audio Compression	RTSP: G.711 64kbps, G.726 32kbps
Microphone	External microphone input
Audio Output	Adjustable audio output gain
Network and Configuration
Network Standard	IEEE 802.3 10Base-T IEEE 802.3u 100Base-TX IEEE 802.3ab 1000Base-T
Network Protocol	IPv4, IPv6, TCP/IP, UDP, HTTP, HTTPS, SMTP, FTP, NTP, DNS, DDNS, DHCP, ARP, Bonjour, UPnP, RTSP, RTP, RTCP, IGMP, PPPoE, 3GPP, ICMP, Samba
Security	Password protection, IP address filtering, HTTPS encrypted data transmission, user access log
Users	20 simultaneous unicast users
System Integration
SDK	Open API for software integration ONVIF
Alarm Triggers	Intelligent video motion detection and external input
Alarm Events	File upload via FTP, Samba, SD card or email Notification via email, HTTP, and TCP External output activation Audio alert output Pre and post alarm buffering
Environment
Power Requirement	12V DC, 1A IEEE 802.3af Power over Ethernet Class 3
Power Consumption	7W max.
Operating Temperature	-20 ~ 50 degrees C
Operating Humidity	20 ~ 80% (non-condensing)
Weight (includes LENS)	817g
Dimension (?x H)	140 x 92.7 mm
Emission	CE, FCC
Connectors	10/100/1000 RJ-45 DC power jack Terminal block for 1 alarm input and 1 output RS-485 interface for pan/tilt scanners control External mic input Audio out Composite video output (max. resolution: D1 720 x 480 pixel) Micro SD card (max 32GB, Class 6) Factory default reset

订购信息
ICA-8350	3 Mega-pixel Vandalproof Fish-Eye IP Camera
