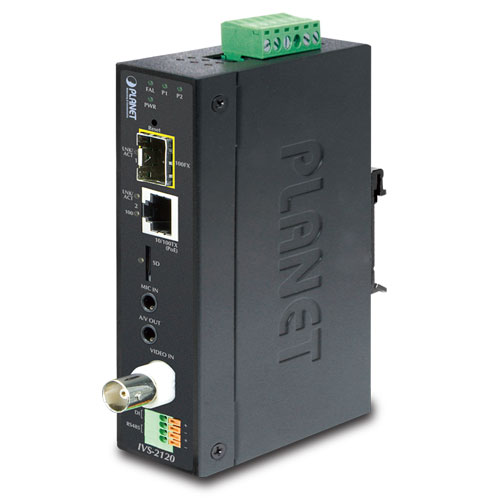

IVS-2120

Industrial Internet Video Server

概述
应用场景
功能特性
产品规格
下载
相关产品

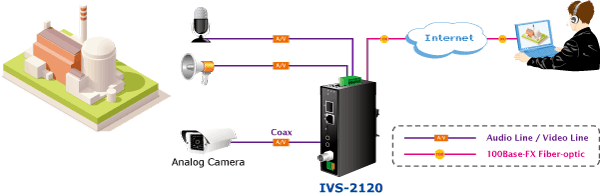

Built-in SFP Transceiver to Extend Transmission Distance
PLANET IVS-2120 one-channel PoE Internet Video Server offers the highly-efficient H.264 video compression, which greatly reduces bandwidth without compromising image quality. When the IVS-2120 and the other side of the device are inserted with a fiber module, the maximum transmission distance can be extended by up to 20km, and the industrial rugged design, which includes a -30 to 60 degrees C operating temperature, IP30 form factor protection, and industrial certifications, make the IVS-2120 suitable for harsh environments.

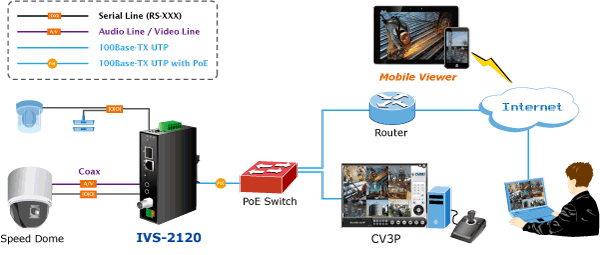

It provides an easy and high-quality solution to integrating analog CCTV cameras into the IP-based video surveillance system. The IVS-2120 is the ideal choice for casinos, airports, traffic surveillance, prisons or anywhere an analog surveillance system is already installed and full frame rate is needed.

Full Frame Rate in All Resolutions

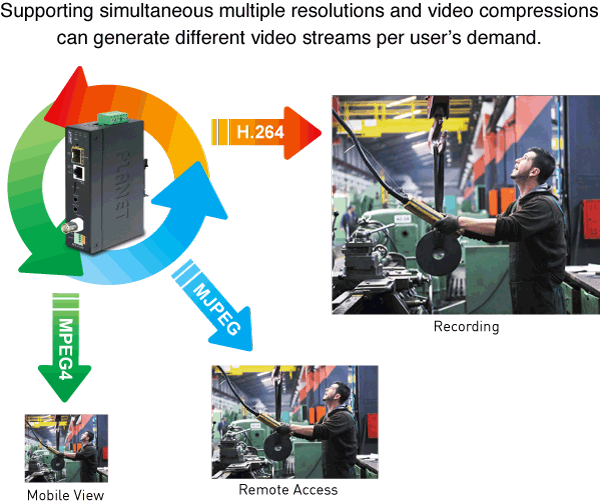

The IVS-2120 supports H.264, MPEG-4, and M-JPEG compression formats to deliver excellent picture quality in 4CIF (D1) resolutions at 30/25 (NTSC/PAL) frames per second (fps). It also can deliver multiple, individually configurable video streams simultaneously at full frame rate in all resolutions, meaning several video streams can be configured with different compression formats, resolutions and frame rates for different needs.

Advanced Event Management

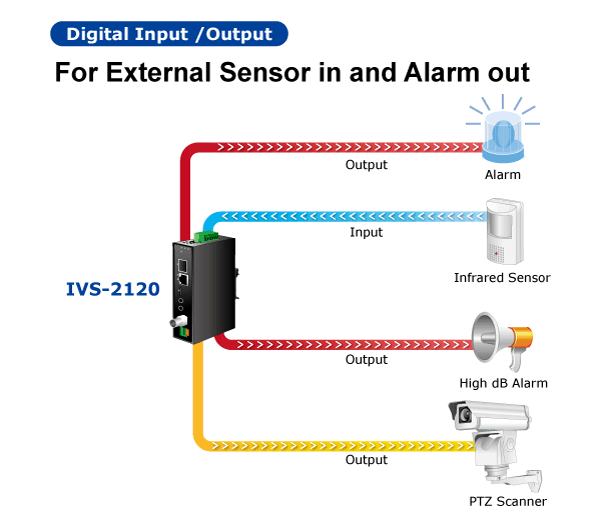

The IVS-2120 supports a number of advanced features that increase monitoring flexibility and capabilities, including AV out to perform the two-way audio function, micro SD/SDHC card slot for local storage, RS-485 for connection to an optional pan/tilt enclosure and input/output port for connecting external sensor devices such as door sensors and light relays to enable real-time alarm notification and event management.

Dual Power Source and Temperature Detect Functionality
The IVS-2120 comes with IEEE 802.3af Power over Ethernet (PoE) and dual power source (AC and DC) which is the best redundancy solution. The IVS-2120 has a built-in temperature detector to show the temperature inside the unit. The IVS-2120 is ONVIF-compliant and therefore interoperable with other brands in the market. As it includes 64-CH central management software, the IVS-2120 is indisputably the top choice for reliable and high-performance surveillance.

Video Compression	H.264 / MPEG-4 / M-JPEG
Video Resolution	4CIF , CIF, QCIF
Frame Rate	30/25fps (NTSC/PAL) in all resolutions
Image Setting	AE, AWB 3D noise reduction Color, brightness, sharpness, contrast Mirror / Flip 8 Privacy Masks Text, time and date overlay
Streaming	Simultaneous multi-profile streaming Streaming over UDP, TCP, or HTTP HTTPS M-JPEG streaming over HTTP (server push) Supports 3GPP mobile surveillance (MPEG4) Controllable frame rate and bandwidth Constant and variable bit rate (MPEG4/H.264) ROI
Audio
Audio Streaming	Two-way audio
Audio Compression	RTSP: G.711 64kbps, G.726 32kbps 3GPP: AMR
Microphone	External microphone input
Audio Output	Adjustable audio output gain
Network and Configuration
Standard	IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3u 100BASE-FX SFP
Protocol	IPv4, IPv6, TCP/IP, UDP, HTTP, HTTPS, SMTP, FTP, NTP, DNS, DDNS, DHCP, ARP, Bonjour, UPnP, RTSP, RTP, RTCP, IGMP, PPPoE, 3GPP, ICMP, Samba, SNMP
Security	Password protection, IP address filtering, HTTPS encrypted data transmission, user access log
Users	20 clients on-line monitoring at the same time
System Integration
Application Programming Interface	Open API for software integration ONVIF Compliant
Alarm Triggers	Intelligent video motion detection, audio detection and external input
Alarm Events	File upload via FTP, Samba to NAS, SD card or email Notification via email, HTTP, and TCP External output activation Audio alerting output Pre- and post-alarm buffering
Environment Specifications

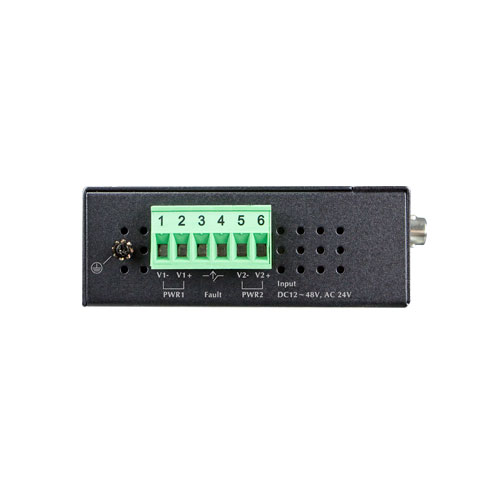

Power Requirements	IEEE 802.3af Class 3 48V DC and 24V AC max. Redundant power with polarity reverse protection function
Power Consumption	3W (max.)
Operating Temperature	-30 ~ 60 degrees C
Operating Humidity	20 ~ 80% (non-condensing)
Weight	448g
Dimensions (W x D x H)	135 x 87 x 32 mm
Enclosure	IP30 metal case
Installation	DIN rail kit and wall mount ear
Emission	CE, FCC

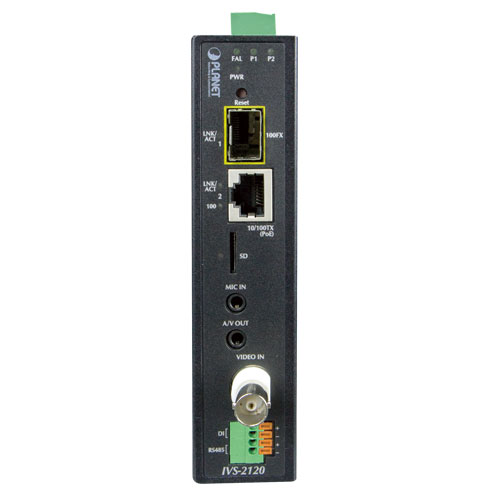

Connectors	10/100Mbps Ethernet, RJ-45 100Base-FX SFP BNC connector, 75 ohm impedance Terminal block for 1 alarm input and 1 output RS-485 interface for pan/tilt scanners control External mic input Composite video / audio output Micro SD/SDHC card (max. 32GB, Class 6) Factory default reset

订购信息
IVS-2120	Industrial Internet Video Server
