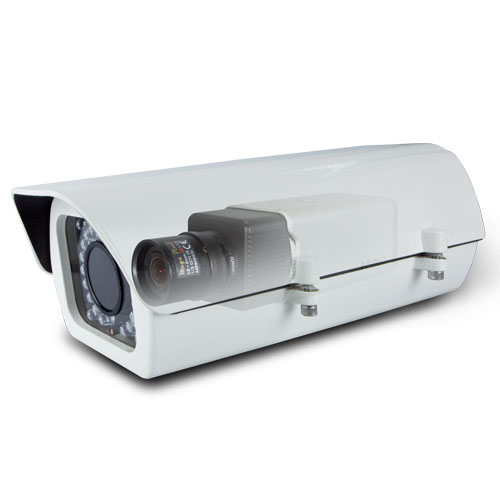

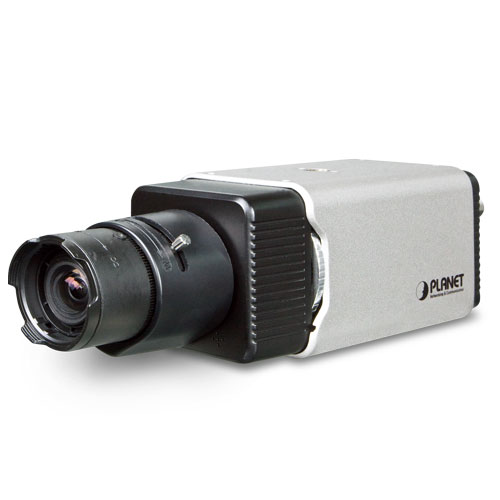

Camera |
Image Device |
2 Mega-pixel Sony Exmor image sensor |
Lens |
Vari-focal 3.1~8mm, F1.4 DC Auto-iris, CS mount
Mechanical IR Cut Filter
Angle of view (horizontal field): 79.3 x 29.8 degrees
|
Min. Illumination |
0.5 lux @ F1.4 |
Effective Pixels |
1920 x 1080 pixels |
IR LED |
24 pcs / distance up to 35 meters |
Image |
Video Compression |
H.264 / MPEG-4 / M-JPEG |
Video Resolution |
1080P mode
H.264: 1080P / 1280 x 720 / 640 x 360 / 320 x 180
M-JPEG: 1080P / 1280 x 720 / 640 x 360 / 320 x 180
MPEG4: 1280 x 720 / 640 x 360 / 320 x 180
720P mode
H.264: 1280 x 720 / 640 x 360 / 320 x 180 / 160 x 80
M-JPEG: 1280 x 720 / 640 x 360 / 320 x 180 / 160 x 80
MPEG4: 640 x 360 / 320 x 180 / 160 x 80
|
Frame Rate |
Up to 30fps for all resolutions |
Image Setting |
AE, AWB
3D Noise reduction

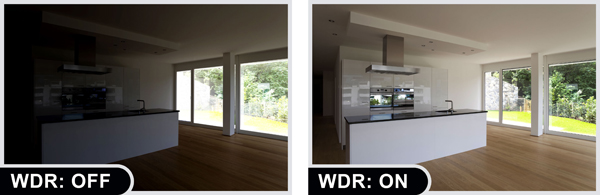

Digital WDR
WDR
Color, brightness, sharpness, contrast
Mirror / Flip
7 Privacy Masks
Text, time and date overlay
Overlay image on video
|
Streaming |
Simultaneously multi-profile streaming
Streaming over UDP, TCP, or HTTP
M-JPEG streaming over HTTP (server push)
Supports 3GPP mobile surveillance (MPEG4)
Controllable frame rate and bandwidth
Constant and variable bit rate (MPEG4 / H.264)
ROI
|
Audio |
Audio Streaming |
2-way Audio |
Audio Compression |
RTSP: G.711 64kbps, G.726 32kbps
3GPP: AMR
|
Microphone |
External microphone input |
Audio Output |
Adjustable audio output gain |

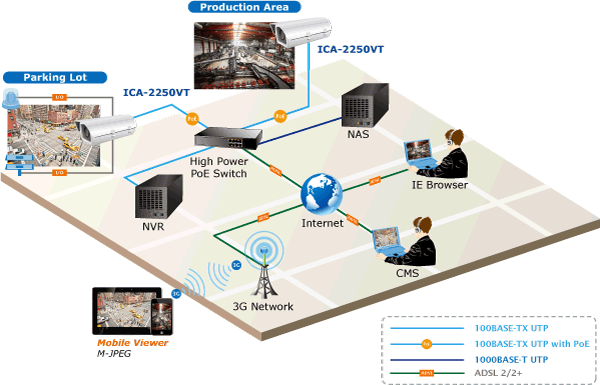

Network and Configuration |
Standard |
IEEE 802.3 10Base-T
IEEE 802.3u 100Base-TX
IEEE 802.3ab 1000Base-T
IEEE 802.3at Power over Ethernet Plus
|
Protocol |
IPv4, IPv6, TCP/IP, UDP, HTTP, HTTPS, SMTP, FTP, NTP, DNS, DDNS, DHCP, ARP, Bonjour, UPnP, RTSP, RTP, RTCP, IGMP, PPPoE, 3GPP, ICMP, Samba |
Security |
Password protection, IP address filtering, HTTPS encrypted data transmission, user access log |
Users |
20 clients on-line monitoring at the same time |
System Integration |
Application Programming Interface |
Open API for software integration
ONVIF Compliant
|
Alarm Triggers |
Intelligent video motion detection and external input |
Alarm Events |
File upload via FTP, Samba to NAS, SD card or email
Notification via email, HTTP, and TCP
External output activation
Audio alerting output
Pre and post-alarm buffering
|
General |
Power Requirements |
IEEE 802.3at Class 4 |
Fan / Heater Control Temperature |
Heater: On: 15 / Off: 25 degrees C
Fan: On: 35 / Off: 25 degrees C
|
Power Consumption |
19.8W max. |

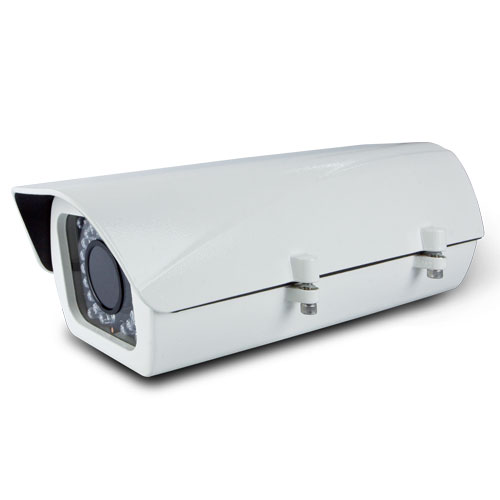

Protection Class |
IP66 classification with weatherproof feature |

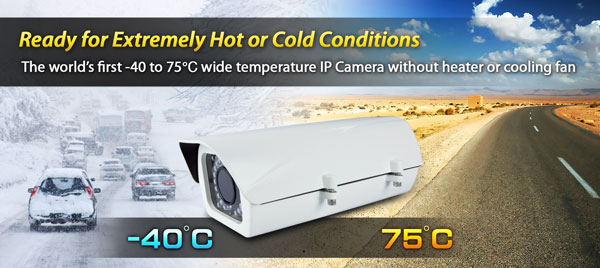

Operating Temperature |
-40 ~ 75 degrees C |
Operating Humidity |
20 ~ 80% (non-condensing) |
Weight (include LENS) |
2.89kg |
Dimensions (W x D x H) |
145 x 406 x 109 mm |
Emission |
CE, FCC |

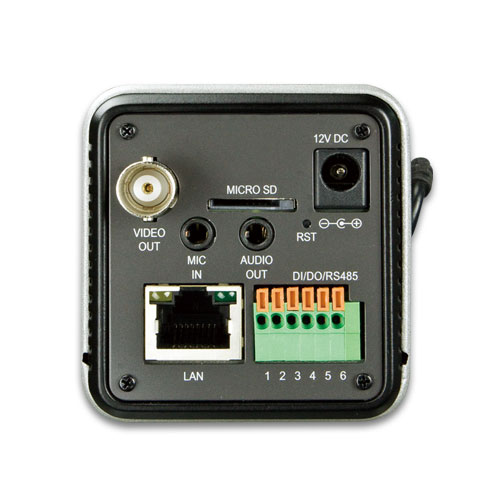

Connectors |
10/100/1000Mbps Ethernet, RJ-45
DC power jack
Terminal block for 1 alarm input and 1 output
RS-485 interface for pan/tilt scanners control
External Mic input
Audio output
BNC video output
Micro SD/SDHC card (Max 32GB, Class 6)
Factory default reset
|
