ICA-4130S

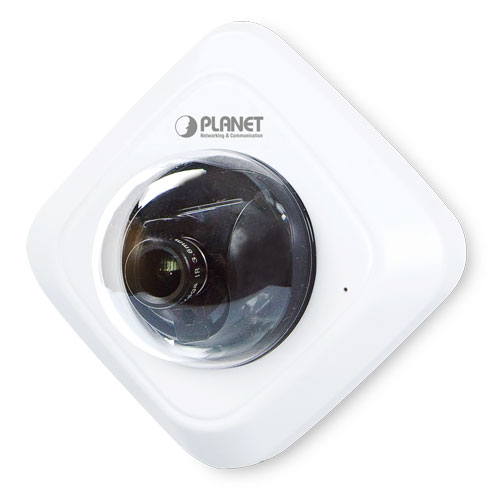

HD Ultra-mini SIP PoE IP Camera

概述
应用场景
功能特性
产品规格
下载
相关产品

Compact Design Solution with SIP-based IP Surveillance
PLANET ICA-4130S Ultra-mini IP Camera with PoE is designed for easy installation with versatile functions. The camera features 1.3 mega-pixel CMOS sensor and supports H.264, MPEG-4, and M-JPEG compression formats to deliver excellent picture quality for different applications. Integrated with SIP/VoIP protocol, the ICA-4130S provides more aggressive and efficient solution to dealing with event triggers via video phone. It is perfect for remote and discreet monitoring of indoor areas such as homes, small businesses, boutiques, stores, offices, communities, restaurants, hotels, residences, healthcare facilities, etc.

Day & Night Surveillance
The ICA-4130S brings the clearest vision at night by featuring 0.5 lux illumination and day/night mode switching. It offers color, and black and white pictures both in the daytime and nighttime with the built-in CMOS sensor supporting up to 5~10 meters. The ICA-4130S also provides exposure settings like exposure level, exposure time for more flexible adjustment.

Exceptional Image Quality
Together with powerful image processing attributes like Backlight Compensation (BLC) and 3D Digital Noise Reduction (3DNR) technology, the ICA-4130S is able to adjust the exposure of the entire image to properly expose the subject in the foreground and remove noises from video signal. Thus, it brings an extremely clear and exquisite picture quality even under any challenging lighting conditions.

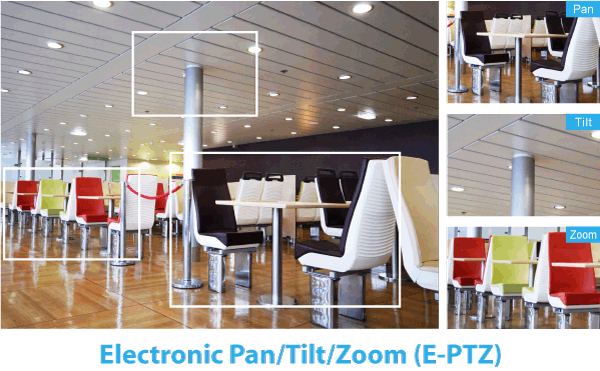

Live View with E-PTZ
The E-PTZ function built-in with the ICA-4130S enables users to capture the full image in the record while doing PTZ digitally on live view. Users can instantly manipulate the view and can zoom and move about the webcam image with no delay. Meanwhile, there is never a queue since the camera does not need to move when compared with PTZ camera.

Advanced Event Management

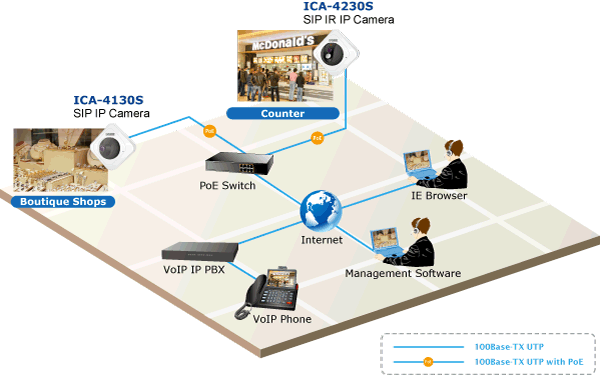

The ICA-4130S features industry-led SIP/VoIP for audio, alarm, intercom and video streaming for mobile phones and video phones. When the event is triggered, the administrator can receive alarm, video even audio via video phones. Besides, the administrator is able to view status of remote site via video phone, SIP embedded mobile phone, smart phone, PC... aggressively at any time. With this function, the ICA-4130S provides more instant, efficient response method to deal with events or prevent events from happening, when compared with other even actions (FTP, Email, SD Card, etc.).

Flexible Installation and Power Functionality

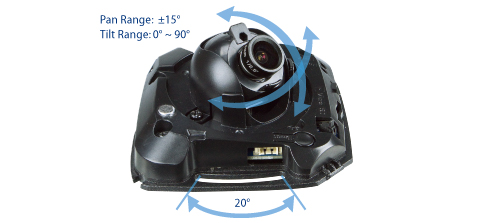

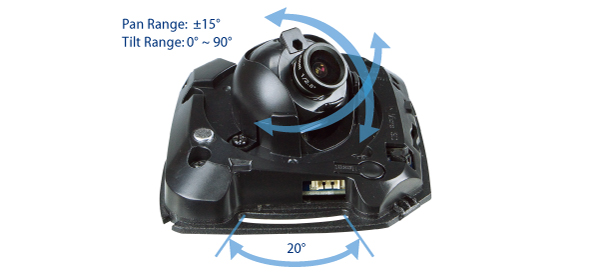

The ICA-4130S incorporates IEEE 802.3af Power over Ethernet standard and able to be powered via the network cable from a PoE power sourcing equipment such as PoE Switch and PoE injector. It thus eliminates the need for extra power cables and reduces installation costs while increases the deployment flexibility. The ICA-4130S is ONVIF compliant and interoperable with other brands in the market. Moreover, the camera features 3-axis mechanical design for fast and easy adjustment of the camera�s viewing angle, allowing you to precisely position the camera. The ICA-4130S is indisputably the ideal choice for reliable and high performance surveillance.

Camera
Image device	1/2.5" progressive 1.3 mega-pixel CMOS sensor
Focal Lens	Fixed lens 3.6mm, F1.2 Angle of view: Horizontal: 96 degrees Vertical: 72 degrees
Min Illumination	Color: 0.5 lux @ F1.2 B/W: 0.2 lux @ F1.2
Electronic Shutter	Auto, 1/5s ~ 1/100000s
Effective Pixels	1280 x 960 pixels
Video
Video Encoder	H.264 / MPEG-4 / M-JPEG
Video Resolution	H.264: 1280 x 960 / 1280 x 720 / 704 x 576 / 640 x 480 / 640 x 368 / 320 x 240 / 320 x 192 M-JPEG: 640 x 480 / 640 x 368 / 320 x 240 / 320 x 192 MPEG-4: 640 x 480 / 640 x 368 / 320 x 240 / 320 x 192
Frame Rate	Up to 30fps for all resolutions
Video Bit Rate	64kbps~8Mbps (CBR / VBR adjustable)
Image Setting	Brightness / Contrast / Saturation
Streaming	Simultaneous multi-profile streaming Streaming over UDP, TCP, or HTTP Controllable frame rate and bit rate Constant and variable bit rate (MPEG4 / H.264) I-frame Interval
Audio

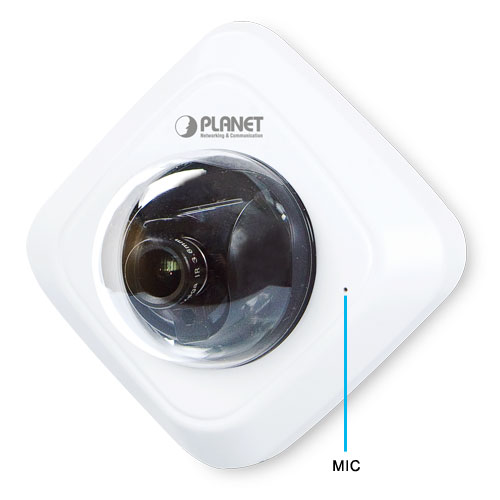

Audio Streaming	Built-in microphone
Audio Compression	G.711
Audio Input	Adjustable audio input gain
Network and Configuration
Network Standard	IEEE 802.3 10Base-T IEEE 802.3u 100Base-TX IEEE 802.3af
Protocol	TCP/IP, UDP, RTP, RTSP, RTCP, HTTP, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPNP, SIP
Security	Password protection, IP address filtering
Users	5 clients on-line monitoring at the same time
System Integration
Application Programming Interface	Open SDK/API for software integration ONVIF Compliant
VoIP Standard	SIP 2.0 (RFC3261)
Intelligent Video	Motion dection Privacy mask Backlight compensation 3D Noise Reduction
Alarm Triggers	Motion detection Network disconnect Tampering detection Audio detection
Alarm Events	FTP upload, email upload, SD Card record and SIP Phone
Environment
Power Requirements	IEEE 802.3af (Class 2)
Power Consumption	Max. 4W (PoE)
Operating Temperature	-10 ~ 60 degrees C
Operating Humidity	0 ~ 90% (non-condensing)
Weight	125g
Dimensions (W x D x H)	85 x 85 x 46.1 mm

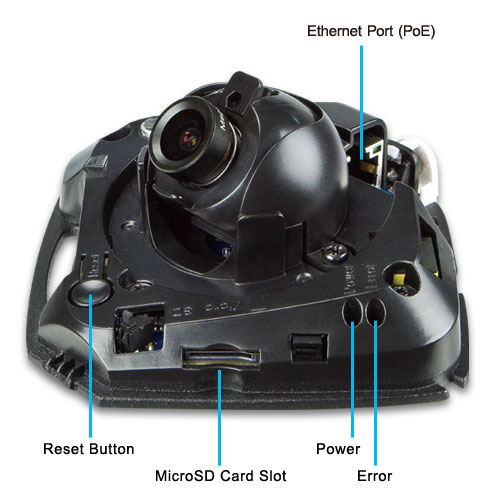

Connectors	10/100Mbps Ethernet, RJ-45 Micro SD/SDHC card slot (Max. 32GB, Class 6)
Emission	CE, FCC

订购信息
ICA-4130S	Ultra-mini HD SIP PoE IP Camera
