ICA-3110

HD Ultra-mini Bullet IR IP Camera

概述
应用场景
功能特性
产品规格
下载
相关产品

HD Superior Video Quality
PLANET ICA-3110 PoE IP Camera provides high resolution images for round-the-clock surveillance over IP networks. It supports H.264, JPEG compression formats and delivers excellent picture quality in HD resolutions at 30 frames per second (fps). It is perfect for remote and discreet monitoring of indoor areas such as homes, small businesses, boutiques, restaurants, hotels, residences, etc.

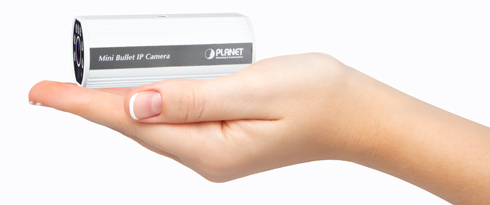

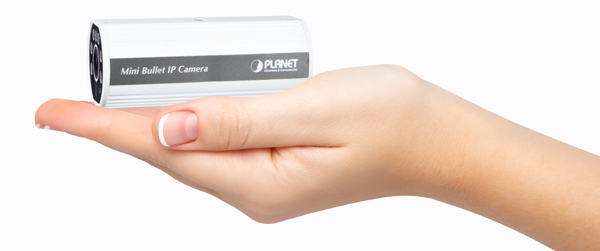

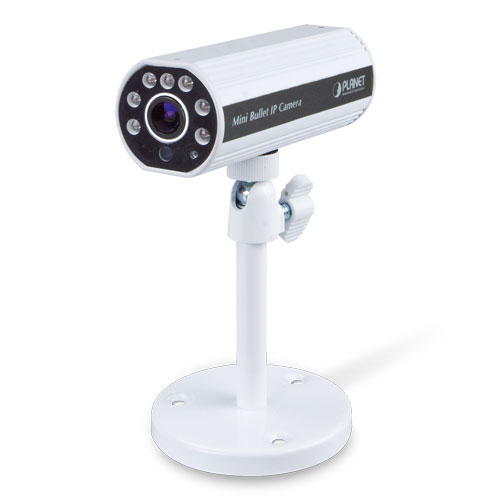

Mini Design for Easy Installation
The ICA-3110 is an ultra lightweight IP camera in compact size, thus offering a quick and simple installation on the ceilings or walls inside of houses and buildings. Installation can be finished in less than 60 seconds.

Exceptional Image Quality

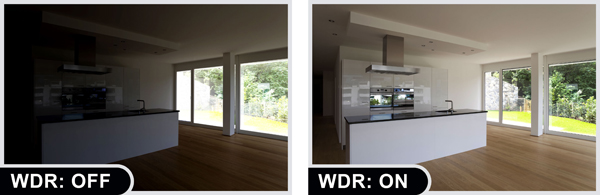

Together with powerful image processing attributes like Wide Dynamic Range (WDR) and Dimension Noise Reduction (DNR) technologies, the ICA-3110 is able to filter the intense backlight surrounding a subject and remove noises from video signal. The result is that an extremely clear and exquisite picture quality can be produced even under any challenging lighting conditions.

Advanced Event Management

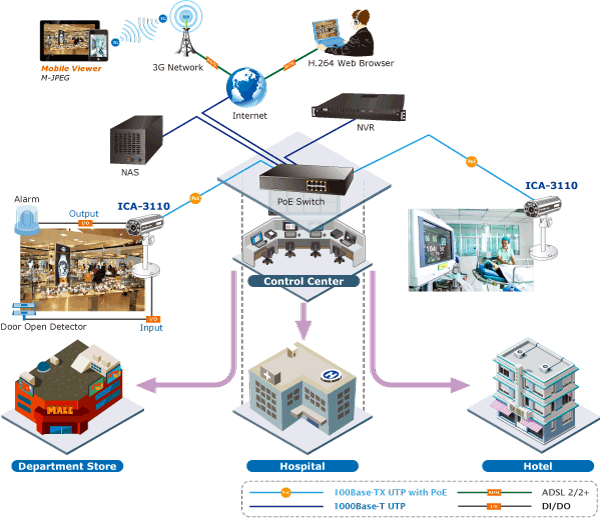

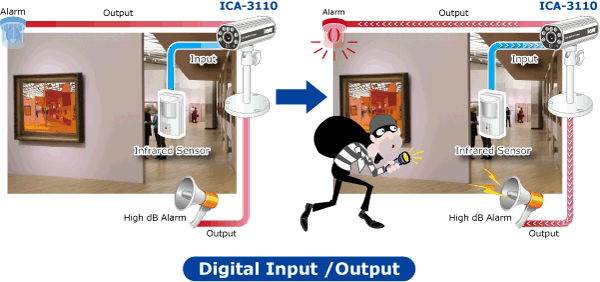

The ICA-3110 supports a number of advanced features to enhance surveillance flexibility and event management capabilities. The advanced features include inputs/outputs for connecting to external devices such as door sensors and relays to activate light or closed doors.

Full Surveillance during Day and Night Functionality
For a clear surveillance image both in the day and night, the ICA-3110 built-in 7 IR LEDs can offer IR distance of up to 5 meters. Its 720P resolution makes the image still clear even at night. The ICA-3110 also is equipped with ICR 2.8mm / F1.8, and auto-iris function which can automatically adjust the amount of light that passes through the lens. Thus, the ICA-3110 is able to maintain clear images 24 hours a day.

Flexible Installation and Power Functionality

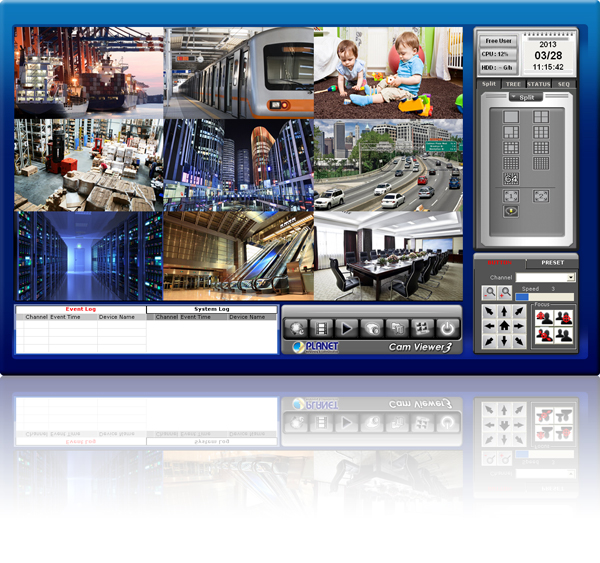

The ICA-3110 incorporates IEEE 802.3af Power over Ethernet technology and can be powered from a PoE Switch or PoE injector via the network, which eliminates the need for power cables and reduces installation costs. The ICA-3110 is ONVIF-compliant and therefore interoperable with other brands in the market, greatly supporting users to integrate with their existing surveillance network. In addition, the ICA-3110 includes 64-CH central management software for efficient monitoring. The ICA-3110 is indisputably the top choice for reliable and high performance surveillance.

Camera
Image Device	1/4" progressive scan CMOS sensor
Lens	Fixed lens 2.8mm, F1.8 Angle of view: Horizontal: 77.78 degrees Vertical: 49.55 degrees
Min Illuminator	Color : 0.2 Lux (AGC ON) B / W: 0.1 Lux (AGC ON)
Electronic Shutter	Auto, 1/5 ~ 1/10,000 sec
Effective Pixels	1280 x 800 pixels
LEDs	7 LEDs, 850nm
IR distance	5 meters
Video
Video Compression	H.264 / M-JPEG
Video Resolutions	H.264: 1280 x 800 / 1280 x 720 / 640 x 480 / 320 x 240 / 176 x 144 M-JPEG: 1280 x 800 / 1280 x 720 / 640 x 480 / 320 x 240 / 176 x 144
Frame Rate	Up to 30fps for all resolution
Image Setting	Brightness, Contrast, Hue, Saturation, Sharpness, AGC, Shutter Time, Sense-up, D-WDR, Anti Fog, Lens Distortion Correction, Flip, Mirror, Day and Night adjustable, Red Gain and Blue Gain, Denoise
Streaming	Simultaneously multi-profile streaming M-JPEG streaming over HTTP Supports 3GPP mobile surveillance Controllable frame rate and bandwidth Constant and variable bit rate (H.264)
Audio
Audio Streaming	2-way Audio
Audio Compression	RTSP: G.711 64kbps, G.726 32, 24kbps 3GPP: AMR
Microphone	Built-in microphone input
Audio Output	3.5mm phone jack
Network and Configuration
Network Standard	IEEE 802.3 10Base-T IEEE 802.3u 100Base-TX
Protocol	IPV6, IPv4, HTTP, HTTPS, SNMP, QoS/DSCP, Access list, IEEE 802.1X, RTSP, TCP/IP, UDP, SMTP, FTP, PPPoE, DHCP, DDNS, NTP, UPnP, 3GPP, SAMBA, Bonjour
Security	Password protection, IP address filtering, HTTPS encrypted data transmission, 802.1X Port-based authentication for network protection, QoS/DSCP
Users	10 clients on-line monitoring at the same time
System Integration
Application Programming Interface	Open SDK/API for software integration ONVIF Compliant
Alarm Triggers	Intelligent video motion detection and external input 3-zone video motion detection
Alarm Events	File upload via FTP, Samba, SD card or email External output activation
General
Power Requirement	IEEE 802.3af Class 3
Power Consumption	PoE Max: 2.88W (IR ON); 2.23W (IR Off)
Operating Temperature	0 ~ 45 degrees C
Operating Humidity	10 ~ 95% (non-condensing)
Weight	135g
Dimensions (? x L)	44 x 95 mm
Emission	CE, FCC

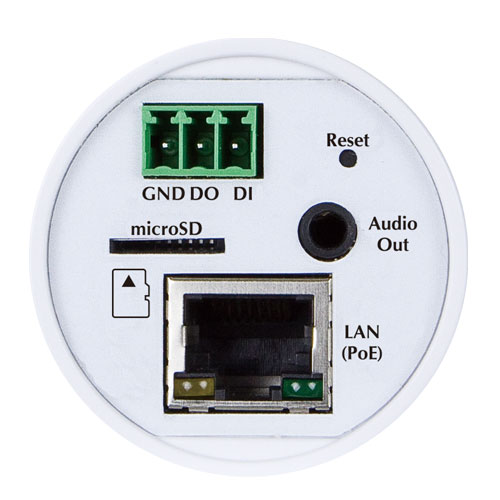

Connectors	10/100 Mbps Ethernet, RJ-45 Terminal block for 1 alarm input, 1 output and factory default reset Micro SD/SDHC card (Max. 32GB, Class 6)

订购信息
ICA-3110	HD Ultra-mini Bullet IR IP Camera
