VIP-1010PT

High Definition PoE IP Phone (1-Line)

概述

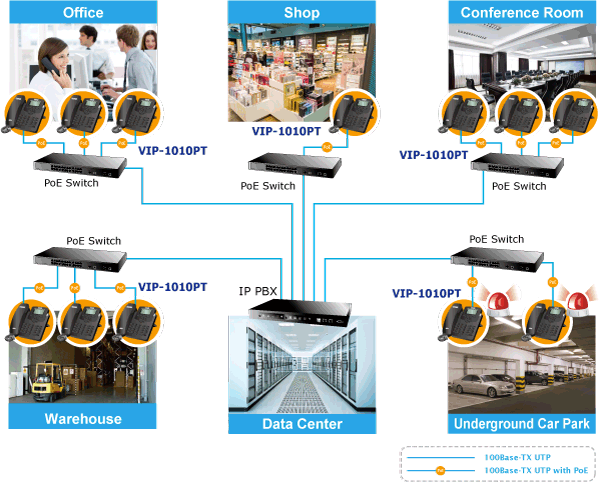

应用场景
功能特性
产品规格
下载
相关产品

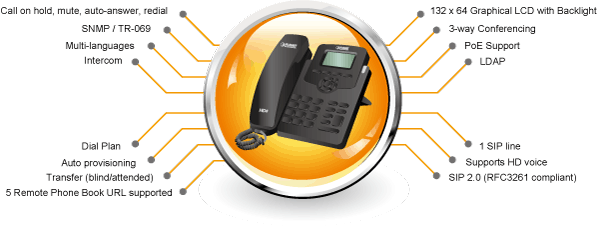

Cost-effective, High-performance PoE VoIP Phone
To build high-performance VoIP communications at a low cost, PLANET has integrated high-definition voice into a cost-effective SIP phone. It complies with IEEE 802.3af PoE interface for flexible deployment. The VIP-1010PT makes it simple for the enterprise featuring voice and data system or expanding voice system to new locations. It helps the company to save money on long-distance calls; for example, the remote workers can dial in through a Unified VoIP Communication System just like an extension call but no long-distance call charge would occur. The VIP-1010PT also allows call to be transferred to anyone at any location within the voice system, which enables the enterprise to communicate more effectively and is helpful to streamline business processes.

High-quality HD VoIP Voice
The VIP-1010PT delivers HD voice (High-definition Voice) which is the next generation of voice quality for telephony audio, making the quality of voice better than that (toll quality) of the standard digital telephony and even close to that of a room conversation. HD voice is transmitted in the audio frequency range of 50 Hz to 7 kHz or higher over telephone lines, resulting in higher quality voice and clearer communication.

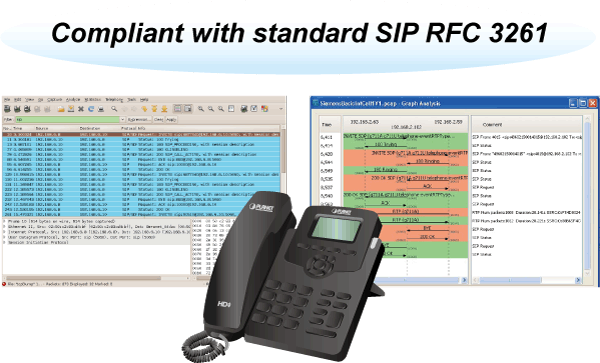

Standard Compliance
The VIP-1010PT supports Session Initiation Protocol 2.0 (RFC 3261) for easy integration with general voice over IP system. The VIP-1010PT is able to broadly interoperate with equipment provided by VoIP infrastructure providers, thus enabling them to provide their customers with better multi-media exchange services.

Enhanced, Full-Featured Business IP Phone

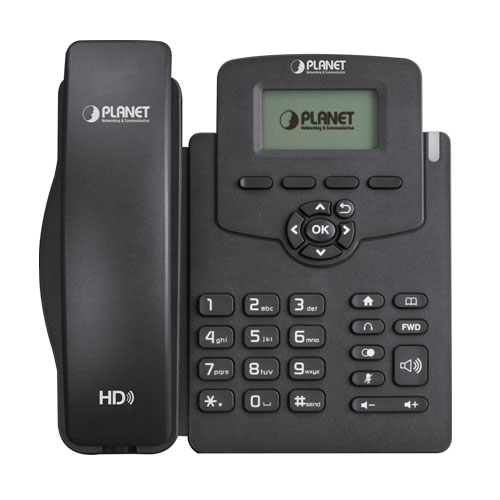

The VIP-1010PT is a full-featured, enhanced business IP Phone that addresses the communication needs of the enterprises. It provides 1 voice line and dual 10/100Mbps Ethernet. Furthermore, the VIP-1010PT delivers user-friendly design containing a 132x64 graphic LCD with white backlight.

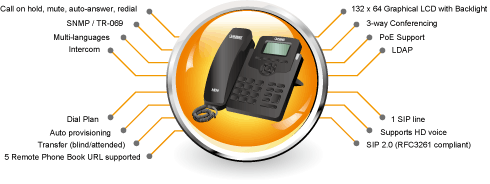

The VIP-1010PT supports all kinds of SIP-based phone features including LDAP, Call Waiting, Auto Answer, Music on Hold, Caller ID 3-way Conferencing, Call on Hold, Call Forwarding, Black List, DTMF Relay, In-Band, Out-of-Band (RFC 2833) and SIP Info, among others. Besides office use, the VIP-1010PT is also the ideal solution for VoIP service offered by Internet Telephony Service Provider (ITSP).

硬件特性
1线	1-line cost-effective IP phone
显示屏	132 x 64 graphic LCD with blue backlight
功能键	4 Soft Keys 10 Programmable Keys
协议与标准
数据网络技术	MAC Address (IEEE 802.3) IPv4 (RFC 791) Address Resolution Protocol (ARP) DNS: A record (RFC 1706), SRV record (RFC 2782) Dynamic Host Configuration Protocol (DHCP) client (RFC 2131) TCP (RFC 793) User Datagram Protocol UDP (RFC 768) Real-time Protocol RTP (RFC 1889, 1890) Real-time Control Protocol (RTCP) (RFC 1889) Simple Network Time Protocol (SNTP) (RFC 2030) Backward compatible with RFC 2543 Session Timer (RFC 4028) SDP (RFC 2327)
语音网关	SIP version 2 (RFC 3261, 3262, 3263, 3264) Message Waiting Indicator (RFC 3842) Voice algorithms: - PCMA - PCMU - G.729 - G.722 - G723_53 - G23_63 - G726_32 Dual-tone Multi-frequency (DTMF), In-Band and Out-of-Band (RFC 2833) (SIP INFO) Voice Activity Detection (VAD) with Silence Suppression Comfort Noise Generation Echo Cancellation Message
功能特性
电话特性	1 line (supporting 1 SIP account) Supports call waiting, call forwarding, call transfer 3-way conferencing Call on hold, mute, auto-answer, redial Phonebook (500 groups), blacklist (100 groups), call logs (100 entries) 5 Remote Phone Book URL supported LDAP DND (Do Not Disturb) Volume adjustable, ring tones selectable Call Pickup/Group Call Pickup Speed Dial Intercom Daylight Saving Network Packet Capture Country Ringtone Signal Direct IP Call Auto Redial Hotline XML Browser Hot Desking Keypad Lock Action URL Multi-Languages: Default: English and Simple Chinese
IP PBX 特性	HD Voice Dial Plan SMS, Voicemail, MWI Message Notification Wideband Codec: G.722 Narrowband Codec: PCMA, PCMU, G.729, G.722, G723_53, G23_63, G726_32 VAD, CNG, Echo Canceller Full-Duplex Speakerphone
安全特性	Supports HTTPS (SSL) Supports SRTP for Voice Data Encryption Supports Login for Administration SIP Over TLS Dial without Register
网络特性	SIP V1 (RFC2543), V2 (RFC3261) Static IP/DHCP for IP configuration 3 DTMF modes: In-Band, RFC2833, SIP INFO HTTP/HTTPS Web Server for Management NTP for Auto Time Setting
管理功能	Auto provisioning using FTP/TFTP/HTTP/HTTPS/PnP Dial through IP PBX using Phone Number Dial through IP PBX using URL Address Configuration Managements with Web, Keypad on the phone and Auto Provisioning SNMP TR069
环境
Power Requirements	5V DC, 1.2A IEEE 802.3af
Operating Temperature	0 ~ 40 degrees C
Operating Humidity	10 ~ 65% (non-condensing)
Weight	651g (without box) / 920g (with box)
Dimensions (W x D x H)	193 x 190 x 35 mm
Emission	CE, FCC

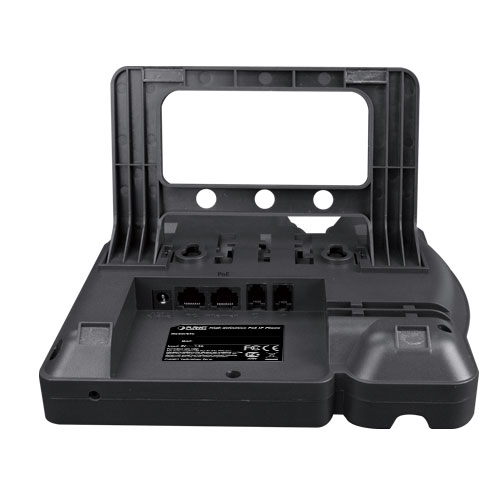

Connectors	Two 10/100BASE-TX RJ-45 Ethernet ports Handset: RJ-9 connector Headphone: RJ-9 connector DC power jack Built-in speakerphone and microphone

订购信息
VIP-1010PT	High Definition PoE IP Phone (1-Line)
