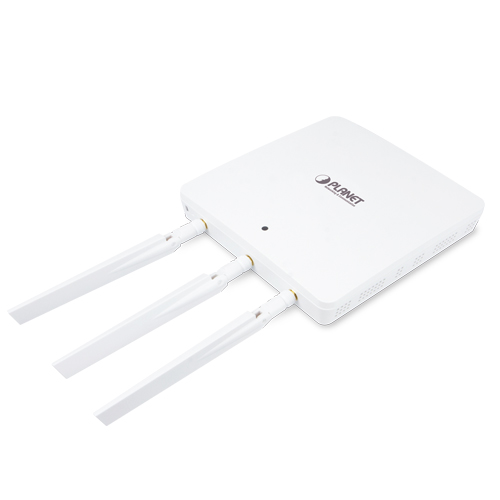

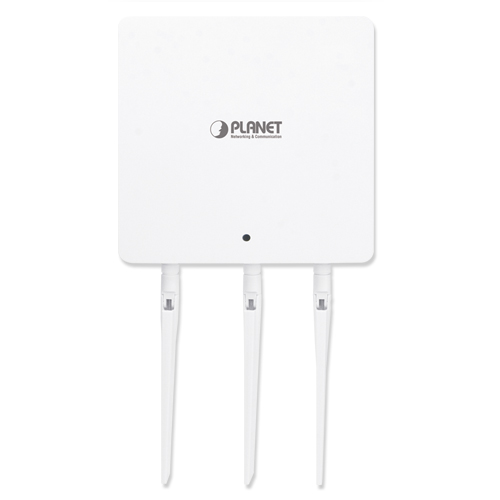

Ultra-high-speed, Next-generation Enterprise Wireless
PLANET WDAP-1750AC is an enterprise PoE access point with the latest 802.11ac wireless technology, advanced management features and superior encryption standard yet cost-effective. Meeting enterprise demand, the WDAP-1750AC has enhanced security and management features including multiple SSIDs, IEEE 802.1Q VLAN, WPA / WPA2-enterprise security, RADIUS MAC authentication and so forth. With the multiple reversed-polarity SMA male antenna connectors, the WDAP-1750AC is able to connect its suitable external antenna and booster in such wireless environments as warehouses, campuses and enterprises.
Extraordinary 11ac Dual Band Wireless Technology

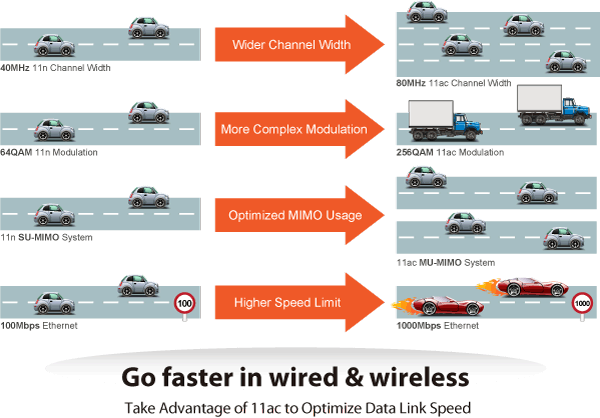

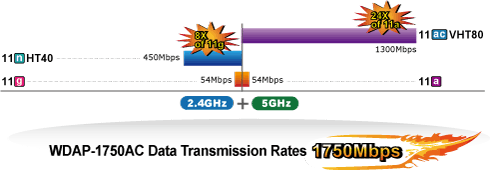

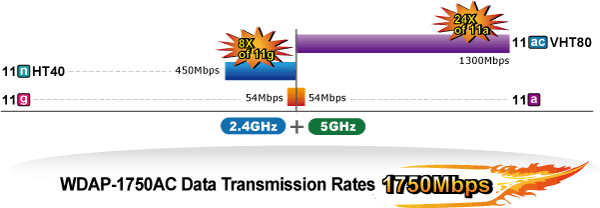

The WDAP-1750AC supports IEEE 802.11a/b/g/n/ac dual band standards with 3T3R MIMO technology; therefore, it provides the wireless speed up to 450+1300Mbps, which is 24X faster than the 11a access point at 5GHz frequency and 8X faster than the 11g access point at 2.4GHz frequency. The incredible wireless speed makes it ideal for handling multiple HD movie streams, high-resolution on-line games, stereo music, VoIPs and data streams at the same time stably and smoothly.

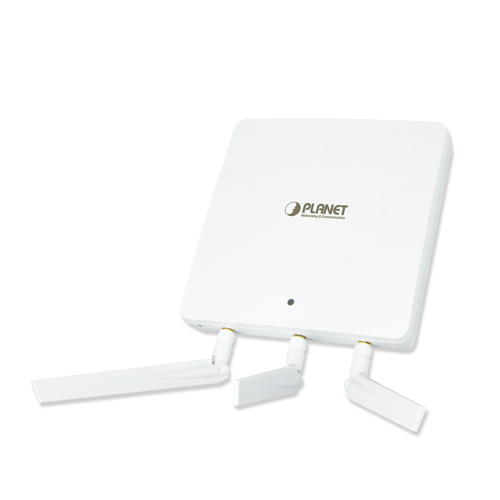

| | | | | | 11ac Innovations Bring Excellent Data Link Speed
The WDAP-1750AC has 3 detachable highly-sensitive antennas which provide stronger signal and excellent coverage even in the wide-ranging or bad environment. With adjustable transmit power option, the administrator can flexibly reduce or increase the output power for various environments, thus reducing interference to achieve maximum performance. To provide extremely high-speed user experience, the WDAP-1750AC adopts IEEE 802.11ac technology to extend the 802.11n 40MHz channel binding to 80MHz and the implementation of 256-QAM modulation where higher transmitting/receiving rates go up to 1300Mbps in 5GHz less interference frequency band. In addition, the WDAP-1750AC is equipped with Gigabit LAN port to eliminate the restriction of 100Mbps Fast Ethernet wired connection to let users fully enjoy the high speed provided by wireless. The IEEE 802.11ac also optimizes MU-MIMO (Multi-User MIMO) mechanism to serve multiple devices simultaneously.
| | | | | | Flexible Deployment with PoE Feature

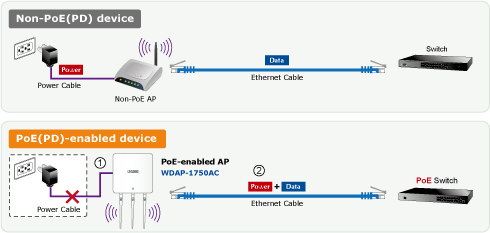

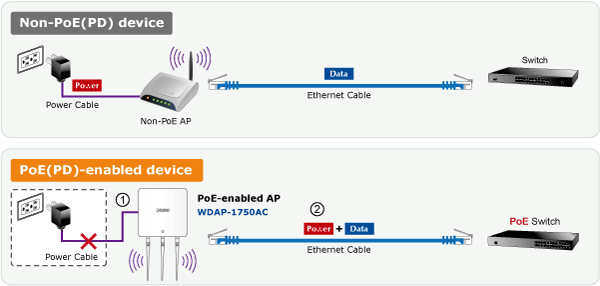

Compliant with the IEEE 802.3at Power over Ethernet standard, the WDAP-1750AC can be powered and networked by a single UTP cable. It thus reduces the needs of extra cables and dedicated electrical outlets on the wall, ceiling or any other place where it is difficult to reach. The wireless network deployment becomes more flexible and worry-free from the power outlet locations. As it is a highly-reliable industrial wall-mount design, the WDAP-1750AC can be firmly installed on the wall conveniently.
| | | | | | Wireless Security Encryption and Wireless Value-added Features
In aspect of security, besides 64/128-bit WEP encryption, the WDAP-1750AC is integrated with WPA / WPA2, WPA-PSK / WPA2-PSK and 802.1x Radius authority to secure and protect your wireless LAN. It provides the wireless MAC filtering and SSID broadcast control to consolidate the wireless network security and prevent unauthorized wireless connection. Being an access point, the WDAP-1750AC supports the VLAN function to allow multiple SSIDs (32 sets of SSIDs) to access Internal VLAN topology. Moreover, its Wi-Fi Multimedia (WMM) mechanism provides enhanced QoS over wireless connection for better performance in multimedia transmission like on-line gaming and video streaming, which are classified as a top priority.
| | | | | | Multiple Operation Modes for Various Applications

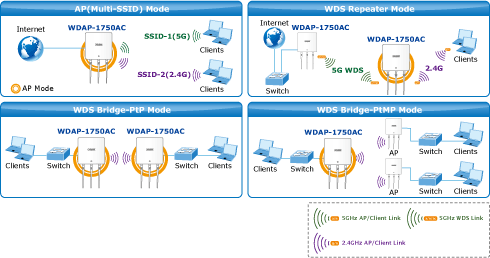

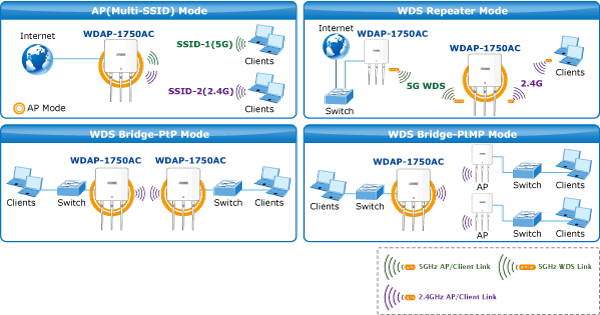

The WDAP-1750AC supports AP, WDS Bridge, and Repeater modes, through which it provides more flexibility for users when wireless network is established. Compared with general wireless access point, the WDAP-1750AC offers more powerful and flexible capability for wireless clients.
| | | | | | Easy Installation and Management
With user-friendly Web UI, the WDAP-1750AC is easy to install, even for users who never experience setting up a wireless network. Furthermore, with SNMP-based management interface, the WDAP-1750AC is convenient to be managed and configured remotely in a small business wireless network.
| | | | | |

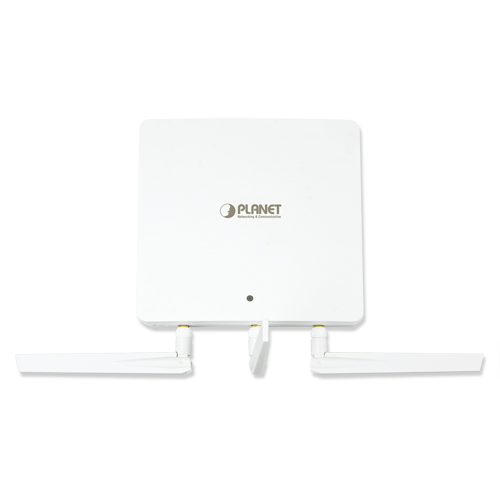

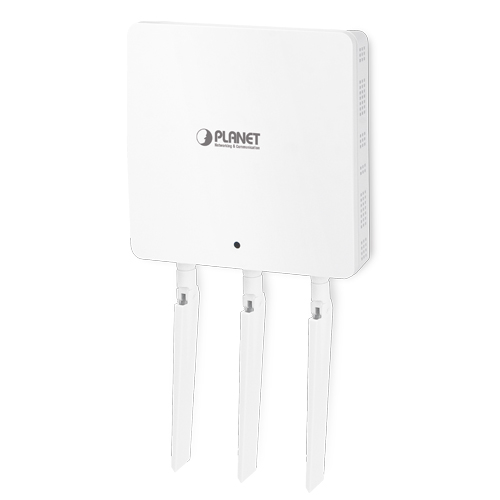

Wall-mount Design Perfect for Room Installation
The WDAP-1750AC is adopted with the latest 802.11ac technology to provide extreme high-speed wireless experience for users. With the stylish wall-mount design, you dont need to spend extra time and cost to deploy the wireless network. Its sleek and fashionable appearance adapted to the room can match any decor without affecting the original interior design. Furthermore, the WDAP-1750AC supports standard 802.3at PoE power scheme, effectively reducing the cabling cost. The WDAP-1750AC, with the SNMP supported, brings the most convenience to system administrators or machine operators. No expensive instruments or complex back-end subscriber managed systems are required for deployment.
Extreme High Speed and Dual Band Make Wi-Fi transmission More Powerful

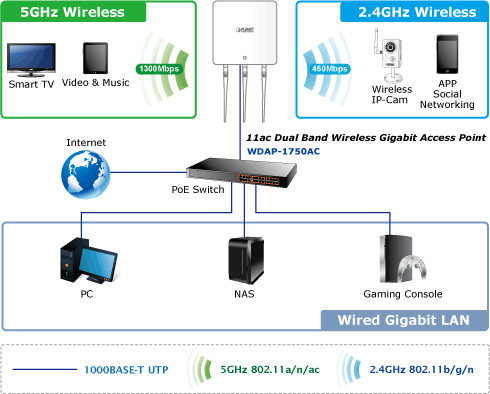

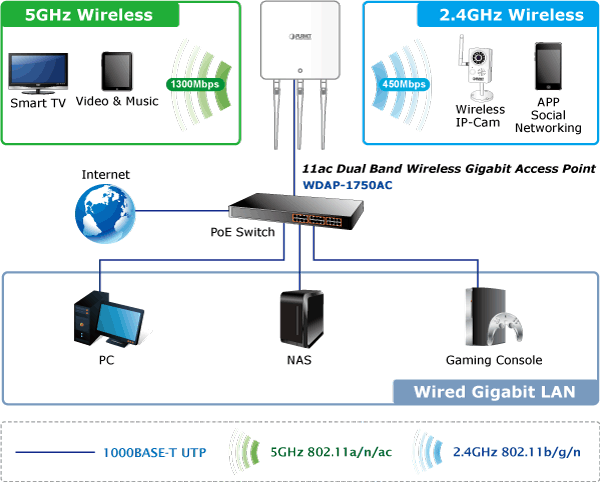

The WDAP-1750AC delivers the dual band technology to avoid signal interference and ensure the best Wi-Fi performance. It allows you to check e-mail and surf the Internet via the 2.4GHz band and simultaneously watch high-definition (HD) video or any other multimedia application via 5GHz band. Moreover, the Gigabit Ethernet port of the WDAP-1750AC offers ultra-fast wired connections that utilize the maximum wireless bandwidth; therefore, users will have real wireless speed over 100Mbps. With outstanding stability of high-speed wireless transmission, the WDAP-1750AC can provide users with excellent experience in multimedia streaming with your mobile devices anywhere, anytime.
| | | | | | Secured and Managed Enterprise-class WLAN

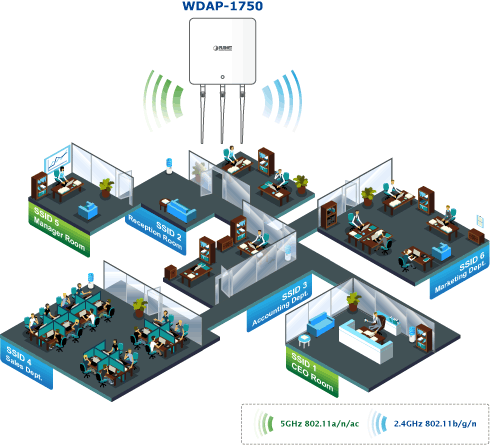

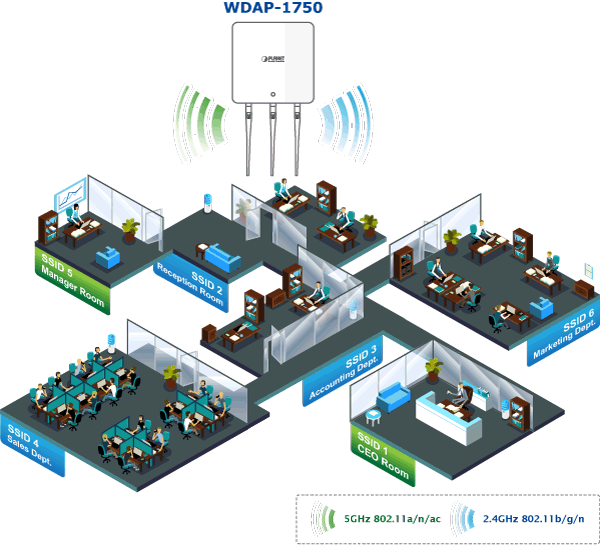

With support for high-level encryption mechanism, the WDAP-1750AC can effectively prevent your information from eavesdropping by unauthorized users. Allowing multiple different SSIDs to be used simultaneously and cooperating with the VLAN support, the WDAP-1750AC helps network administrators define separate wireless subnets for various class-of-service and security policies.
| | |
Standard Compliant Hardware Interface- Complies with IEEE 802.11ac (draft 2.0) and IEEE 802.11a/b/g/n standards
- 2 x 10/100/1000BASE-T port with PoE supporting 802.3at and 802.3af PSE (Power Sourcing Equipment)
- IEEE standard 802.3af/at PoE design
RF Interface Characteristics- Features 2.4GHz (802.11b/g/n) and 5GHz (802.11a/n/ac) concurrent dual band for more efficiency of carrying high load traffic
- 3T3R MIMO technology for enhanced throughput and coverage
- Provides multiple adjustable transmit power control
- High speed up to 1.75Gbps (450Mbps for 2.4GHz + 1300Mbps for 5GHz) wireless data rate
Comprehensive Wireless Advanced Features- Multiple Wireless Modes: AP,WDS PtP/ PtMP, and WDS Repeater
- Supports up to 32 multiple-SSIDs (2.4GHz + 5GHz) to allow users to access different networks through a single AP
- Supports VLAN function to limit the clients to access the specific internal network resource
- Supports WMM (Wi-Fi Multimedia) and wireless QoS to enhance the efficiency of multimedia application
- Supports wireless schedule to automatically enable or disable the wireless function based on predefined schedule
Secure Network Connection- Advanced security: 64/128-bit WEP, WPA / WPA2, WPA-PSK / WPA2-PSK (TKIP/AES encryption) and 802.1x Radius Authentication
- Supports MAC address filtering
Easy Installation & Management- Flexible deployment with standard 802.3at PoE/ PD supported
- Web-based configuration of HTTP/HTTPS/SSH/CLI
- SNMP-based management interface
- System status monitoring includes DHCP Client and System Log

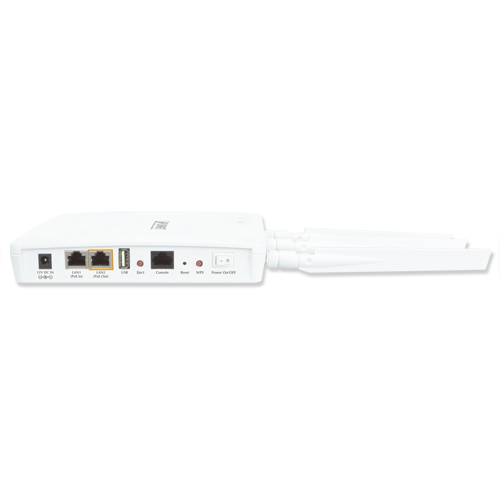

| | |
| 硬件规格 |
| LAN接口 |
2 x 10/100/1000BASE-T RJ45 port
Auto-negotiation and auto MDI/MDI-X
|
| 天线增益 |
3 x 2dBi SMA antenna |
| 重置按钮 |
Press over 5 seconds to reset the device to factory default |
| LED指示灯 |
PWR
Allow LED to turn off via software control
|
| 材质 |
Plastic |
| 尺寸 |
182 x 182 x 30 mm |
| 重量 |
470g |
| 电源需求 |
DC Input: 12V DC, 4A12V DC, 4A
PoE Input: IEEE 802.3at PoE+, 48~56V DC in-line power |
| 功率消耗 |
20W (without PSE) |
| ESD 保护 |
�8kV air-gap discharge, �4kV contact discharge |
| 装配 |
Wall mount / Desktop |
| 无线端口特性 |
| 标准 |
IEEE 802.11ac (draft 2.0) 5GHz
IEEE 802.11a/n 5GHz
IEEE 802.11b/g/n 2.4GHz
|
| 运行信道 |
2.4GHz America/ FCC: 1~11
??? Europe/ ETSI: 1~13
5GHz: America/ FCC: 36, 40, 44, 48, 149, 153, 157, 161, 165
??? Europe/ ETSI: 36, 40, 44, 48
*5GHz channel list will vary in different countries according to their regulations.
|
| 天线结构 |
802.11ac: 3T3R MU-MIMO
802.11n: 3T3R MIMO
|
| 调制 |
DSSS |
| 数据调制 |
802.11ac: OFDM (BPSK / QPSK / 16QAM / 64QAM / 256QAM)
802.11a/g/n: OFDM (BPSK / QPSK / 16QAM / 64QAM)
802.11b: DSSS (DBPSK / DQPSK / CCK)
|
| 频带模式 |
2.4G / 5G concurrent mode |
| 频率范围 |
2.4GHz: America/ FCC: 2.412~2.462GHz
??? ?Europe/ ETSI: 2.412~2.484GHz
5GHz: America/ FCC: 5.180~5.240GHz, 5.725~5.850GHz
??? Europe/ ETSI: 5.180~5.240GHz
|
| 信道频宽 |
802.11ac: 20/40/80MHz
802.11n: 20/40MHz
|
| 传输距离 |
802.11ac (draft): up to 30m
802.11n: up to 70m
802.11g: up to 30m
The estimated transmission distance is based on the theory. The actual distance will vary in different environments.
|
| 最大. RF功率 |
5GHz:
??802.11ac (VHT20/40/80): 27.5dBm @MCS0
??802.11ac (VHT20/40/80): 22.5dBm @MCS7
??802.11ac (VHT20/40/80): 19.5dBm @MCS9
??802.11n (HT20/40): 27.5dBm @MCS0/MCS8
??802.11n (HT20/40): 22.5dBm @MCS7/MCS15
??802.11a: 26.5dBm @6Mbps
???? ??22.5dBm @54Mbps
2.4GHz:
??802.11n (HT20/40): 27.5dBm @MCS0
??802.11n (HT20/40): 22.5dBm @MCS7
??802.11g: 27.5dBm @6Mbps
??802.11g: 23.5dBm @54Mbps
??802.11b: 27.5dBm @1Mbps
|
| 接收灵敏度 |
5GHz:
??802.11ac (VHT20): -64dBm @MCS9
??802.11ac (VHT40): -61dBm @MCS9
??802.11ac (VHT80): -58dBm @MCS9
??802.11n (HT20): -87dBm @MCS0, -67dBm @MCS7
??802.11n (HT40): -84dBm @MCS0, -63dBm @MCS7
??802.11a: -71dBm @54Mbps
2.4GHz:
??802.11n (HT20/40): -87dBm @MCS0
??802.11n (HT20/40): -67dBm @MCS7
??802.11g: -70dBm @54Mbps
??802.11b: -90dBm @1Mbps
|
| 软件特性 |
| 无线工作模式 |
? AP (Access Point)
? Repeater (WDS + AP) ?
? WDS PTP (Point to Point)
? WDS PTMP (Point to Multipoint)
|
| 加密安全 |
? WEP (64/128-bit) encryption security
? WPA / WPA2 (TKIP/AES)
? WPA-PSK / WPA2-PSK (TKIP/AES)
? 802.1x Authenticator
|
| 无线安全 |
Wireless MAC address filtering
Supports WPS (Wi-Fi Protected Setup)
Enable/ Disable SSID Broadcast
|
| 高级无线功能 |
WMM (Wi-Fi Multimedia), Max. Associated Station Number
Multiple SSIDs: up to 16 at 2.4GHz and 16 at 5GHz
Wireless Isolation: Enable it to isolate each connected wireless client from communicating with each other
WLAN L2 isolation (AP mode)
Provides wireless statistics
|
| 最大.客户端 |
Wired: 253
2.4GHz Wireless: 50
5GHz Wireless: 50 |
| LAN端口 |
Built-in DHCP server supporting static IP address distribution
Supports UPnP
Supports 802.1Q VLAN
|
| 系统管理 |
Web-based (HTTP) management interface
SNTP synchronization
Easy firmware upgrade
Supports scheduling reboot
Supports Smart Discovery Utility
|
| 标准一致性 |
| IEEE 标准 |
IEEE 802.11ac (draft 2.0, 3T3R, up to 1300Mbps)
IEEE 802.11n (3T3R, up to 450Mbps)
IEEE 802.11g
IEEE 802.11b
IEEE 802.11i
IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3ab 1000BASE-T
IEEE 802.3x Flow Control
|
| 其他协议与标准 |
CSMA/CA, CSMA/CD, TCP/IP, DHCP, ICMP, SNTP |
| 环境与认证 |
| 温度 |
Operating: 0 ~ 50 degrees C
Storage: -20 ~ 60 degrees C
|
| 湿度 |
Operating: 10 ~ 90% (non-condensing)
Storage: 5 ~ 90% (non-condensing)
|
| 法规 |
FCC, CE |
