High-definition Voice Conferencing for Rooms of Any Size

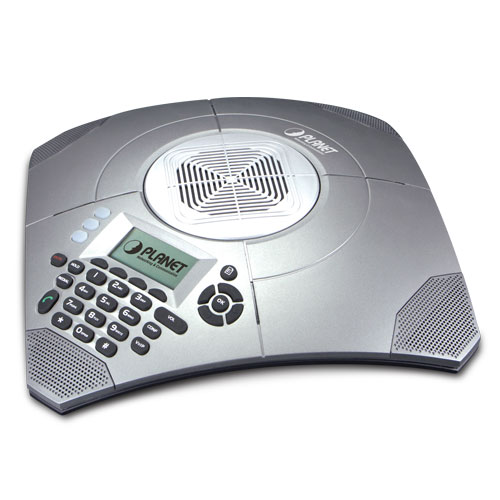

In a world where conference calls with partners, vendors, remote workers and global teams are on the rise, PLANET VIP-8030NT HD voice conference IP phone is perfectly designed for use in middle to large conference rooms. The VIP-8030NT delivers superb voice quality, expansive microphone pickup and advanced audio processing. Its integrated, special microphones ensure that your interlocutors feel as if you are sitting in the neighboring office, not on the other side of the world!

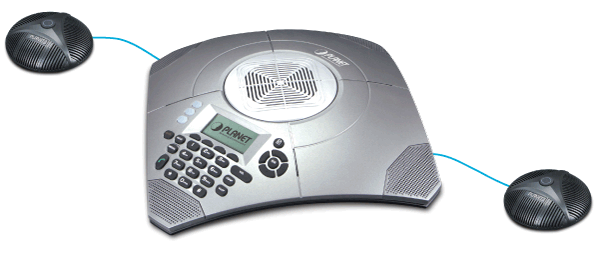

| | | | Extended Microphone Makes Communication Clearer
Although there are four microphones built in the VIP-8030NT, the communication between the two speakers could be unclear over a long-distance call. However, with the extended microphone, this problem could be solved. The extended microphone also provides a quick button to isolate speakers voice, thereby the speakers will not be interrupted by an unknown third party.
| | | | Recorded Conference Contents Saved on SD Card

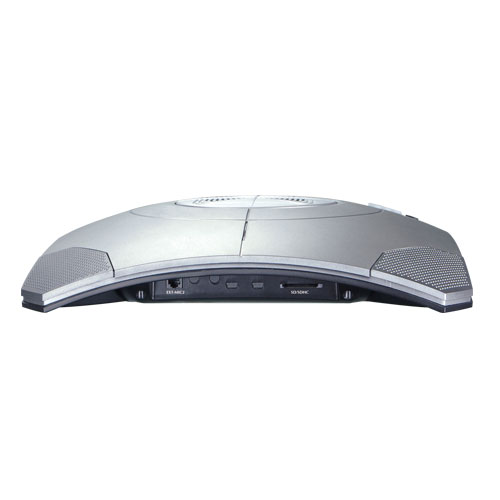

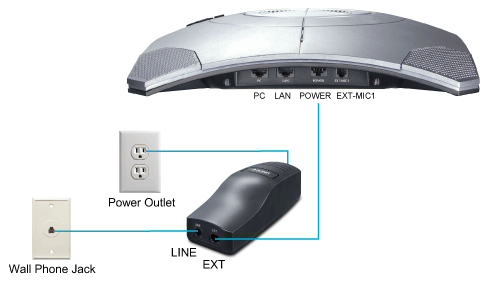

The VIP-8030NT transmits power and voice over the RJ45 cable and has a special specification that helps to avoid an incorrect cable plug-in. The VIP-8030NT can start a conference with the RJ45 cable, meaning no extra cable is necessary. The contents of the conference can be recorded and saved on the SD card, where the recorded contents can be played.

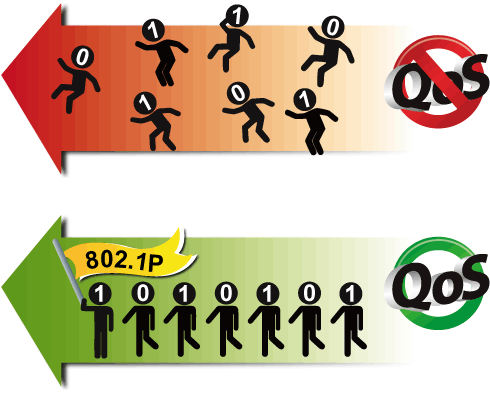

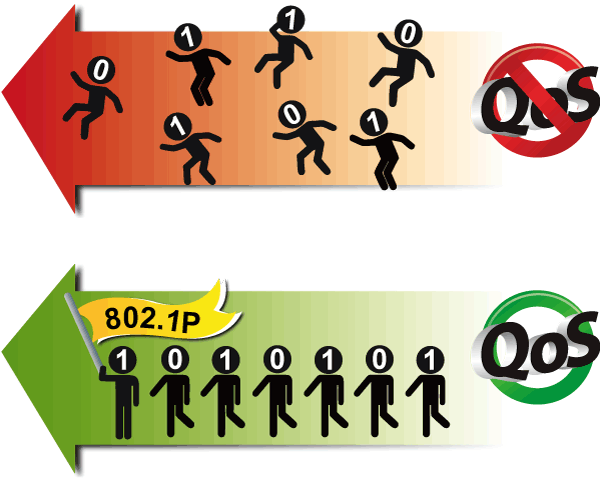

| | | | Secure, High-quality VoIP Communication
The VIP-8030NT can effortlessly deliver secured toll voice quality by voice or SIP QoS (Quality of Service) and 802.1PQ VLAN tagging. Using voice and data VLAN can easily separate the data and voice, thus maintaining the best quality.
| | | |

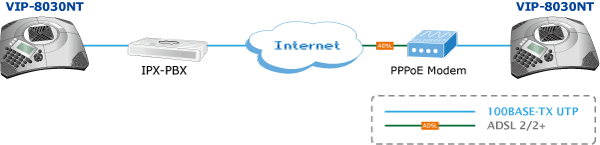

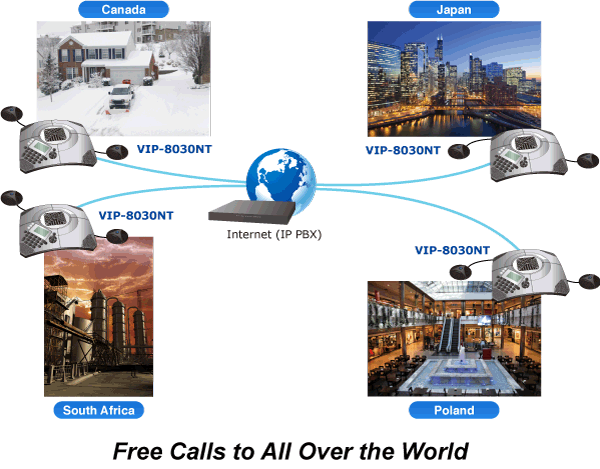

VoIP Conference Call
The VIP-8030NT provides audio conference service to any meeting room and auditorium. Its built-in SD card slot helps record any important meetings.

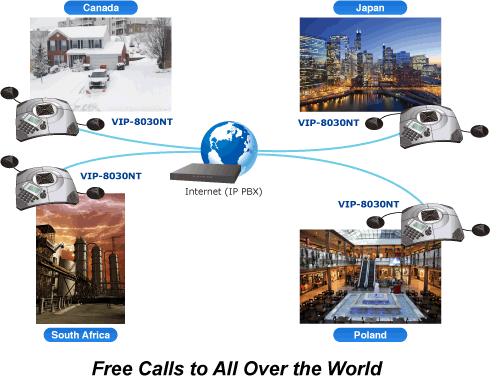

| | | | IP PBX Mode
The VIP-8030NT features IP PBX mode to deliver voice over a network and interoperates with the normal Public Switched Telephone Network (PSTN).
| | | |
Highlights- Supports 3 SIP voice lines
- Supports HD voice
- 128 x 64 pixel LCD display with ivory backlight
- 3-way conferencing
- Echo cancellation, hi-fi technology of wideband voice communication
- Connection type for add-on microphones for a larger recording range
Network Protocol- SIP V1 (RFC2543), V2 (RFC3261)
- Voice codec support: G.711, G.726, G.729, iLBC, GSM
- Supports STUN, outbound proxy
- Static IP/DHCP for IP configuration
- 3 DTMF modes: In-band, RFC2833, SIP info
- HTTP/HTTPS Web server for management
- NTP for auto time setting
Telephone Features- Supports 3 SIP accounts
- Built-in SD card slot
- Recording file can be played on the unit
- Speaker volume with adjustable 14 levels reaches 90db
- Call Hold, Call Waiting, Call Forward, Hotline
- Caller ID display, DND, auto-answer
- Stores 64 groups of incoming calls and outgoing calls
- FSK/DTMF Caller-ID detection and display
- Intelligent speech mixer and dynamic noise suppression
| |

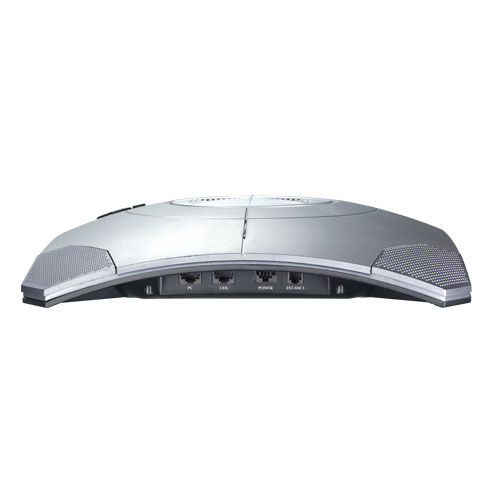

硬件 |
端口 |
LAN
1 x 100BASE-TX RJ45 for LAN
PC
1 x 100BASE-TX RJ45 for PC
EXT-MIC
2 x RJ9 for microphone |
音频输入 |
4 x microphone |
音频输出 |
1 x full duplex hands-free speakerphone |
LED 指示灯 |
4 x power LED
3 x SIP LED
|
软件 |
音频标准 |
G.711, G.726, G.729, iLBC, GSM |
网络协议 |
SIP 2.0 RFC 3261,TCP/IP, UDP, RTP,HTTP, ARP, ICMP, DNS, DDNS, DHCP (client), NTP, Telnet |
回音消除 |
G.168 |
接入方式 |
Static IP, PPPoE, DHCP |
电话功能 |
网络功能 |
DHCP Client on LAN
Main DNS and secondary DNS server
NTP Client
QoS with DiffServ
|
基本特性 |
3 SIP servers
Voice Gain Setting, VAD, CNG
Supports jitter buffer
Supports SIP domain, SIP authentication (none, basic)
DNS name of server, peer to peer/IP call
DTMF relay: supports Inbound, SIP info, RFC2833
Supports STUN
Volume adjustment
Professional speaker and HD voice
|
SIP 应用 |
Call Forward
Call Transfer (blind/attended/alert)
Call Holding
Call Waiting
Call Paging and Intercom
Call Park/Pickup
Redial
Click to dial
|
呼叫控制功能 |
Do not disturb (DND)
Auto answer
Caller ID
Dial without registration
|
高级应用 |
Friendly graphic menu
Voice recording during talking, auto answer and local
incoming calls, outgoing calls and missing calls
Supports phonebook of 140 records
|
管理 |
Web and keypad management
Management with different access rights
Automatic upgrades/configuration deployment
|
