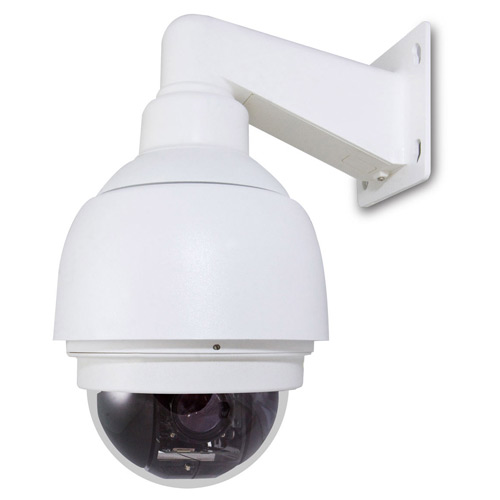

H.264 36x Outdoor Speed Dome IP Camera

ICA-H652

H.264 36x Outdoor Speed Dome IP Camera

概述
应用场景
功能特性
产品规格
下载
相关产品

Pan, Tilt and Zoom Capabilities for Wide Area Coverage

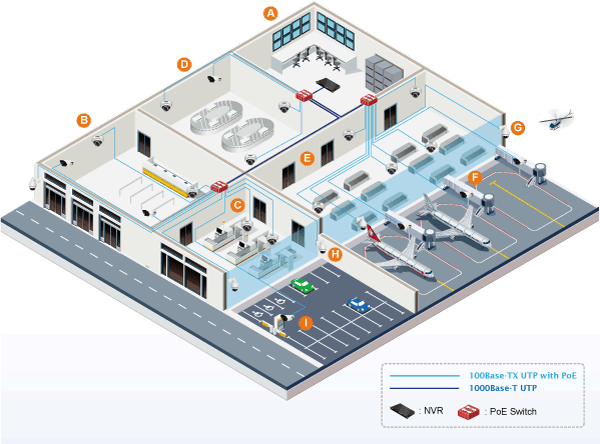

PLANET ICA-H652 Speed Dome Network Camera is designed for the most demanding video surveillance applications, with outstanding, full frame rate video in resolutions up to D1 and with optical zoom up to 36x. This camera supports H.264, and M-JPEG compression formats and delivers excellent picture quality in D1 resolutions at 60 frames per second (fps). Incorporating the progressive scan CMOS sensor from SONY, which is specially designed for surveillance applications, this camera provides high quality images and enable surveillance of a large area and great details when zooming in. With the powerful high-speed and precision pan/tilt/zoom capabilities, support 360 degrees continuous PAN, Tilt to ensure no dead angle surveillance. PLANET ICA-H652 are ideal for stores, banks, warehouses, parking lots, airports and train stations, as well as city and perimeter surveillance.

Day & Night Functionality
The ICA-H652 features an automatic, removable infrared-cut filter, which enables the camera to provide color video when there is sufficient light, and black/white video in dark conditions. The camera is able to maintain clear images 24 hours a day.

Exceptional Image Quality

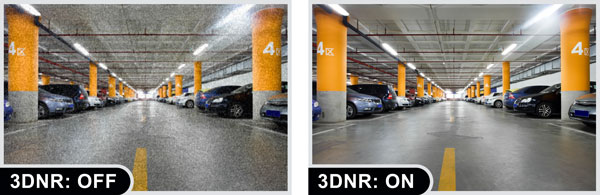

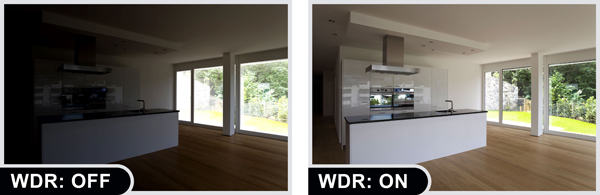

Together with powerful image processing attributes like Wide Dynamic Range (WDR) and 3-Dimension Noise Reduction (3DNR) technology, the camera is able to filter the intense backlight surrounding a subject and remove noises from video signal. The result is that an extremely clear and exquisite picture quality can be produced even under any challenging lighting conditions.

Advanced Event Management

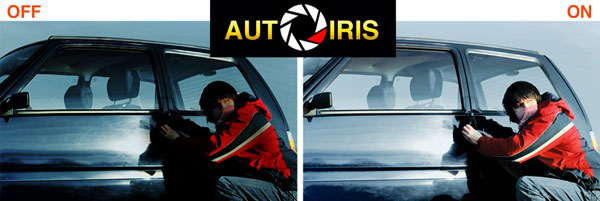

The ICA-H652 also supports a number of advanced features that give the camera increased flexibility and capabilities, including auto-iris for improving the image quality to avoid over exposure, two-way audio function, microSD/SDHC card slot for local storage, DI/DO and motion detection function for master all sudden incident. Moreover, the ICA-H652 is also equipped with IP66-rated housing which protected the camera body against rain and dust and ensures operation under extreme weather conditions.

Flexible Installation and Power Functionality
The ICA-H652 incorporates IEEE 802.3at Power over Ethernet Plus power supply that is transmitted to the camera via the network, eliminating the need for power cables and reducing installation costs. The ICA-H652 is ONVIF-compliant and therefore helps the surveillance system installation easily integrate with other manufacturers� products. The included 64-CH central management software also makes the ICA-H652 the indisputably top choice for reliable and high performance surveillance.

Camera
Image device	1/4" Sony CCD sensor
Lens	f= 3.4 ~ 122.4 mm, auto/manual-iris/focus Mechanical IR cut filter Angle of view (horizontal x vertical): H: 57.8~ 1.7 degrees V: 43.4 ~ 1.28 degrees
Min Illumination	0.001 Lux (B/W) / 0.01 Lux (color)
Effective Pixels	D1: NTSC(720 x 480 pixel) / PAL(720 x 576 pixel)
Pan/Tilt/Zoom
Optical Zoom	36x
Digital Zoom	1~12x variable
Pan Degree	0 ~ 360 degrees continuous panning
Tilt Degree	-10 ~ 190 degrees
Manual Speed	0.5 ~ 90 degrees
Preset Point	256
Preset Accuracy	0.225 degrees
Preset Speed	5~400 degrees
Sequence	8
Auto Pan	4
Camera Cruise	8
Privacy Mask	16 (w/motion detection window) 20 (w/o motion detection window)
Proportional Pan & Tilt	On/Off (Pan and tilt speed proportional to zoom ratio)
Resume after Power loss	Yes
Home Function	Preset, Sequence, Auto Pan, Cruise
Auto Flip	Digital / Mechanical / Off
Digital Slow Shutter	On / Off
Video
Video Compression	H.264 / M-JPEG
Video Resolution	D1: NTSC 720 x 480 / PAL 720 x 576 CIF: NTSC 352 x 240 / PAL 352 x 288
Horizontal Resolution	650 TVL
Frame Rate	Dual D1 @ 60fps
Image Setting	Auto electronic shutter: 1/1 ~ 1/10k sec Auto white balance: auto/ indoor/ outdoor/ ATW AGC: auto / manual 3D digital noise reduction WDR Color, sharpness Mirror/flip Privacy masks Text, time and date overlay
Streaming	Simultaneously multi-profile streaming Streaming over UDP, TCP, or HTTP Controllable frame rate and bandwidth Constant and variable bit rate (M-JPEG /H.264)
Audio
Audio Streaming	Two-way audio
Audio Compression	G.711 64kbps, G.726 32kbps, ADPCM
Microphone	External microphone input
Audio Output	Adjustable audio output gain
Network and Configuration
Standard	IEEE 802.3 10Base-T IEEE 802.3u 100Base-TX IEEE 802.3at PoE Plus
Protocol	IPv4/v6, TCP/IP, UDP, RTP, RTSP, HTTP, ICMP, FTP, SMTP, DHCP, PPPoE, UPnP, IGMP, SNMP, QoS, ONVIF
Security	HTTPS / IP filter / IEEE 802.1x
Users	8 clients on-line monitoring at the same time
System Integration
Application Programming Interface	Open API for software integration ONVIF compliant
Alarm Triggers	Input 4 sets / 5V 10k? pull up Output 2 set / relay output, max. 2A, DC 30V / 0.5A, AC 125V
Alarm Reaction	Preset / Sequence / Auto Pan / Cruise
Event Notification	HTTP / FTP / SMTP
Network Failure Detection	Yes
Environment
Power Requirements	AC 24V, 3A � 10% (system & heater) Ultra PoE (system & heater), IEEE 802.3at High Power over Ethernet (system)
Power Consumption	50 W (with heater)
Operating Temperature	-40 ~ 55 degrees C (-40 ~ 131 degrees F)
Operating Humidity	10 ~ 90% (non-condensing)
Weight (include LENS)	2.3 kg (5.11 lb)
Dimensions (?x H)	191.9 x 382.1 mm (7.5 x 11.1 in.) w/ Sunshield
Protection Class	IP66 outdoor classification, built-in fan and heater
Heater	-7 degrees C on / 3 degrees C off
Emission	CE / FCC / RoHS
Connectors	10/100Mbps Ethernet, RJ-45 AC power connector Terminal block for 4 alarm input and 2 output External MIC input / Audio out Micro SDHC card (max 32GB, Class 10) Factory default reset button

订购信息
ICA-H652	H.264 36x Outdoor Speed Dome Internet Camera
