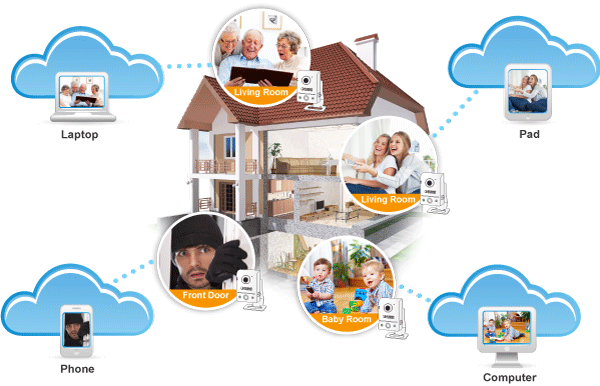

Monitor your home via Cloud IP Camera
PLANET ICA-W8100-CLD is different from other webcams in that our cloud camera can work without the need to be connected to PC. To view non-cloud camera video remotely, users need to perform many complicated and time consuming steps such as signing up for a third party dynamic IP service and reconfiguring their router. With the free App downloaded for your smart phone, you can quickly and easily view anywhere your camera feed via the ICA-W8100-CLD wirelessly. | | | | Compact Wireless Panoramic Camera for Wide View Surveillance
PLANET ICA-W8100-CLD is a compact cube camera providing 180 degree panoramic wide angle view, especially designed for indoor surveillance. Incorporating 1.3MP-resolution sensors, it supports H.264, MPEG-4, and JPEG compression formats and delivers excellent picture quality in up to 1280 x 720 pixels (720p) at 30 frames per second (fps). The unique design makes it the ideal solution to surveillance applications in homes, boutiques, stores or restaurants.

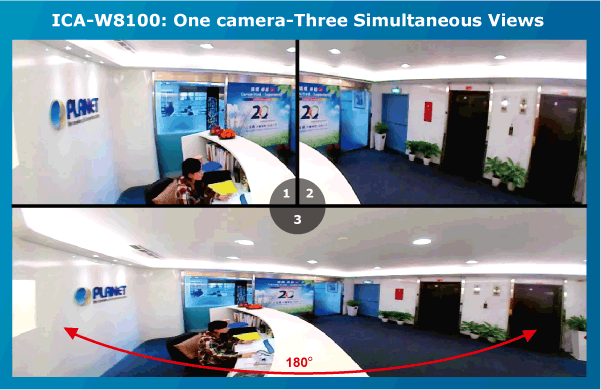

| | | | Wider Monitoring with 180 Panoramic View
The ICA-W8100-CLD wireless fisheye camera allows you to monitor all angles of a location using just one camera, thus saving lots of traditional mechanical Pan/Tilt maintenance effort. The distorted hemispherical image of the fisheye camera will be converted into the conventional rectilinear projection. Without the need of installing any other software and with the ICA-W8100-CLD, you can watch live view and utilize functions such as motion detection through the Web interface via an internet browser.
| | | | Efficient Event Management
The ICA-W8100-CLD is designed with a built-in Passive InfraRed (PIR) motion detection sensor able to detect movement as far as 5 meters away. When people pass by or an emergency happens in the specified areas, the ICA-W8100-CLD will detect and start recording automatically. It provides an additional function of alarm notification that can send the captured images via the micro SD/SDHC card slot for local storage.
| | | | Enhanced Video Quality & 2-way Audio Support
The ICA-W8100-CLD provides the industry a more comprehensive set of performance enhancing features including Auto Electronic Shutter (AES) and Auto White Balance (AWB). Besides, the ICA-W8100-CLD supports 2-way audio to strengthen the event management capabilities.

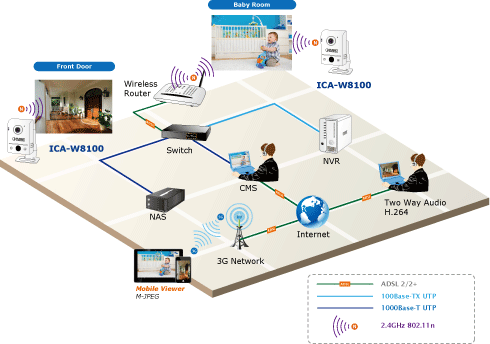

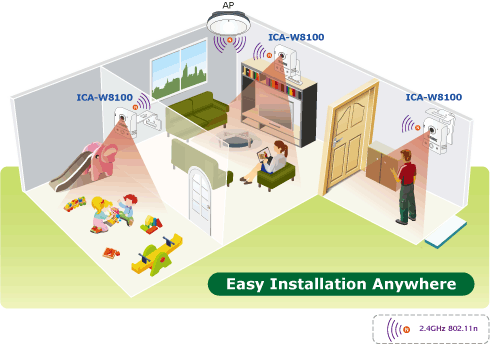

| | | | High Quality Streaming via 11n Wireless Connectivity
The ICA-W8100-CLD adopts IEEE 802.11n wireless technology to communicate at maximum wireless signal rate and ensures secure transmission with WEP and WPA encryptions. It allows you to stream high quality video to remote sites and mobile devices. A Site Survey feature also allows you to view and connect to nearby wireless networks with ease. Complying with ONVIF, the ICA-W8100-CLD is therefore interoperable with the third brand NVR in the market, which greatly supports users to integrate with their existing surveillance network. It also includes 64-CH central management software for ease of maintenance and remote monitoring. The ICA-W8100-CLD is indisputably the top choice for reliable and high performance surveillance.
| | | |

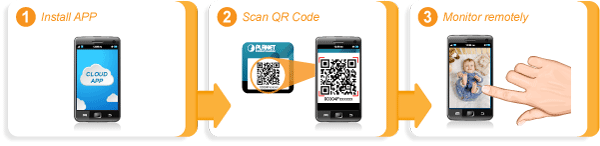

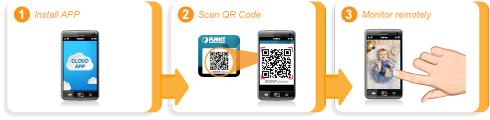

Access Anywhere - Cloud Services makes it easy
To make home monitoring a truly simple experience, we have created CloudLync to enable you access live video feeds of your home or office from any Internet-connected computer, iPhone, iPad, or Android device anytime, anywhere. The Cloud Cameras can be viewed and managed on your personal account via CloudLync to enable you to enjoy the freedom of remote monitoring on your terms. | | | | Access Anywhere with CloudLync
With the CloudLync App for iPhone and Android, you can quickly and easily see your camera feed from anywhere with a Wi-Fi, 3G or 4G connection. No more guessing what's going on at your house while you're away.

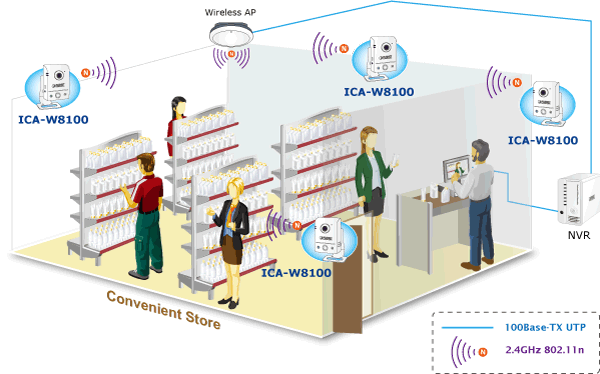

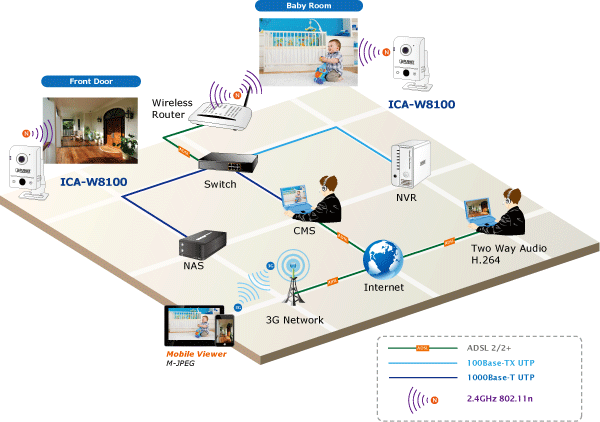

| | | | Providing various surveillance applications
PLANET ICA-W8100 provides various surveillance applications to deliver clear images in a 180 degree panoramic view. Thus, the ICA-W8100-CLD can identify all objects and people in a wide range, instead of narrow view, if installed above the front door. It is especially perfect for indoor surveillance in such places as homes, boutiques, department stores, restaurants, etc.
| | | |
Camera - Fish-Eye Lens to bring 180 degree panoramic wide angle view
- Unique Fish-Eye hardware correction technology
- 1.3 mega-pixel CMOS progressive sensor
- Infrared (PIR) Sensor for enhanced motion detection
Video / Audio- H.264, MPEG-4 and M-JPEG video compression simultaneously
- Simultaneous multi-H.264 streams support
- 2-way audio support with enhanced audio quality
Network and Configuration- Wireless 802.11n connectivity / Wi-Fi Protected Setup (WPS)
- UPnP support for network setup & configuration
- Auto MDI/MDI-X supported
- RTSP / UPnP / HTTPS protocols selectable
Easy Installation & Management- ONVIF compliant for interoperability
- Advanced e-PTZ, including preset point
- Plug & Play Smart Access Technology without IP setting in router
- Micro SD/SDHC card local video recording supported
- Cam Viewer 3 central management software supported
| |
Camera |
Image Device |
1/4" progressive 1.3 mega-pixel scan CMOS sensor |
Lens |
Fish-Eye Lens, 185.5/145/>=200 (H/V/D), F=2.0, f=0.89 mm |
Min. Illumination |
0.5 lux @ F2 |
Effective Pixels |
1280 x 720 pixels (16:9) |
PIR Sensor |
1 x Built-in sensor with adjustable 70 degrees direction
Effective Distance: 5 meters
Effective Coverage: 70 degrees
|
Video |
Video Encoder |
H.264 / MPEG-4 / M-JPEG |
Video Resolution |
H.264: 1280 x 720 / 640 x 360 / 320 x 180
MPEG4: 1280 x 720 / 640 x 360 / 320 x 180
M-JPEG: 1280 x 720 / 640 x 360 / 320 x 180
|
Frame Rate |
Up to 30fps for all resolutions |
Image Setting |
AE, AWB, Brightness, Saturation, Contrast, Mirror/Rotate, Color/BW |
Streaming |
Simultaneously multi-profile streaming
Streaming over UDP, TCP, or HTTP
M-JPEG streaming over HTTP (server push)
Controllable frame rate and bandwidth
Constant and variable bit rate (M-JPEG / H.264)
|
Rate Control |
CBR (Constant Bit Rate)
VBR (Variable Bit Rate)
|
UI Layout |
180 Single Broad View (1P)
2 PTZ Mode (2R)
180 Broad View + 2 PTZ Mode (1P2R)
|
Audio |
Audio Streaming |
2-way Audio |
Audio Compression |
RTSP: G.711 64kbps |
Microphone |
Built-in Microphone |
Audio Output |
Line Out for extra speaker |
Network and Configuration |
Network Standard |
IEEE 802.3 10Base-T
IEEE 802.3u 100Base-TX
IEEE 802.11b/g/n
|
Network Protocol |
IPv4, TCP/IP, UDP, HTTP, HTTPS, SMTP, FTP, NTP, DNS, DDNS, DHCP, ARP, Bonjour, UPnP, RTSP, RTP, RTCP, IGMP, PPPoE, ICMP, Samba |
Antenna |
Internal 3dBi |
Frequency |
2.4GHz |
RF Transmission Power |
OFDM: 13dBm
CCK: 17dBm
|
Output Power |
802.11n: 13dBm(default) +/- 1dBm
802.11g: 13dBm(default) +/- 1dBm
802.11b: 17dBm(default) +/- 1dBm
|
Receiver Sensitivity |
802.11b (11Mbps):
CCK @ 8% PER = -88dBm
802.11g (54Mbps):
OFDM @ 10% PER = -72dBm
802.11n Draft 6.0:
HT20 @ 10% PER = -66 dBm
HT40@ 10% PER= -61dBm
|
Data Rate |
802.11b: 1, 2, 5.5, 11Mbps
802.11g: 6, 9, 12, 18, 24, 36, 48, 54Mbps
802.11n: up to 150Mbps
|
Security |
Password protection / WEP and WPA Encryption |
Users |
Depends on streaming data rate used |
System Integration |
Application Programming Interface |
Open API for software integration
ONVIF
|
Alarm Triggers |
Intelligent video motion detection and PIR sensor |
Alarm Events |
File upload via FTP, e-mail or Micro SD/SDHC card
Notification via e-mail, Mobile APP, and HTTP
|
Environment |
Power Requirement |
5V DC, 2A |
Power Consumption |
6W (5VDC) |
Operating Temperature |
0 ~ 45 degrees C |
Operating Humidity |
20 ~ 80% (non-condensing) |
Weight |
134g |
Dimensions (W x D x H) |
70 x 39 x 99 mm |
Emission |
CE, FCC |

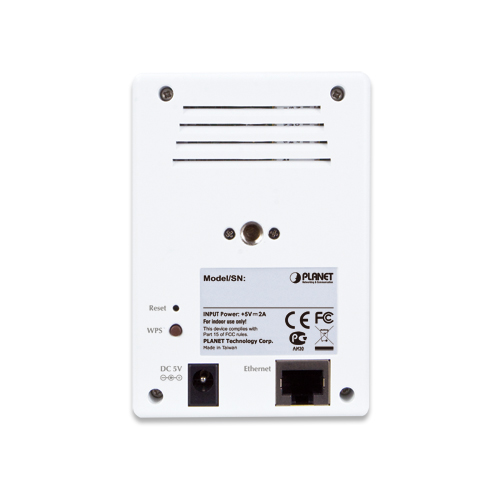

Connectors |
10/100 Mbps Ethernet, RJ-45
DC power jack
Audio out
Micro SD/SDHC card (Max 32GB, Class 6)
WPS Button
Factory default reset button
|
