POE-2400

24-Port IEEE 802.3af PoE注入器

概述
应用场景
功能特性
产品规格
下载
相关产品

Quick and Easy PoE Network Deployment
PLANET POE-2400 is a 24-port IEEE 802.3af Power over Ethernet Injector Hub, which complies with IEEE 802.3, IEEE 802.3u and IEEE 802.3af standards. With 24 10/100Base-TX Fast Ethernet ports, this device supports full 48VDC power for any remote IEEE 802.3af powered devices (PDs) such as wireless LAN access points, IP phones, and IP camera. Supporting power supply of 220 watts, the POE-2400 provides sufficient power to 24 remote PD devices.

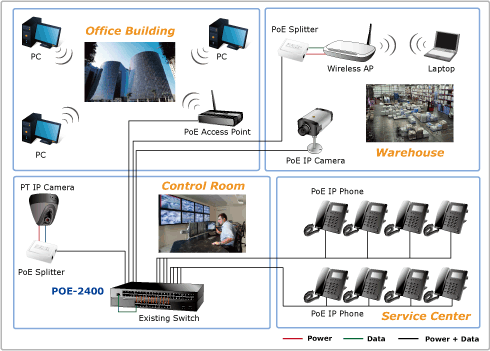

The POE-2400 is installed between a regular Ethernet switch and the powered devices, injecting power without affecting the data transmission. It offers a cost effective and quick solution to upgrade network system to IEEE 802.3af Power over Ethernet system without replacing the existing Ethernet switch.

Easy Cabling Installation

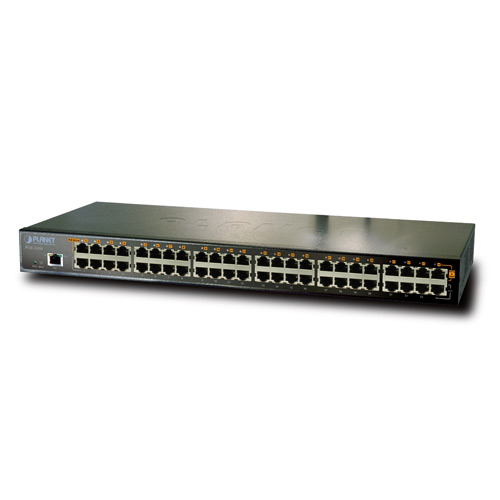

The POE-2400 is installed between a regular Ethernet Switch and the powered devices; it injects power to the PDs without affecting data transmission performance. It offers a cost effective and quick solution to upgrading network system to IEEE 802.3af Power over Ethernet system without replacing the existing Ethernet switch. There are 48 RJ-45 STP ports on the front panel of the POE-2400, of which the 24 ports are on the lower stack function as "Data input" and the other 24 ports are on the upper stack function as "PoE (Data and Power) output". The 24 "PoE output" ports are also the power injectors that transmit DC voltage to the CAT 3/4/5/5e/6 cable and transfer data and power simultaneously between the Injectors and Splitters.

Friendly, Simple Web Management Interface
To efficiently manage the powered devices, POE-2400 provides web management interface in which administrators can use the functions including port enable/disable, port priority, system configuration and user name / password change and with smart features for powered device. The PoE injector hub can auto detect the power status of each port and show messages on its Web management interface. These features also provide a cost-effective way to manage the devices via Internet whenever you are at work or at home.

订购信息
POE-2400	IEEE 802.3af 24-Port Power over Ethernet Web Management Injector Hub
