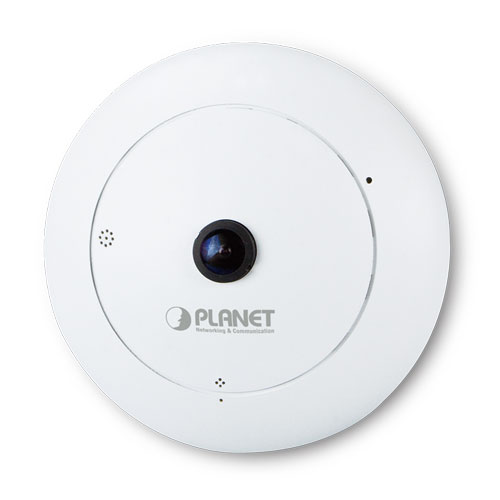

5 Mega-pixel PoE Fish-Eye IP Camera

概述
应用场景
功能特性
产品规格
下载
相关产品

Compact Panoramic Camera for Wide View Surveillance
PLANET ICA-8500 5 mega-pixel PoE Fish-Eye IP Camera supports H.264, MPEG-4, and JPEG compression formats and delivers excellent picture quality in up to 1920 x 1920 pixels at 15 frames per second (fps). Incorporating the professional 5 MP-resolution sensor, the ICA-8500 provides high quality images and panorama function with quad view to enable images of monitoring and recording from four different angles to be displayed simultaneously. It offers 180� panoramic view by wall mount installation and 360� surround view in deployment of ceiling mount. Therefore, users do not need to install multiple IP cameras and hence save tremendous installation and maintenance costs. Moreover, the unique design makes it the ideal solution to surveillance applications in boutiques, stores, restaurants, indoor public areas, etc.

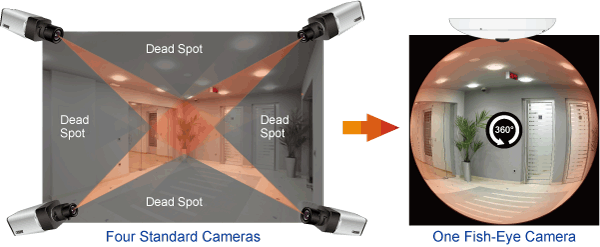

Full Surveillance with 360� Surround View
Furthermore, the ICA-8500 is a fish-eye camera that allows you to monitor all angles of a location using just one camera and thus save lots of the traditional mechanical Pan/Tilt maintenance cost. The distorted hemispherical image of the fish-eye camera will be converted into the conventional rectilinear projection. Without installing any software, you can watch live view and utilize functions such as motion detection and camera tampering through the Web interface using a web browser. Distortion correction feature of the ICA-8500 can fix the camera video so you can use e-PTZ to zoom in, zoom out, and pan across your camera�s video to survey a large area easily.

Exceptional Image Quality
Together with powerful image processing attributes like Wide Dynamic Range and Dimension Noise Reduction technology, the ICA-8500 is able to filter the intense backlight surrounding a subject and remove noises from video signal. Thus, the ICA-8500 offers an extremely sharp and clear image quality even under any challenging lighting conditions.

Day & Night Surveillance
The ICA-8500 features an automatic, removable infrared-cut filter, which enables the camera to provide color video when there is sufficient light, and black and white video in dark conditions. The camera is able to maintain clear images 24 hours a day.

Advanced Event Management
The ICA-8500 provides surveillance functions including DI/DO alarm, micro SD card support for local storage, and 2-way audio that enables audio communication between local and remote ICA-8500 sites by connecting the external microphone and speaker. It can also be applied in video conferencing via the 2-way audio features.

Motion Detection & Alarms

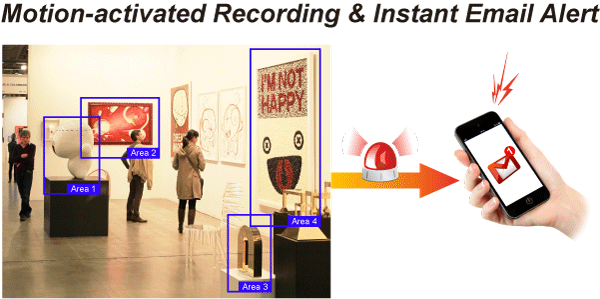

It is easy to configure motion detection windows by the web management interface of camera. Users can have total control in determining the object and sensitivity of these motion detection windows. The ICA-8500 is able to send email notifications, alerts and snapshots to any dedicated email account. This will alert the user any event in real time, no matter where the recipient may be.

Flexible Installation and Power Functionality

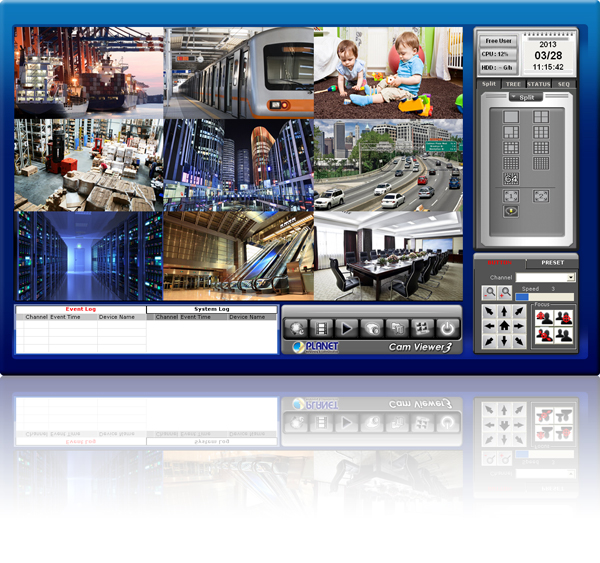

The ICA-8500 incorporates IEEE 802.3af Power over Ethernet technology and can be powered from a PoE switch or PoE injector via the network, which eliminates the need for power cables and reduces installation costs. The ICA-8500 is ONVIF-compliant and therefore interoperable with other brands in the market, greatly supporting users to integrate with their existing surveillance network. In addition, the ICA-8500 includes 64-CH central management software for efficient monitoring. The ICA-8500 is indisputably the top choice for reliable and high performance surveillance.

Camera
Image Device	1/2.5" 5 mega progressive scan CMOS image sensor
Lens	FOV=186�4�(D/H/V), F=2.8, f=1.05mm Mechanical IR-cut Filter Angle of view : 360 degrees view angle
Min Illumination	1.9 Lux @ F2.8, without IRE (Color) 0.1 Lux @ F2.8, without IRE (B/W)
Effective Pixels	1920 x 1920 pixels (4:3)
Video
Video Encoder	H.264 / M-JPEG / MPEG

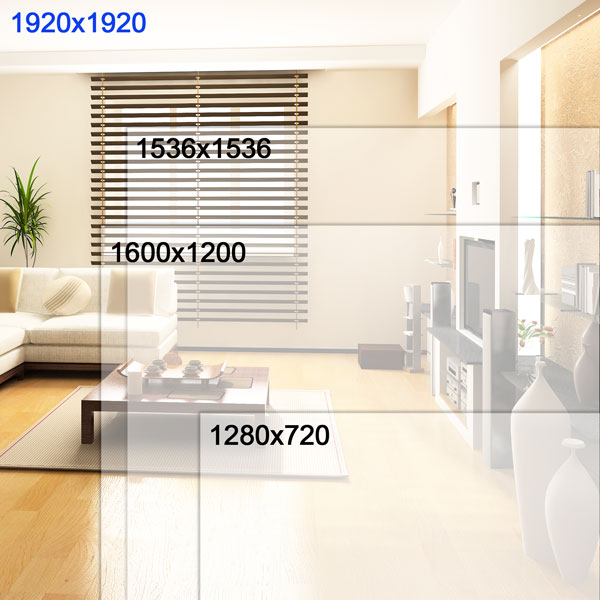

Video Resolution	H.264: 1920 x 1920 / 1920 x 1080 / 1600 x 1200 / 1440 x 1080 / 1280 x 1024 / 800 x 600 / 640 x 480 / 320 x 240 M-JPEG: 1920 x 1920 / 1920 x 1080 / 1600 x 1200 / 1440 x 1080 / 1280 x 1024 / 800 x 600 / 640 x 480 / 320 x 240 MPEG4: 1920 x 1920 / 1920 x 1080 / 1600 x 1200 / 1440 x 1080 / 1280 x 1024 / 800 x 600 / 640 x 480 / 320 x 240
Frame Rate	Up to 15fps for 1920 x 1920 resolutions
Image Setting	Day / Night Mode 2D noise reduction WDR Brightness, Saturation, Contrast, Sharpness Rotate/Mirror Text, time and date overlay
Streaming	Streaming over UDP, TCP, or HTTP M-JPEG streaming over HTTP (server push) Controllable frame rate and bandwidth Constant and variable bit rate (M-JPEG / H.264) Simultaneously multi-profile streaming ROI
Rate Control	CBR (Constant Bit Rate) VBR (Variable Bit Rate)
UI Layout	Source view (1O) 180� Single broad view (1P wall) 360� Panoramic view (1P ceiling) 360� Quad view (4R) 360� Double broad view (2P) 180� Triple view (1P2R) 360� Triple view (1P2R) Triple with Source view (102R) Quad with Source view (103R)
Audio
Audio Streaming	2-way audio
Audio Compression	RTSP: G.711 64kbps

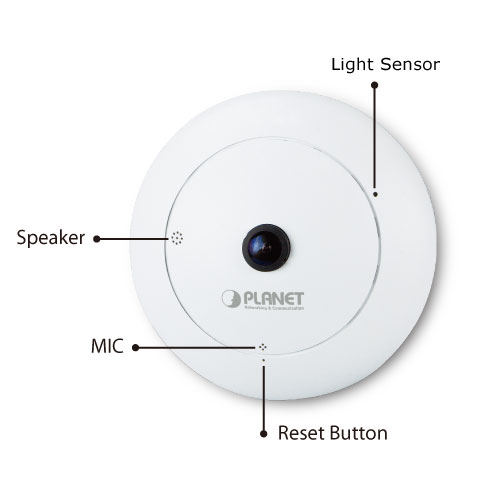

Microphone	Built-in microphone
Speaker	Built-in speaker
Network and Configuration
Network Standard	IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX
Network Protocol	HTTP, HTTPS, TCP/ IP, IPv4, UDP, SMTP, FTP, DHCP, DDNS, NTP, DNS, ARP, RTSP, RTP, UPnP, ONVIF (Profile S), Multicast
Security	Password protection, Https encryption, user access log
Users	Depending on streaming data rate used
System Integration
Application Programming Interface	Open API for software integration ONVIF
Alarm Triggers	Intelligent video motion detection
Alarm Events	File upload via FTP, e-mail or Micro SD card Notification via e-mail
Environment
Power Requirements	12V DC, 2A IEEE 802.3af Power over Ethernet Class 3
Power Consumption	Max. 6W
Operating Temperature	0 ~ 50 degrees C
Operating Humidity	20 ~ 80% (non-condensing)
Weight	324g
Dimensions (? x H)	194 x 49 mm
Emission	CE, FCC

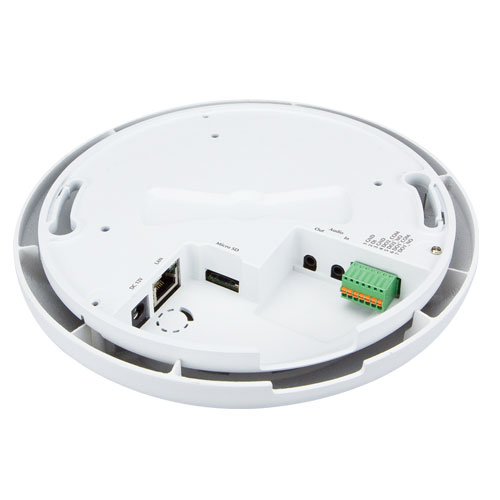

Connectors	10/100Mbps Ethernet, RJ-45 DC power jack Terminal block for 1 alarm input and 1 output Audio in Audio out Micro SD/SDHC card (max. 32GB, Class 6) Factory default reset button

订购信息
ICA-8500	5 Mega-pixel PoE Fish-Eye IP Camera
