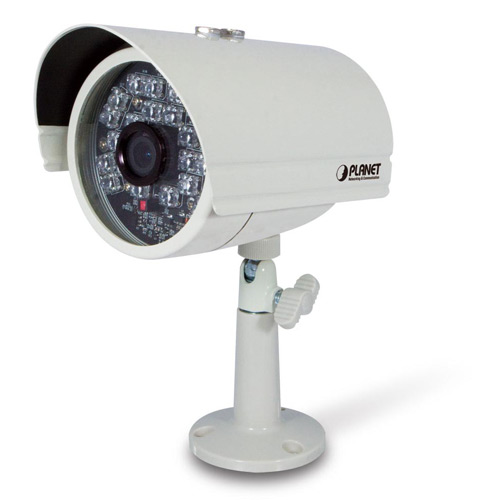

ICA-HM312

2 Mega-Pixel 25M IR Outdoor Bullet PoE IP Camera

概述
应用场景
功能特性
产品规格
下载
相关产品

High Resolution Surveillance in Day and Night

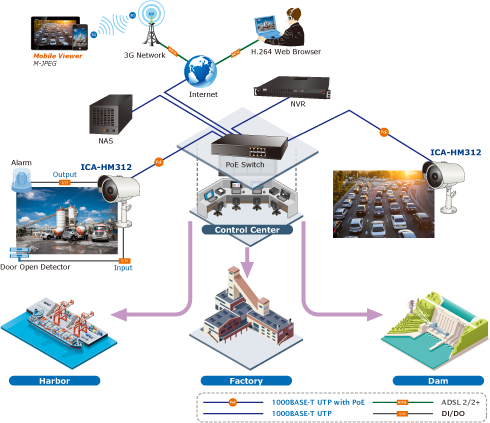

PLANET ICA-HM312 Network Camera with IR Illuminator is a high-resolution camera for the round-the-clock surveillance over IP networks. It supports H.264 and JPEG compression formats and delivers excellent picture quality in Full HD resolutions at 30 frames per second (fps). Incorporating the new CMOS image sensor, which is specially designed for surveillance applications, the ICA-HM312 provides high quality images under all lighting conditions. The IP66-rated housing protects the camera body against rain and dust, and ensures operation under extreme weather conditions, which makes it an ideal solution for outdoor applications, e.g. surveillance of buildings, roads, parking areas, garages, railway stations and airports.

Day & Night Functionality
To adapt to constantly changing lighting conditions, the ICA-HM312 comes with a removable IR-cut filter and built-in low IR illuminators, which enable the camera to provide color video when there is sufficient light, and black/white video in dark conditions. The ICA-HM312 is able to maintain clear images 24 hours a day.

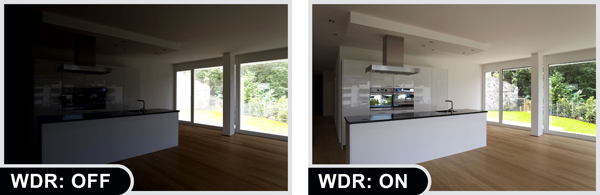

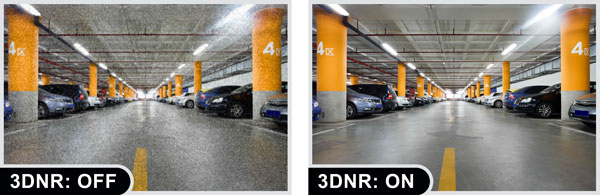

Exceptional Image Quality
Together with powerful image processing attributes like Wide Dynamic Range and 3D Digital Noise Reduction (3DNR) technology, the ICA-HM312 is able to filter the intense backlight surrounding a subject and remove noises from video signal. It brings an extremely clear and exquisite picture quality even under any challenging lighting conditions.

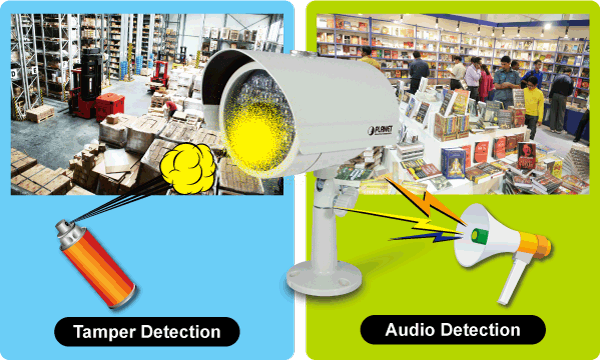

Camera Tampering and Audio Detection
Provided with three individually configurable motion detection zones, the ICA-HM312 can record video or trigger alarms and alerts when motion is detected in user-specified areas of the camera image. Also, its built-in microphone enables the system to capture the sound that is within camera�s surveillance range. The system will trigger the audio detection alarm when sounds like screams, glass breaking, etc. are detected.

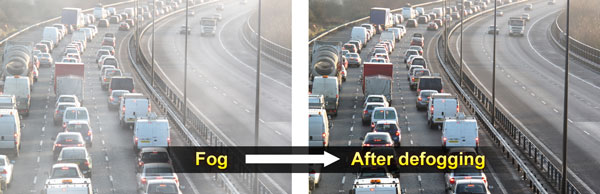

Defog Video Enhancement for Better Video Quality
Defog can be used to restore clear image in poor weather conditions such as sandstorm, raining, or fog. The visibility of the cameras can be enhanced in any weather condition.

Advanced Event Management
To enhance surveillance flexibility and event management capabilities, the ICA-HM312 supports a number of advanced features including auto-iris to avoid overexposure, and AV out to perform the two-way audio function.

Flexible Installation and Power Functionality

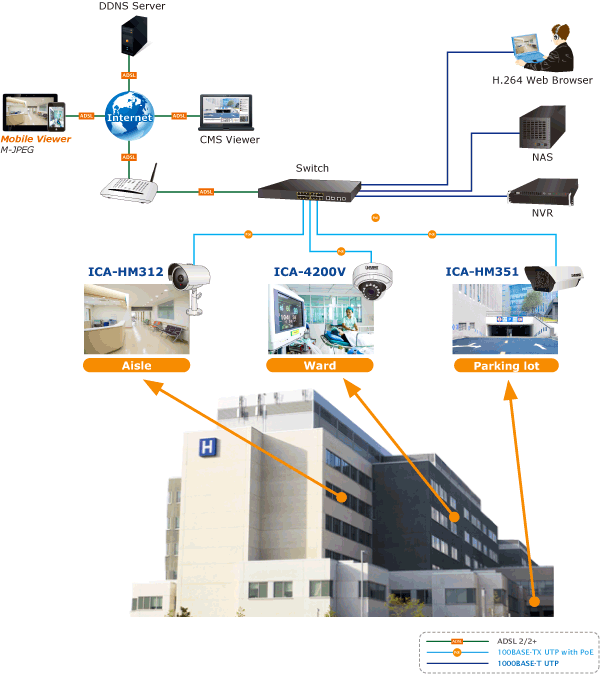

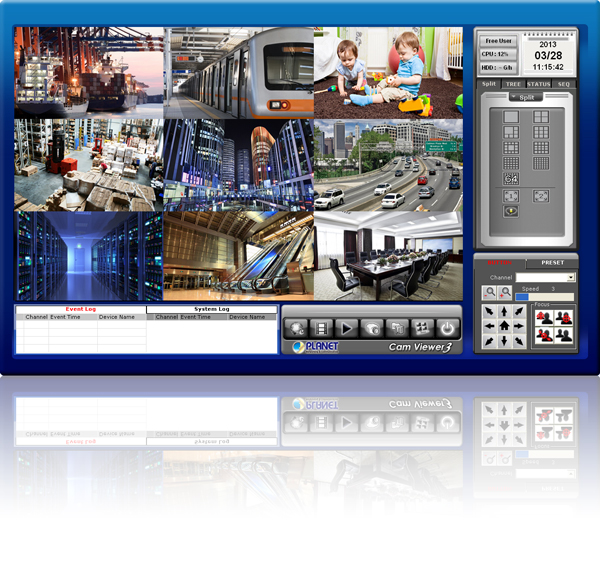

The ICA-HM312, incorporating IEEE 802.3af Power over Ethernet standard, is able to be powered via the network cable from a PoE power sourcing equipment such as PoE switch and PoE injector. It thus eliminates the need for extra power cables and reduces installation costs while increases the deployment flexibility. The ICA-HM312 is ONVIF compliant and therefore interoperable with other manufacturers� products. It also includes 64-CH central management software for ease of maintenance and remote monitoring. The ICA-HM312 is indisputably the top choice for reliable and high-performance surveillance.

Camera
Image device	1/2.7" 2 mega-pixel progressive scan CMOS sensor
Lens	3.6mm, fixed lens Mechanical IR-cut filter Angle of view: Horizontal: 74 degrees Vertical: 57 degrees
Min Illumination	0.5 Lux (Color) @ F1.2 0.1 Lux (B/W)
IR Illuminations	IR LED x 24, 850nm Built-in IR illuminators, effective up to 25 meters *The IR distance is based on the environment
Effective Pixels	1920 x 1080 pixels
Video Compression	H.264 / M-JPEG
Video Resolution	1080p / 720p / 640 x 360 / 320 x 180
Frame Rate	Up to 30fps for all resolutions
Image Setting	AE, AWB 3D noise reduction WDR Color, hue, brightness, sharpness, contrast Mirror/Flip 90o rotation De-fog Anti-false color Lens distortion correction 10 privacy masks Text, time and date overlay Overlay image on video
Streaming	Simultaneous multi-profile streaming Streaming over UDP, TCP, HTTP, or HTTPS M-JPEG streaming over HTTP (server push) Controllable frame rate and bandwidth Constant and variable bit rate (H.264) AOI ROI
Audio
Audio Streaming	Two-way audio
Audio Compression	RTSP: G.711 64kbps, G.726 32kbps
Microphone	External microphone input
Audio Output	Adjustable audio output gain
Network and Configuration
Standard	IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX
Protocol	IPv4, IPv6, TCP, UDP, HTTP, HTTPS, SMTP, FTP, NTP, DNS, DDNS, DHCP, DIPS, ARP, Bonjour, UPnP, RTSP, RTP, RTCP, IGMP, PPPoE, Samba, ICMP, SNMP, QoS
Security	Password protection, IP address filtering, HTTPS encrypted data transmission, user access log
Users	8 clients on-line monitoring at the same time
System Integration
Application Programming Interface	Open API for software integration ONVIF Compliant
Alarm Triggering	Intelligent Motion / Tampering / Audio Detection and External Input
Alarm Events	File upload via FTP, Samba to NAS, and email Notification via email, HTTP, and TCP External output activation Audio alerting output
Video Buffer	Pre- and post-alarm buffering
General
Power Requirement	12V DC, 1A IEEE 802.3af Class 3
Power Consumption	9W max.
Operating Temperature	-20 ~ 50 degrees C
Operating Humidity	5 ~ 95% (non-condensing)
Weight	900g
Dimensions (W x D x H)	86 x 81 x 97 mm
Emission	CE, FCC
Connectors	10/100 Mbps Ethernet, RJ45 DC power jack Terminal block for 1 alarm input and 1 output External mic input Audio out Composited video out (Max. resolution: D1 720 x 480 pixel)) Factory default reset button

订购信息
ICA-HM312	2 Mega-pixel 25M IR Outdoor Bullet PoE IP Camera
