Ultra-mini Full HD Fixed Dome IP Camera

首页 > 产品 > IP监控 > 迷你型IP摄像机 > ICA-4200

Print Version

ICA-4200

Ultra-mini Full HD Fixed Dome IP Camera

概述
应用场景
功能特性
产品规格
下载
相关产品

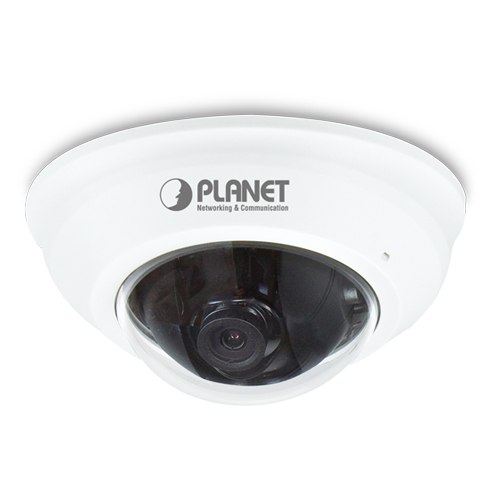

High-resolution Day and Night Surveillance
PLANET ICA-4200 Network Camera is a high-resolution camera for the round-the-clock surveillance over IP networks. It supports H.264, MPEG-4 and JPEG compression formats and delivers excellent picture quality in Full HD resolutions at 30 frames per second (fps). Incorporating the new CMOS image sensor, which is specially designed for surveillance applications, the ICA-4200 provides high quality images under all lighting conditions. It is perfect for remote and discreet monitoring of indoor areas such as stores, banks, hotels, office lobbies, and warehouses.

Exceptional Image Quality
Together with powerful image processing attributes like Wide Dynamic Range and 2D Digital Noise Reduction (2DNR) technology, the ICA-4200 is able to filter the intense backlight surrounding a subject and remove noises from video signal. It brings an extremely clear and exquisite picture quality even under any challenging lighting conditions.

Advanced Event Management
To enhance surveillance flexibility and event management capabilities, the ICA-4200 supports a number of advanced features including auto-exposure to avoid over exposure, and inputs to connect with external devices such as door sensors to trigger the event servers. Users can save consecutive videos in local storage and events on memory card and thus you never have to miss an important moment.

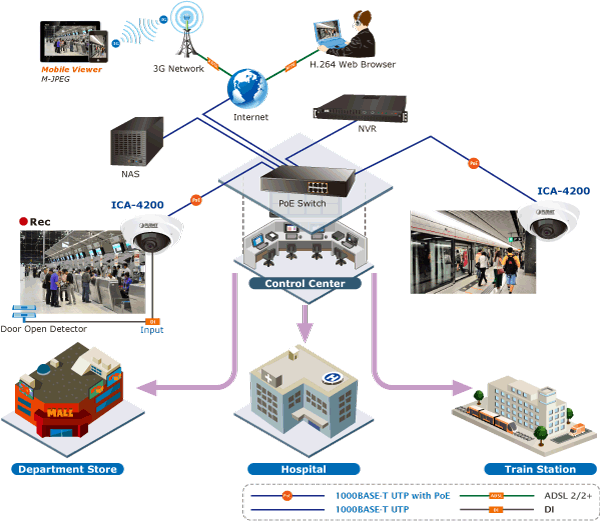

Flexible Installation and Power Functionality

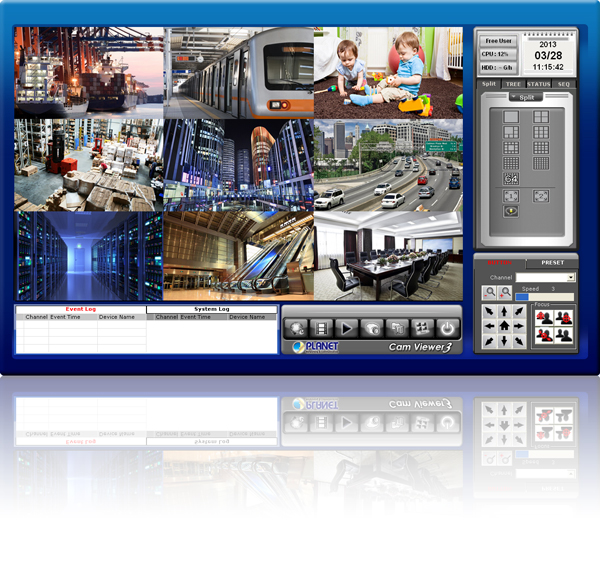

The ICA-4200, incorporating IEEE 802.3af Power over Ethernet standard, is able to be powered via the network cable from a PoE power sourcing equipment such as PoE switch and PoE injector. It thus eliminates the need for extra power cables and reduces installation costs while increases the deployment flexibility. In addition, the ICA-4200 is ONVIF compliant and therefore it is interoperable with other manufacturers� products. It also includes 64-ch central management software for ease of maintenance and remote monitoring. The ICA-4200 is indisputably the top choice for reliable and high performance surveillance.

Camera
Image device	1/2.5" 2 mega-pixel progressive scan CMOS sensor
Lens	3.6 mm fixed lens Angle of view: H: 60.79 degrees V: 36.52 degrees D: 67.88 degrees
Min. Illumination	0.5 lux @ F1.8
Effective Pixels	1920 x 1080 pixels
Video Encoder	H.264 / MPEG-4 / M-JPEG
High Resolution Mode	H.264@ 1080p MPEG4@ 1080p MJPEG@ D1
Frame Rate	Up to 30fps for all resolutions
Image Setting	Brightness, sharpness, contrast, saturation, mirror, AWB, WDR, BLC, text, time and image overlay
Streaming	Simultaneous multi-profile streaming Streaming over UDP, TCP, HTTP, or HTTPS M-JPEG streaming over HTTP Controllable frame rate and bandwidth Constant and variable bit rate (H.264)
Audio
Audio Streaming	Built-in microphone
Audio Compression	G.711
Audio Input	Adjustable audio input gain
Network and Configuration
Standard	IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3af
Protocol	TCP/IP, IPv4, IPv6, UDP, ICMP, DHCP, NTP, DNS, PLANET DDNS/PLANET Easy DDNS, SMTP, FTP, HTTP, HTTPS, Samba, PPPoE, UPnP, Bonjour, RTP, RTSP, RTCP
Security	Password protection, IP address filtering, HTTPS, QoS/DSCP
Users	5 clients on-line monitoring at the same time
System Integration
Application Programming Interface	Open API for software integration ONVIF Compliant
Alarm Triggering	Intelligent video motion detection and external input 3-zone video motion detection
Alarm Events	File upload via SD card, FTP, email and SAMBA.
Video Buffering	Configurable Pre/Post alarm buffering
General
Power Requirements	IEEE 802.3af Class 3
Power Consumption	4W max.
Operating Temperature	-10 ~ 45 degrees C
Operating Humidity	20 ~ 80% (non-condensing)
Weight	180g
Dimensions (? x L)	95 x 50 mm
Emission	CE, FCC

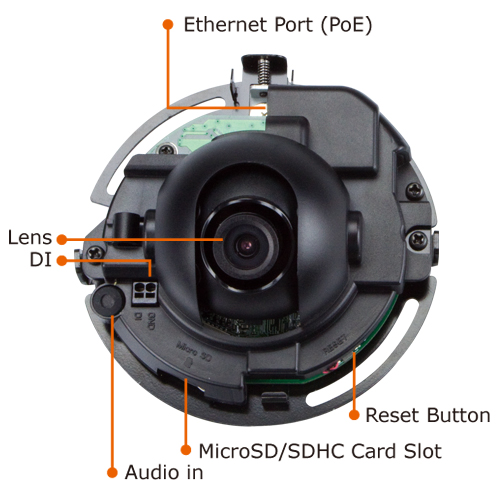

Connectors	10/100 Mbps Ethernet, RJ45 Built-in microphone Digital in Micro SD/SDHC card slot (Max. 32GB, Class 10) Factory default reset button

订购信息
ICA-4200	Ultra-mini Full HD Fixed Dome IP Camera
