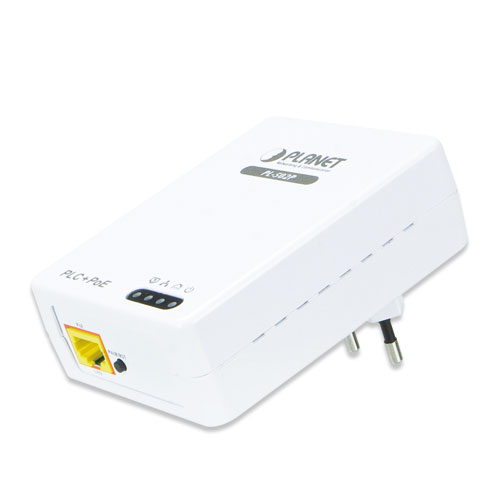

PL-502P

200M Powerline + 802.3af PoE Power Adapter

概述
应用场景
功能特性
产品规格
下载
相关产品

Extending PoE Connecting Range Easily and Eliminating Dead Spots
Powerline communication (PLC) and Power over Ethernet (PoE) are both advanced technology to simplify cabling and quickly building an Ethernet network. PLANET PL-502P is a powerline adapter acting as a PoE injector in compact housing. Based on Homeplug AV and IEEE 802.3af PoE standards, the PL-502P supports data transfer at up to 200Mbps over the existing household power circuit and provides a 10/100Mbps Ethernet port with up to 15 watts of inline power over UTP cable respectively, allows users to extend a local area network by simply plugging the PLC adapter with built-in PoE into a wall power outlet. It is ideal for powering PoE powered devices and transmitting Ethernet data in home or small office environments where only a power outlet but no network connection is available.

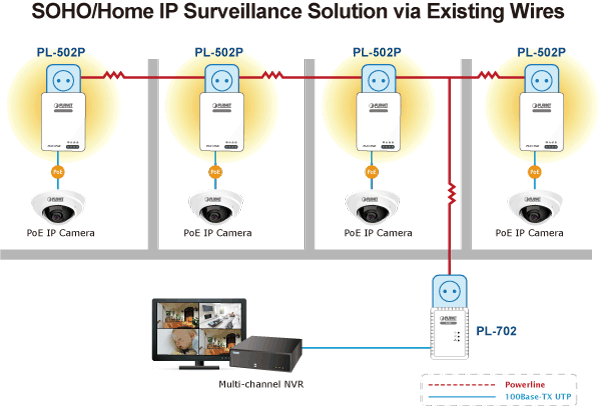

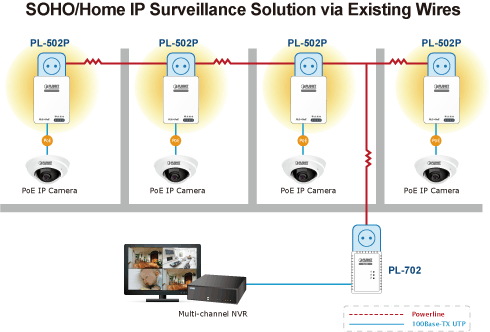

A New Level of Surveillance and Wireless Networking for Smart Homes

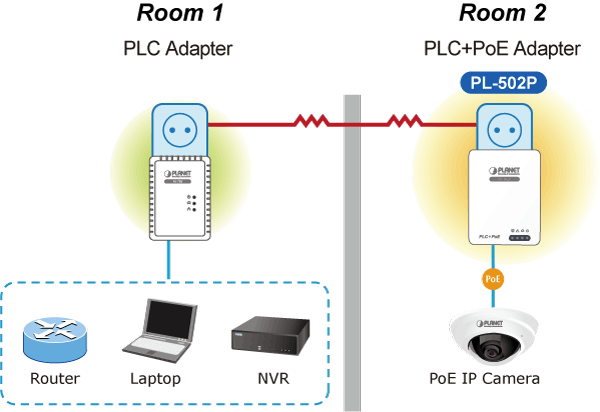

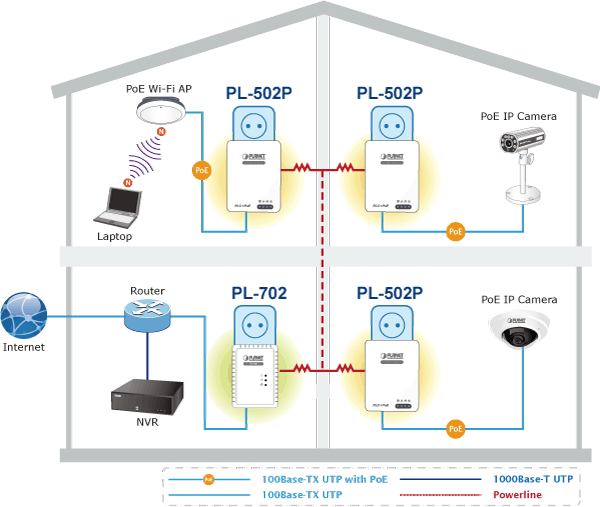

Featuring high-speed backbone connection through electrical power lines and carrying both data and PoE power over its RJ45 port simultaneously, the PL-502P helps users to utilize just power outlets and one Ethernet cable to easily deploy a network of IP surveillance, wireless internet access or voice over IP system in less than a minute. The PL-502P turns every power outlet into a PoE network connection, taking home surveillance or wireless networking to the next level.

Quick and Easy Cabling for PoE Network Deployment
Complying with IEEE 802.3af PoE standard, the PL-502P allows users to flexibly deploy standard and low powered devices to transfer data and power simultaneously through one Ethernet cable for up to 100 meters. The PL-502P frees the deployment of any 802.3af PoE compliant PD equipment from restrictions of power outlet locations and the additional AC wiring. It thus reduces cables and eliminates the need for extra electrical wires in the wall, ceiling or any unreachable place, and most of all, it reduces installation time and total cost.

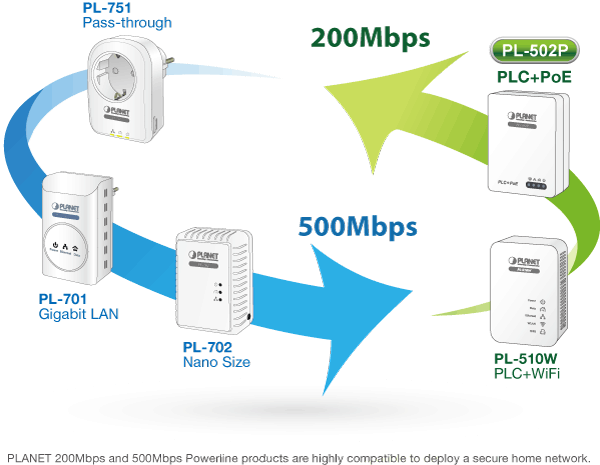

Highly Compatible and Secure Home Network

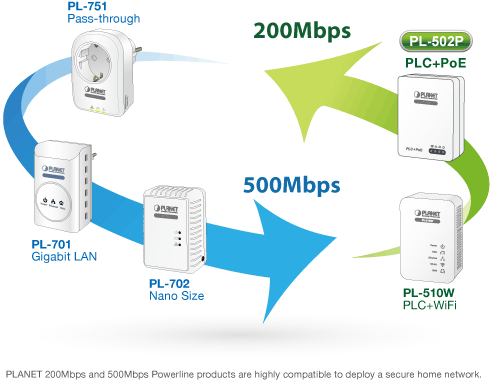

The PL-502P is compliant with IEEE 1901 and HomplugAV standards, allowing to be paired up with any PLANET PL-series powerline products or other suppliers� Homeplug AV equipment, creating a safe and secure home network environment that delivers quick and convenient access up to 300 meters over existing electrical wiring.

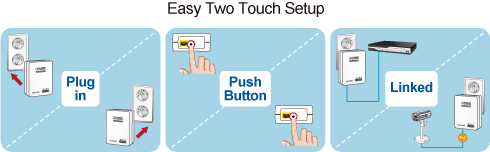

Plug and Play Installation

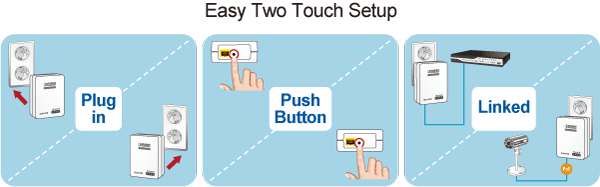

The PL-502P and PLANET powerline adapters all have a configuration push button for a convenient way of creating a secure HomePlug network without the need to use software. Simply by pushing the button on the PL-502P, users can easily set up a hassle-free secure powerline network within minutes. It also provides 128-bit AES encryption for network security and data protection.

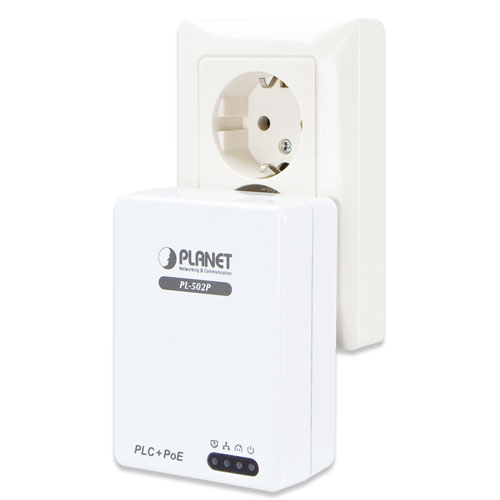

All-in-One and Compact Size Design
With concepts of "easy to install�, "plug and play" and "simple troubleshooting" for general users, the PL-502P is an all-in-one designed Powerline plus PoE port with internal power supply in a compact-sized housing. Installation is as easy as plugging into a wall power socket and connecting the Ethernet cable; the PL-502P is ready to provide high-speed network communication and PoE injector functions simultaneously.

硬件规格

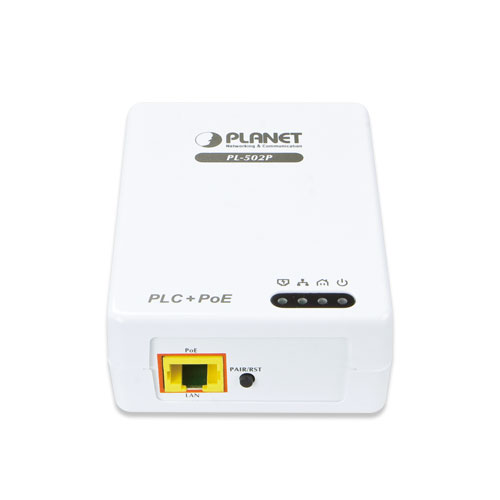

网络接口	? One 10/100BASE-TX RJ45 port with 802.3af PoE injector function ? One AC power plug with 200Mbps powerline port supporting co-existence with HomePlug 1.0
按钮	One pair sync / reset button
电源插座	EU power connector; Type C, CEE 7/16 Europlug

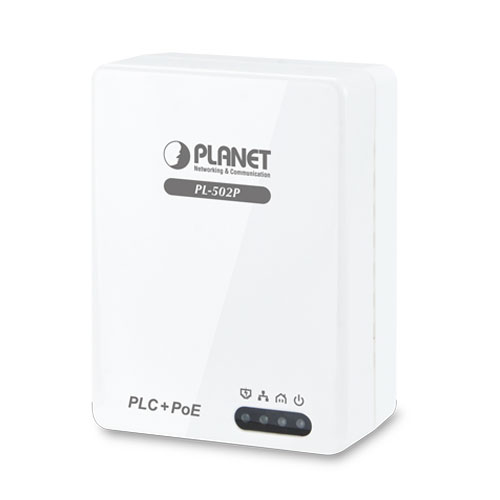

LED	? Power: On / Off / Flashing ? Powerline link: Red / Orange / Green / Flashing Green / Off ? Ethernet link: Green / Blinking / Off ? PoE In-Use: Green / Off
尺寸 (W x D x H)	73 x 34 x 99 mm
重量	140g
材料	Plastic
电源连接器	Embedded EU specifications
电源要求	100~240V AC, 50/60Hz internal
功率消耗	Full loading with PoE: Max. 16 watts / 54.59 BTU Standby mode: 0.7 watts / 2.39BTU
环境	Indoor use
电源线规格
电源线标准	IEEE 1901 / HomePlug AV
数据速率	Up to 200Mbps over Powerline and 10/100Mbps over Ethernet UTP cable
操作范围	Estimated range of 300 meters (984ft.) in wall powerlines
频段	2 ~ 28 MHz
调制方案	OFDM symbol modulation on line synchronization 1024/256/64/16/8 - QAM, QPSK, BPSK, ROBO carrier modulation
接入方式	CSMA/CA channel-access schemes
安全	128-bit AES link encryption with key management
节点	Up to 16 per powerline network
软件实用程序	Device detect / diagnostic Supports Windows XP, Vista, Window 7 and Windows 8
以太网供电
PoE 标准	IEEE 802.3af Power over Ethernet
PoE 功率输出	48V DC, max. 15.4 watts, 300mA
电源引脚分配	1/2(+) , 3/6(-)
PoE 电源预算	15 watts
距离	Up to 100 meters over Cat 5/5e UTP cable
标准
符合规定	CE mark
国际标准	IEEE 1901 HomPlug AV IEEE 802.3af Power over Ethernet IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3x flow control
环境规格
工作	Temperature: 0 ~ 40 degrees C Relative Humidity: 10 ~ 90% (non-condensing)
储存	Temperature: -20 ~ 70 degrees C Relative Humidity: 10 ~ 95% (non-condensing)

订购信息
PL-502P-EU	200M PLC + 802.3af PoE Power Adapter (EU Type directly-attached)
