PLANET Long Reach PoE solution is designed to extend IP Ethernet transmission and inject power simultaneously into a remote 802.3af/at PoE compliant powered device (PD) beyond the 100 meters distance limit of Ethernet.

Convenient PoE over UTP Extender in Harsh Environment

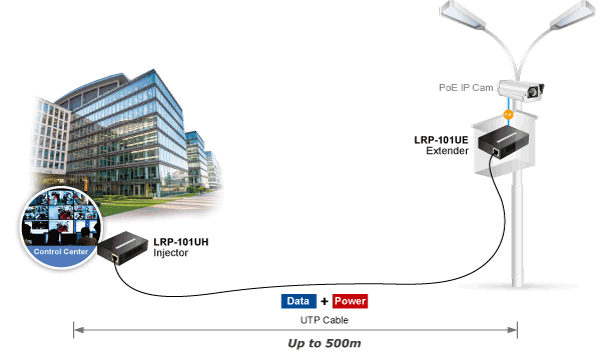

The LRP-101U-KIT, a PLANET Long Reach PoE solution, is a Single-port PoE over UTP Extender Kit featuring long range data and power transmission for distance up to 500m (1,640ft.) over UTP cable, and another 100m over Ethernet cable to remote PoE IP camera, PoE wireless AP or access control systems complied with 802.3af/at PoE. The LRP-101U-KIT provides point to point application for easy plug-n-play operation and deployment in climatically demanding environments with wide temperature range from -20 to 70 degrees C. Without the problem of power source, it makes the installation of remote PoE powered devices easier and more efficiently.

Composition of Long Reach PoE over UTP Extender Kit

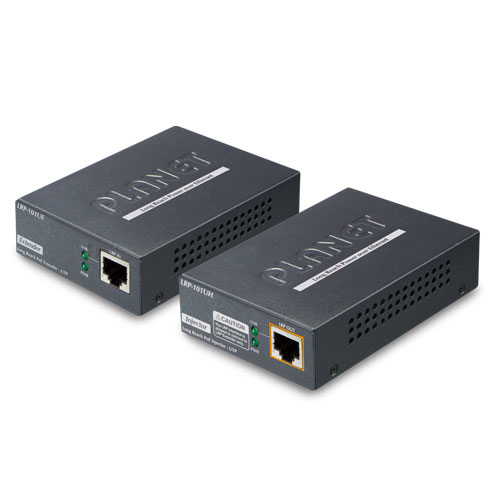

The LRP-101U-KIT consists of a Long Reach PoE injector and a Long Reach PoE extender set which can work in pair anywhere on your network infrastructure. It contains two brand-new products:
? LRP-101UH: 1-Port 10/100TX PoE PD + 1-Port UTP Long Reach PoE Injector

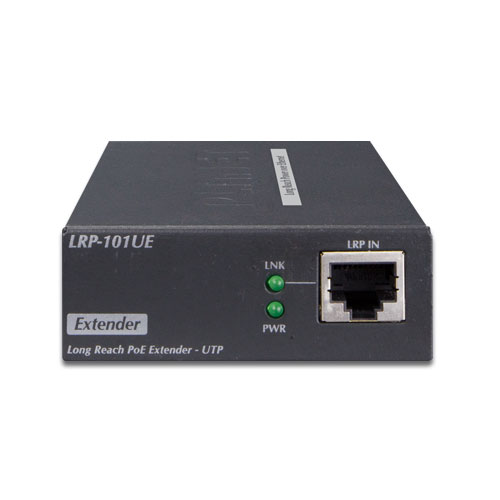

? LRP-101UE: 1-Port 10/100TX PoE PSE + 1-Port UTP Long Reach PoE Extender

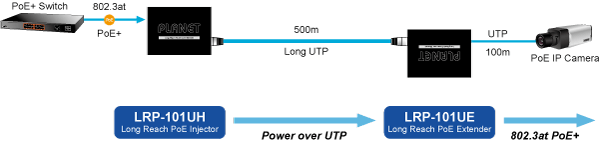

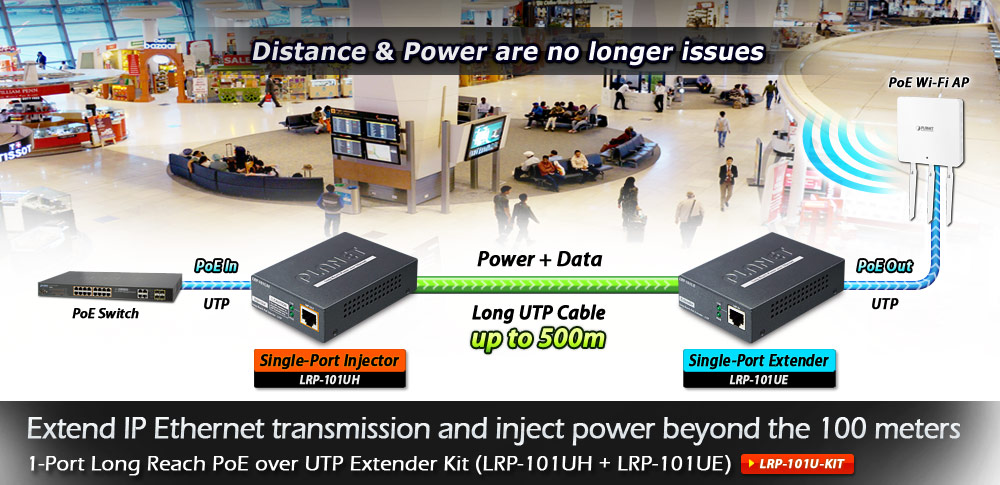

The LRP-101UH transmits data and power over UTP cable to the LRP-101UE, which can be located as far as 500m away. It will then deliver the data and power output with a maximum of up to 25 watts to a PoE PD over Ethernet cable, thus expediting the IP surveillance network or wireless LAN infrastructure in long distance. Both of the two products come in a compact but rugged metal housing. Their wall-mounted design fits easily in any space-limited location.

Functions	LRP Injector	LRP Extender
Functions	LRP-101UH	LRP-101UE
Power Input	RJ45 with 802.3at/af PoE input or power adapter with 48~56V DC in	UTP with DC power over UTP input
Power Output	UTP with DC power over UTP output	RJ45 with 802.3at/af PoE output
LAN Connection	NVR or PoE+ Ethernet switch at head-end	PoE IP camera, PoE wireless AP, PoE access control at remote site

IP Ethernet and Power over Long UTP or Twisted-pair Cable

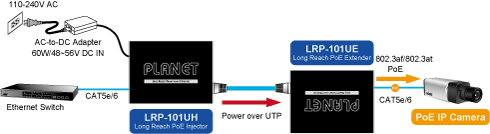

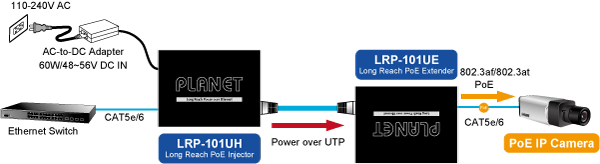

A normal UTP cable can only be extended up to 100 meters, but the LRP-101U-KIT can extend PoE networking up to 500 meters (1,640ft.) over long 4-pair UTP cable or up to 300 meters (1,000ft.) over an existing 1-pair twisted-pair cable, such as telephone wire, with stable, high-quality video transmission. It eliminates the need for additional remote site power while allowing a single power source to provide power to both LRP extenders and the PoE IP camera at long range.

Stable Operating Performance under Difficult Environments
PLANET Long Reach PoE Extender Kit is the perfect solution for distance extension for PoE or non-PoE networking for warehouses, parking lots, campuses, casinos, and many more. They can operate stably under temperature ranging from -20 to 70 degrees C to enable the users to conveniently operate the kit in almost any location.

Plug-n-play Installation
With the plug and play feature, PLANET Long Reach PoE Extender Kit can be used immediately without the need of configuration and is also compliant with all kinds of IP network protocols. Moreover, the rich diagnostic LEDs on the front panel show the operating status of the individual port and the whole system, enabling the administrator to efficiently manage the network.

硬件特性

端口

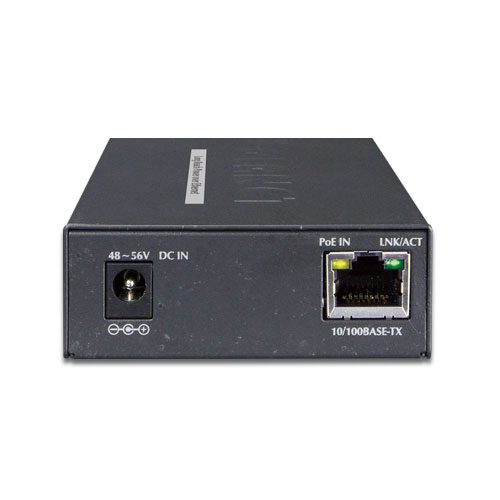

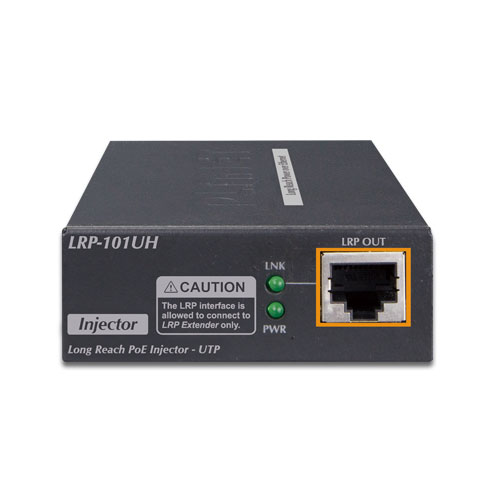

LRP-101UH
? Copper: 10/100BASE-TX RJ45, auto-negotiation/ auto-MDI/MDI-X
? Power over Ethernet Standard: IEEE 802.3at/af PoE PD (Powered Device)
? PoE Input: Supports both mid-span and end-span PSE
?Input Range: 48~56V DC
? PoE Output: -
? PoE Budget: -
? PoE Mode: -
? Data Rate: 100/100Mbps
? Cabling: Cat5e or above
? Maximum Distance: 100m
? Maximum Frame Size: 1522 bytes

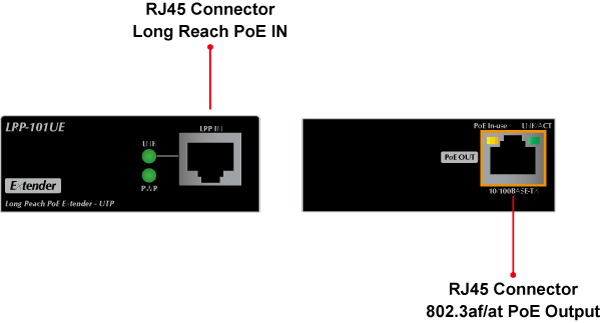

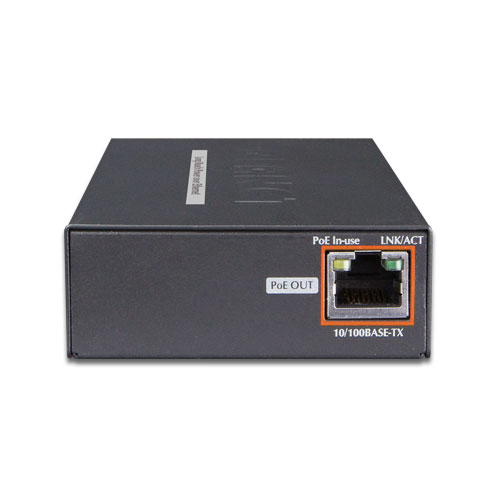

LRP-101UE
? Copper: 10/100BASE-TX RJ45, auto-negotiation/ auto-MDI/MDI-X
? Power over Ethernet Standard: IEEE 802.3at/af PoE PSE
?(Power Source Equipment)
? PoE Input: -
? PoE Output: 48~56V DC, 600mA max.
? PoE Budget: Up to 25 watts
? PoE Mode: End-span, RJ45 Pin 1/2(+), 3/6(-)
? Data Rate: 100/100Mbps
? Cabling: Cat5e or above
? Maximum Distance: 100m
? Maximum Frame Size: 1522 bytes

远距离PoE供电端口

LRP-101UH
? Connectivity: 1 x RJ45 connector, Long Reach PoE over UTP PSE
? Power Input: -
? Power Output: 41~56V DC
? Power Pin assignment:
?RJ45 Pin 1, 3, 5, 7: VCC+
?RJ45 Pin 2, 4, 6, 8: VCC-
? Cabling:
?Cat. 3, 4, 5, 5e UTP cable (100 meters, max.)
?EIA/TIA-568 100-ohm STP (100 meters, max.)
? Maximum Distance:
?Max. 100m with PoE+ output (328ft.)
?Max. 500m with PoE output (1,640ft.)
?Max. 1000m without PoE output (3,280ft.)
? Long Reach Ethernet Standard: IEEE 1901
? Modulation Type: Wavelet-OFDM
? Security: 128-bit AES encryption
? Frequency Band: 2 ~ 28 MHz
? Encryption: AES 128-bit

LRP-101UE
? Connectivity: 1 x RJ45 connector, Long Reach PoE over UTP PD
? Power Input: 37~56V DC*
? Power Output: -
? Power Pin assignment:
?RJ45 Pin 1, 3, 5, 7: VCC+
?RJ45 Pin 2, 4, 6, 8: VCC-
? Cabling: -
? Maximum Distance:
?Max. 100m with PoE+ output (328ft.)
?Max. 500m with PoE output (1,640ft.)
?Max. 1000m without PoE output (3,280ft.)
? Long Reach Ethernet Standard: IEEE 1901
? Modulation Type: Wavelet-OFDM
? Security: 128-bit AES encryption
? Frequency Band: 2 ~ 28 MHz
? Encryption: AES 128-bit

Performance**

Distance	Data Rate* (Upload / Download)	LRP-101UE 802.3af/at PoE Output Capability**
Distance	Data Rate* (Upload / Download)	LRP-101UH with 56V DC in	LRP-101UH with 30W PoE+ in
100m	94 / 94Mbps	30W	19W
200m	82 / 82Mbps	30W	18W
300m	63 / 67Mbps	30W	17W
400m	44 / 48Mbps	22W	14W
500m	30 / 30Mbps	18W	12W

LED指示灯

LRP-101UH
4 x LEDs
? PWR
? LRP LNK
? PoE IN
? LNK/ACT

LRP-101UE
4 x LEDs
? PWR
? LRP LNK
? PoE-in-use
? LNK/ACT

ESD保护

2KV DC

EFT保护

LRP-101UH
? 2KV

LRP-101UE
? -

工艺

Metal case

安装方式

Wall mount or DIN rail with optional kit

尺寸(W x D x H)

94 x 70 x 26 mm

重量

LRP-101UH
193g

LRP-101UE
190g

电源要求

LRP-101UH
? RJ45 PoE Input: 802.3at/af 48~56V DC
? DC Input: 48~56V DC

LRP-101UE
? Power over RJ45 Input: 44~56V DC

标准一致性

Standards Compliance

IEEE 802.3 10BASE-T Ethernet
IEEE 802.3u 100BASE-TX Fast Ethernet
IEEE 802.3af Power over Ethernet (802.3at Type 1)
IEEE 802.3at Power over Ethernet (802.3at Type 2)

Regulation Compliance

FCC Part 15 Class A, CE

环境

Temperature

Operating: -20~70 degrees C
Storage: -40~75 degrees C

Humidity

Operating: 5~95% (non-condensing)
Storage: 5~95% (non-condensing)

Note

*1.Upload: LRP-101UE to LRP-101UH,data stream.
?Download: LRP-101UH to LRP-101UE,data stream.
2.As there are various resistance values in the category
?of 5/5e cable, the actual data rate will vary on the quality
?of the copper wire and environment factors.
**Depending on what the DC/PoE Power Input and the length of UTP cable
?are.

订购信息
LRP-101U-KIT	Long Reach PoE over UTP Extender Kit (UTP, 500m)
