PLANET Long Reach PoE solution is designed to extend IP Ethernet transmission and inject power simultaneously into a remote 802.3af/at PoE compliant powered device (PD) beyond the 100 meters distance limit of Ethernet.

Convenient PoE over Coaxial Extender in Harsh Environment

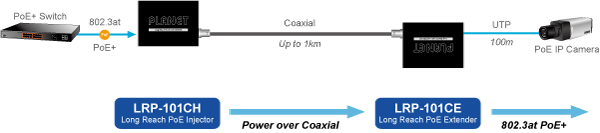

The LRP-101C-KIT, a PLANET Long Reach PoE solution, is a Single-port PoE over Coaxial Extender Kit featuring long range data and power transmission for distance up to 1,000m (3,280ft.) over coaxial cable, and another 100m over Ethernet cable to remote PoE IP camera, PoE wireless AP or access control systems complied with 802.3af/at PoE. The LRP-101C-KIT provides point to point application for easy plug-n-play operation and deployment in climatically demanding environments with wide temperature range from -20 to 70 degrees C. Without the problem of power source, it makes the installation of remote PoE powered devices easier and more efficiently.

Composition of Long Reach PoE over Coaxial Extender Kit

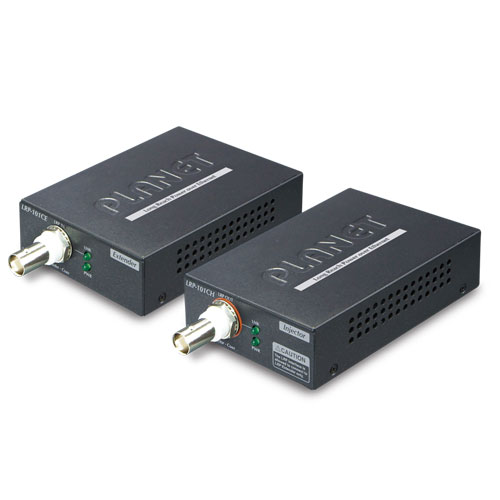

The LRP-101C-KIT consists of a Long Reach PoE injector and a Long Reach PoE extender set which can work in pair anywhere on your network infrastructure. It contains two brand-new products:

? LRP-101CH: 1-Port 10/100TX PoE PD + 1-Port Coax Long Reach PoE Injector

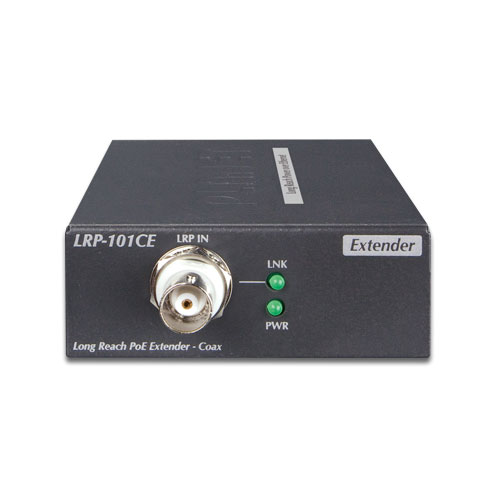

? LRP-101CE: 1-Port 10/100TX PoE PSE + 1-Port Coax Long Reach PoE Extender

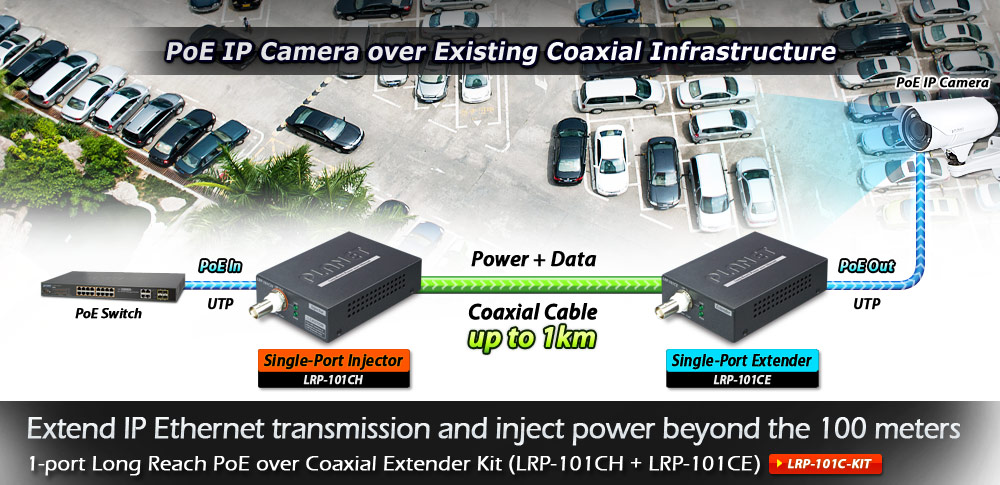

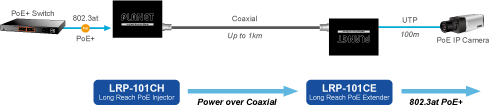

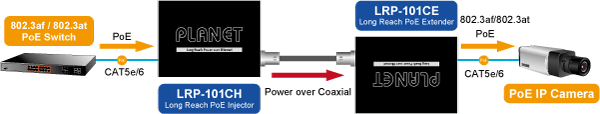

The LRP-101CH transmits data and power over coaxial cable to the LRP-101CE, which can be located as far as 1,000m away. It will then deliver the data and power output with a maximum of up to 25 watts to a PoE PD over Ethernet cable, thus expediting the IP surveillance network or wireless LAN infrastructure in long distance. Both of the two products come in a compact but rugged metal housing. Their wall-mounted design fits easily in any space-limited location.

Functions	LRP Injector	LRP Extender
Functions	LRP-101CH	LRP-101CE
Power Input	RJ45 with 802.3at/af PoE input or power adapter with 48~56V DC in	BNC with DC power over coaxial input
Power Output	BNC with DC power over coaxial output	RJ45 with 802.3at/af PoE output
LAN Connection	NVR or PoE+ Ethernet switch at head-end	PoE IP camera, PoE wireless AP, PoE access control at remote site

IP Ethernet and Power over Long Existing Coaxial Cable

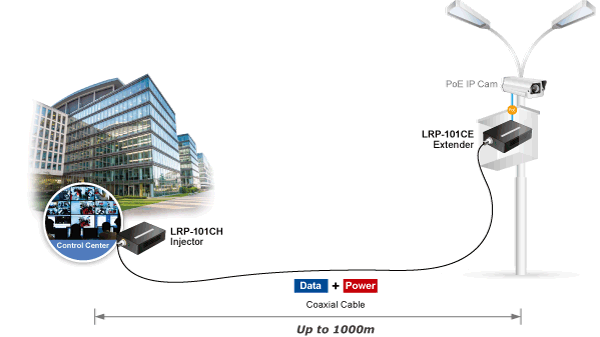

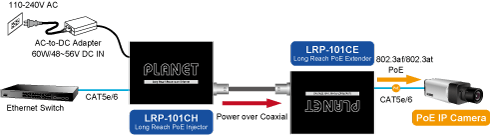

A normal UTP cable can only be extended up to 100 meters, but the LRP-101C-KIT can extend PoE networking up to 1,000 meters (3,280ft) over 75 ohm coaxial cable with stable, high-quality video transmission. It eliminates the need for additional remote site power while allowing a single power source to provide power to both LRP extenders and the PoE IP camera at long range.

Stable Operating Performance under Difficult Environments
PLANET Long Reach PoE Extender Kit is the perfect solution for distance extension for PoE or non-PoE networking for warehouses, parking lots, campuses, casinos, and many more. They can operate stably under temperature ranging from -20 to 70 degrees C to enable the users to conveniently operate the kit in almost any location.

Plug-n-play Installation

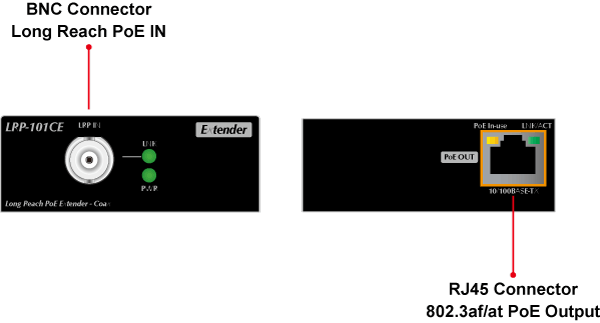

With the plug and play feature, PLANET Long Reach PoE Extender Kit can be used immediately without the need of configuration and is also compliant with all kinds of IP network protocols. Moreover, the rich diagnostic LEDs on the front panel show the operating status of the individual port and the whole system, enabling the administrator to efficiently manage the network.

硬件特性

端口

LRP-101CH
? Copper: 10/100BASE-TX RJ45, auto-negotiation / auto-MDI/MDI-X
? Power over Ethernet Standard: IEEE 802.3at/af PoE PD (Powered Device)
? PoE Input: Supports both Mid-span and End-span PSE Input Range: 48~56V DC
? PoE Output: -
? PoE Budget: -
? PoE Mode: -
? Data Rate: 100/100Mbps
? Cabling: Cat5e or above
? Maximum Distance: 100 meters
? Maximum Frame Size: 1522 bytes

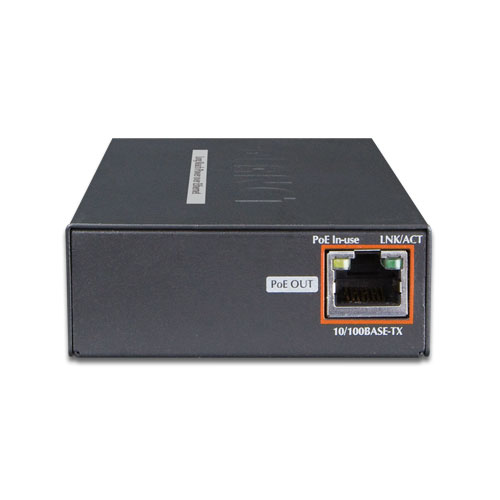

LRP-101CE
? Copper: 10/100BASE-TX RJ45, Auto-negotiation / auto-MDI/MDI-X
? Power over Ethernet Standard: IEEE 802.3at/af PoE PSE
?(Power Source Equipment)
? PoE Input: -
? PoE Output: 56V DC, 600mA max.
? PoE Budget: Up to 25 watts
? PoE Mode: End-span, RJ45 Pin 1/2(+), 3/6(-)
? Data Rate: 100/100Mbps
? Cabling: Cat5e or above
? Maximum Distance: 100 meters
? Maximum Frame Size: 1522 bytes

供电端口

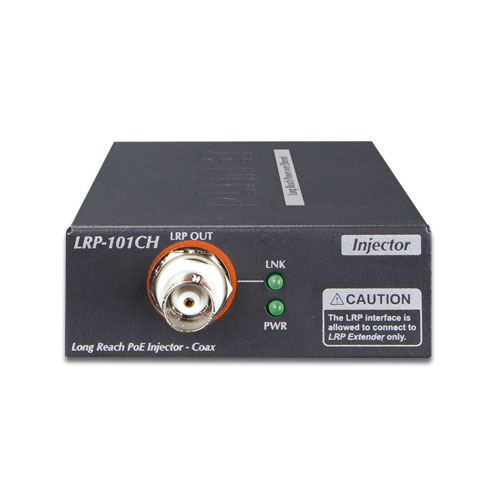

LRP-101CH
? Connectivity: 1 x BNC female connector Long Reach PoE over coaxial PSE
?(Power Source Equipment)
? Power Input: -
? Power Output: 41~56V DC
? Power Pin Assignment: ?
?BNC center pole: DC+
?BNC shield: DC-
? Cabling:
?Coaxial cable: 75 ohm
?RG-6/U cable, less than 12?/1,000ft.
?RG-59/U cable, less than 30?/1,000ft.
? Maximum Distance:
?Max. 200m with PoE+ output (656ft.)
?Max. 1000m with PoE output (1,968ft.)
?Max. 1600m without PoE output (3,937ft.)
? Long Reach Ethernet Standard: IEEE 1901
? Modulation Type: Wavelet-OFDM
? Security: 128-bit AES encryption
? Frequency Band: 2 ~ 28 MHz
? Encryption: AES 128-bit
? LRP Compatibility: LRP-101CE, 1-Port LRP Extender

LRP-101CE
? Connectivity: 1 x BNC female Long Reach PoE over coaxial PD
?(Powered Device)
? Power Input: 37~56V DC
? Power Output: -
? Power Pin Assignment: ?
?BNC center pole: DC+
?BNC shield: DC-
? Cabling:
?Coaxial cable: 75 ohm
?RG-6/U cable, less than 12?/1,000ft.
?RG-59/U cable, less than 30?/1,000ft.
? Maximum Distance:
?Max. 200m with PoE+ output (656ft.)
?Max. 1000m with PoE output (1,968ft.)
?Max. 1600m without PoE output (3,937ft.)
? Long Reach Ethernet Standard: IEEE 1901
? Modulation Type: Wavelet-OFDM
? Security: 128-bit AES encryption
? Frequency Band: 2 ~ 28 MHz
? Encryption: AES 128-bit
? LRP Compatibility: With power over coaxial input
?LRP-101CH, 1-Port LRP Injector
?LRP-822CS, 8-Port LRP over Coax Switch
?LRP-1622CS, 16-Port LRP over Coax Switch

Performance**

Distance	Data Rate* (Upload / Download)	LRP-101CE 802.3af/at PoE Output Capability**
Distance	Data Rate* (Upload / Download)	LRP-101CH with 56V DC in	LRP-101CH with 30W PoE+ in
200m	93 / 93Mbps	29W	16W
400m	93 / 93Mbps	22W	14W
600m	87 / 91Mbps	13W	10W
800m	75 / 83Mbps	10W	8W
1000m	55 / 73Mbps	8W	7W

LED指示灯

LRP-101CH
4 x LEDs
? PWR
? LRP LNK
? PoE IN
? LNK/ACT

LRP-101CE
4 x LEDs
? PWR
? LRP LNK
? PoE-in-use
? LNK/ACT

ESD 保护

2KV DC

EFT 保护

LRP-101CH
? 2KV

LRP-101CE
? -

工艺

Metal case

安装设计

Wall mount or DIN rail with optional kit

尺寸 (W x D x H)

94 x 70 x 26 mm

重量

LRP-101CH
? 200g

LRP-101CE
? 375g

电源要求

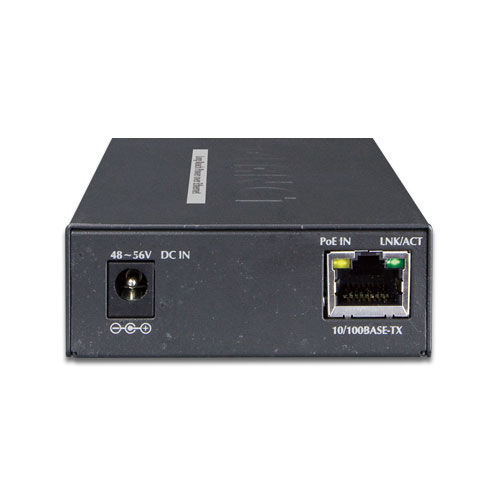

LRP-101CH
? RJ45 PoE Input: 802.3at/af 48~56V DC
? DC Input: 48~56V DC

LRP-101CE
? BNC Power over Coaxial Input: 44~56V DC

标准一致性

国际标准

IEEE 802.3 10BASE-T Ethernet
IEEE 802.3u 100BASE-TX Fast Ethernet
IEEE 802.3af Power over Ethernet (802.3at Type 1)
IEEE 802.3at Power over Ethernet (802.3at Type 2)

遵从规章

FCC Part 15 Class A, CE

环境

温度

Operating: -20~70 degrees C
Storage: -40~75 degrees C

湿度

Operating: 5~95% (non-condensing)
Storage: 5~95% (non-condensing)

Note

*1.Upload: LRP-101CE to LRP-101CH,data stream.
?Download: LRP-101CH to LRP-101CE,data stream.
2.As there are various resistance values in the category of RG-59/U or
?RG-6/U cable,the actual data rate will vary on the quality of the copper
?wire and environment factors.
**Depending on what the DC/PoE Power Input and the length of coaxial
?cable are.

订购信息
LRP-101C-KIT	Long Reach PoE over Coaxial Extender Kit (Coaxial, 1km)
